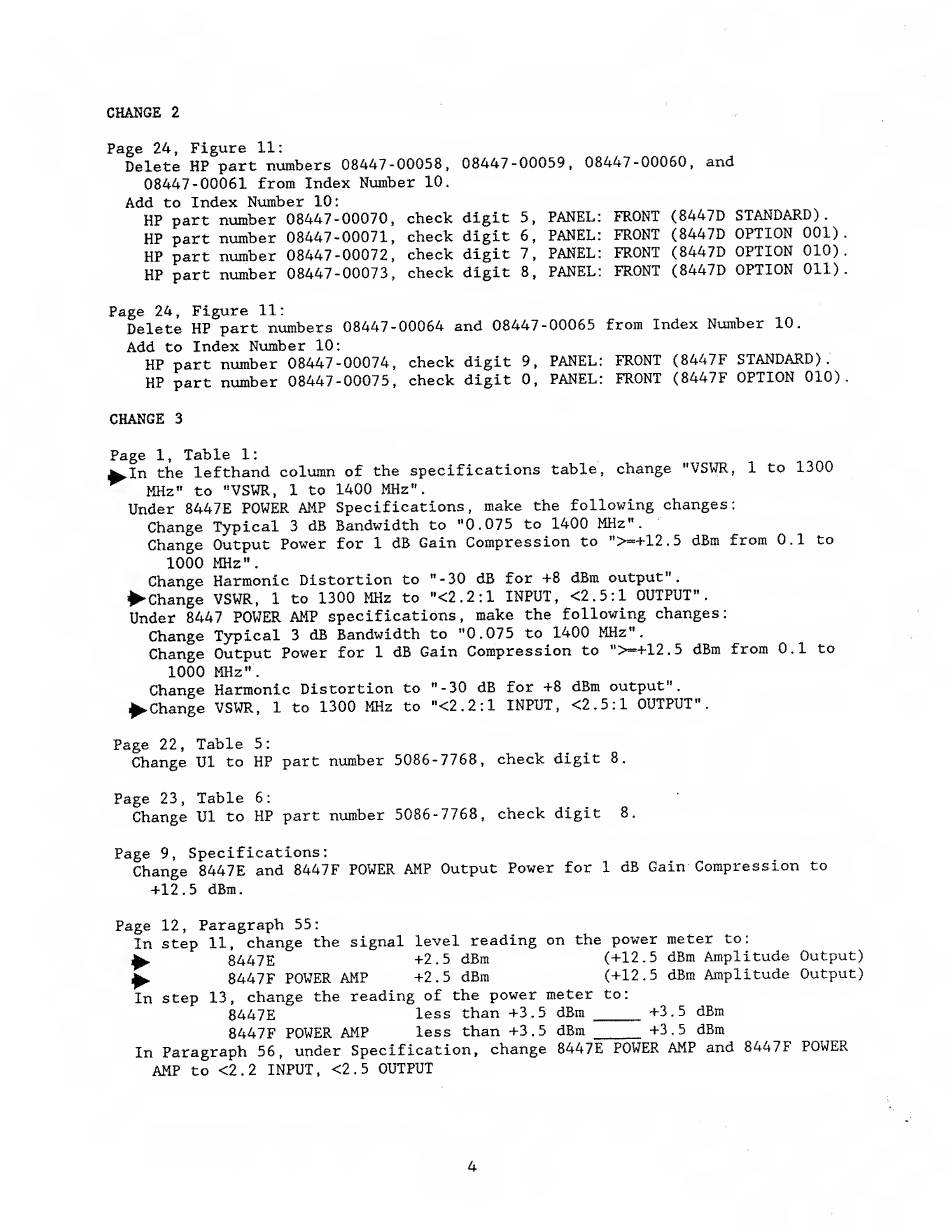

CHANGE 2
Page 24, Figure 11:
Delete HP part numbers 08447-00058, 08447-00059, 08447-00060, and
08447-00061 from Index Number 10.
Add to Index Number 10:
HP part number 08447-00070, check digit 5, PANEL: FRONT (8447D STANDARD).
HP part number 08447-00071, check digit 6, PANEL: FRONT (8447D OPTION 001).
HP part number 08447-00072, check digit 7, PANEL: FRONT (8447D OPTION 010).
HP part number 08447-00073, check digit 8, PANEL: FRONT (8447D OPTION Oil).
Page 24, Figure 11:
Delete HP part numbers 08447-00064 and 08447-00065 from Index Number 10.
Add to Index Number 10:
HP part number 08447-00074, check digit 9, PANEL: FRONT (8447F STANDARD).
HP part number 08447-00075, check digit 0, PANEL: FRONT (8447F OPTION 010).
CHANGE 3
Page 1, Table 1:
^.In the lefthand column of the specifications table, change "VSWR, 1 to 1300
^ MHz'* to "VSWR, 1 to 1400 MHz".
Under 8447E POWER AMP Specifications, make the following changes:
Change Typical 3 dB Bandwidth to "0.075 to 1400 MHz".
Change Output Power for 1 dB Gain Compression to ">=4-12.5 dBm from 0.1 to
1000 MHz".
Change Harmonic Distortion to "-30 dB for +8 dBm output".
► Change VSWR, 1 to 1300 MHz to "<2.2:1 INPUT, <2.5:1 OUTPUT".
Under 8447 POWER AMP specifications, make the following changes:
Change Typical 3 dB Bandwidth to "0.075 to 1400 MHz".
Change Output Power for 1 dB Gain Compression to ">=+12.5 dBm from 0.1 to
1000 MHz".
Change Harmonic Distortion to "-30 dB for +8 dBm output".
^.Change VSWR, 1 to 1300 MHz to "<2.2:1 INPUT, <2.5:1 OUTPUT".
Page 22, Table 5:
Change Ul to HP part number 5086-7768, check digit 8.
Page 23, Table 6:
Change Ul to HP part number 5086-7768, check digit 8.
Page 9, Specifications:
Change 8447E and 8447F POWER AMP Output Power for 1 dB Gain Compression to
+12.5 dBm.
Page 12, Paragraph 55:
In step 11, change the signal level reading on the power meter to:
^
8447E +2.5 dBm (+12.5 dBm Amplitude Output)
^ 8447F POWER AMP +2.5 dBm (+12.5 dBm Amplitude Output)
In step 13, change the reading of the power meter to:
8447E less than +3.5 dBm _ +3.5 dBm
8447F POWER AMP less than +3.5 dBm _ +3.5 dBm
In Paragraph 56, under Specification, change 8447E POWER AMP and 8447F POWER
AMP to <2.2 INPUT, <2.5 OUTPUT
