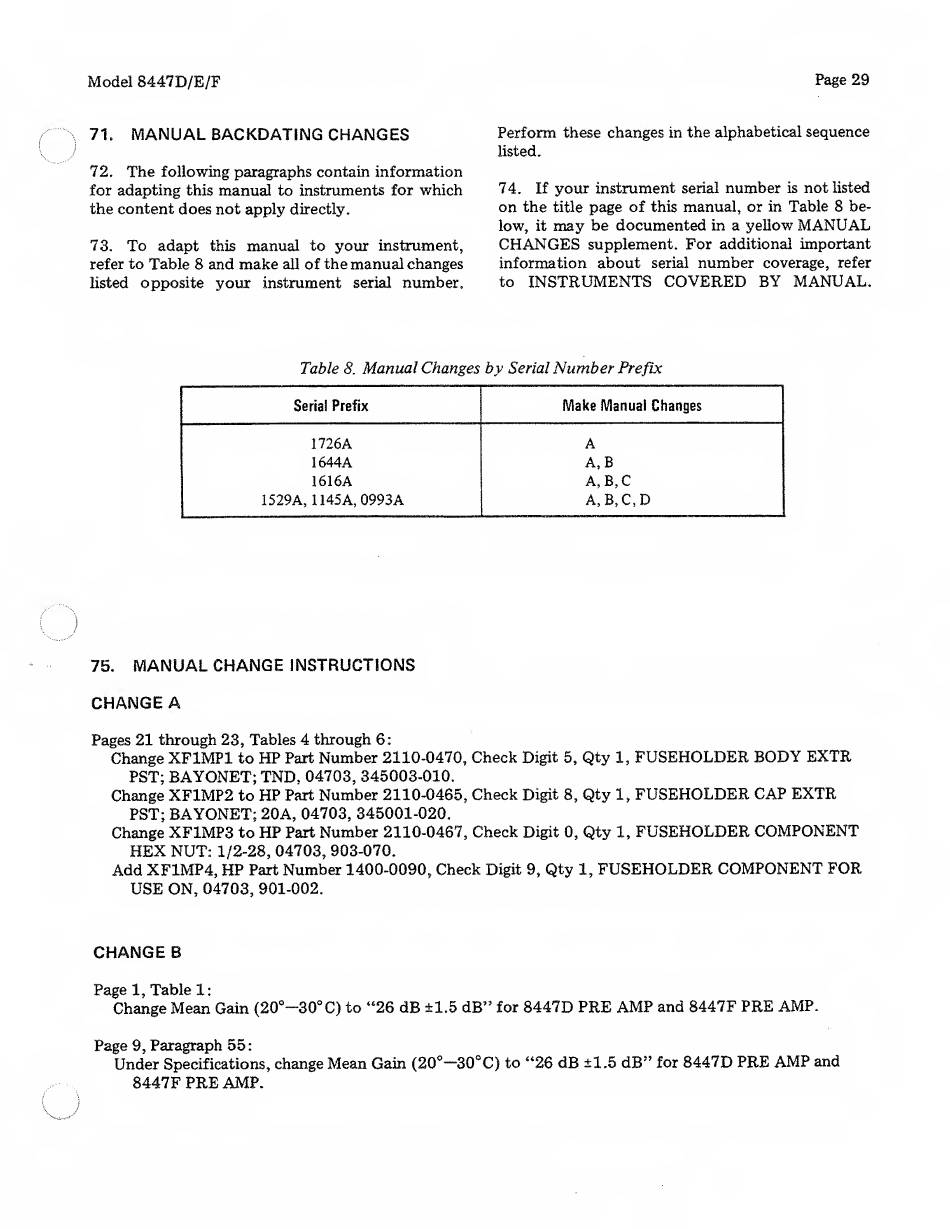

Model 8447D/E/F
Page 29
71. MANUAL BACKDATING CHANGES
72. The following paragraphs contain information
for adapting this manual to instruments for which
the content does not apply directly.
73. To adapt this manual to your instrument,
refer to Table 8 and make all of the manual changes
listed opposite your instrument serial number.
Perform these changes in the alphabetical sequence
listed.
74. If your instrument serial number is not listed
on the title page of this manual, or in Table 8 be¬
low, it may be documented in a yellow MANUAL
CHANGES supplement. For additional important
information about serial number coverage, refer
to INSTRUMENTS COVERED BY MANUAL.
Table 8. Manual Changes by Serial Number Prefix
Serial Prefix
Make Manual Changes
1726A A
1644A A, B
1616A A. B, C
1529A, 1145A, 0993A A, B, C, D
75. MANUAL CHANGE INSTRUCTIONS
CHANGE A
Pages 21 through 23, Tables 4 through 6:
Change XF1MP1 to HP Part Number 2110-0470, Check Digit 5, Qty 1, FUSEHOLDER BODY EXTR
PST; BAYONET; TND, 04703, 345003-010.
Change XF1MP2 to HP Part Number 2110-0465, Check Digit 8, Qty 1, FUSEHOLDER CAP EXTR
PST; BAYONET; 20A, 04703, 345001-020.
Change XF1MP3 to HP Part Number 2110-0467, Check Digit 0, Qty 1, FUSEHOLDER COMPONENT
HEX NUT: 1/2-28, 04703, 903-070.
Add XF1MP4, HP Part Number 1400-0090, Check Digit 9, Qty 1, FUSEHOLDER COMPONENT FOR
USE ON, 04703, 901-002.
CHANGE B
Page 1, Table 1:
Change Mean Gain (20°-30°C) to "26 dB ±1.5 dB" for 8447D PRE AMP and 8447F PRE AMP.
Page 9, Paragraph 55:
Under Specifications, change Mean Gain (20°—30°C) to "26 dB ±1.5 dB" for 8447D PRE AMP and
8447F PRE AMP.
