Model 8447D/E/F

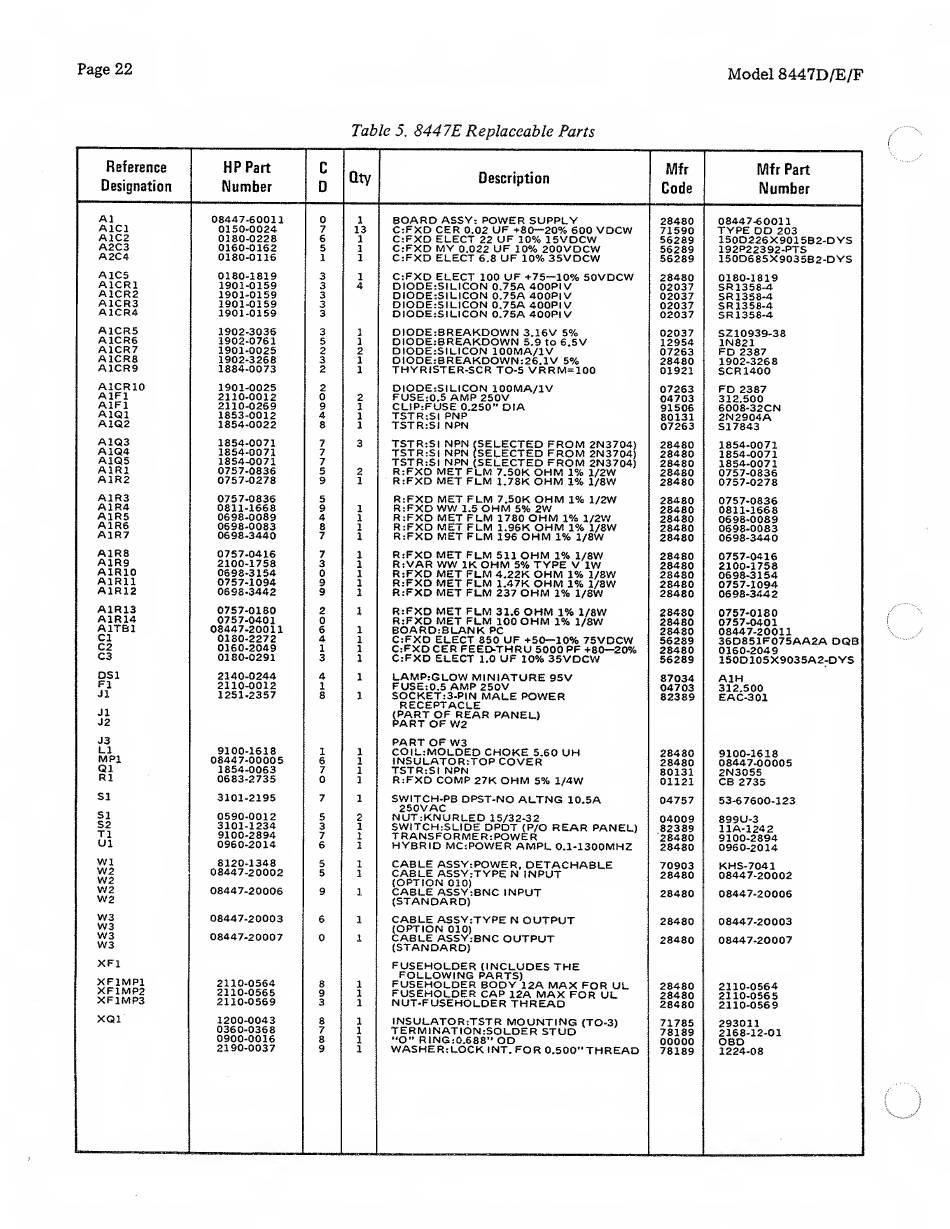

Table 5, 8447E Replaceable Parts
Reference
Designation
HP Part
Number
c
D
Qty Description ■ j
Mfr Part
Number
A1
08447-60011
i
BOARD ASSY: POWER SUPPLY
28480 08447-60011
A1C1 0150-0024
13 C:FXD CER 0.02 UF +80—20% 600 VDCW
71590 TYPE DD 203
A1C2
0180-0228
1 C:FXD ELECT 22 UF 10% 15VDCW
56289 150D226X9015B2-DYS
A2C3
0160-0162
1 C:FXD MY 0.022 UF 10% 200VDCW
56289 192P22392-PTS
A2C4
0180-0116 1
C:FXD ELECT 6.8 UF 10% 35VDCW 56289
150D685X9035B2-DYS
A1C5 0180-1819 3
1
C:FXD ELECT 100 UF +75-10% 50VDCW 28480 0180-1819
A1CR1
1901-0159 3 4
DIODEiSILICON 0.75A 400P1V 02037 SR 1358-4
A2CR2
1901-0159 3
DIODE:SiLICON 0.75A 400PIV
02037 SR1358-4
A1CR3 1901-0159
3 DiODE:SfLtCON 0.75A 400PIV
02037 SR 1358-4
A1CR4
1901-0159 3 DIODE:SILICON 0.75A 400PIV
02037 SR 1358-4
A1CR5
1902-3036 3
1 DIODE:BREAKDOWN 3.16V 5% 02037
SZ10939-38
A1CR6 1902-0761 5 1
DtODE:BREAKDOWN 5.9 to 6.5V
12954 1N821
A1CR7
1901-0025 2 2 DIODE:SILICON 100MA/1V
07263 FD 2387
A ICRS
1902-3268 3 1 DIODE:BREAKDOWN:26.1V 5%
28480 1902-3268
A1CR9
1884-0073 2
1 THYR1STER-SCR TO-5 VRRM=100
01921 SCR 1400
A1CR10
1901-0025 2 DIOD£:SiLICON 100MA/1V
07263 FD 2387
A 1F1
2110-0012 0 2 FUSE:0.5 AMP 250V
04703 312.500
A1F1
2110-0269 9
1 CL!P:FUSE 0.250" DIA
91506 6008-32CN
A1Q1
1853-0012
4
1 TSTR:SI PNP
80131 2N2904A
A1Q2
1854-0022 8 1 TSTR.-SI NPN
07263
S17843
A1Q3
1854-0071 7
3 TSTR:SI NPN (SELECTED FROM 2N3704)
28480 1854-0071
A1Q4 1854-0071 7
TSTR :SI NPN (SELECTED FROM 2N37Q4)
28480 1854-0071
A1Q5
1854-0071 7
TSTRtSi NPN (SELECTED FROM 2N3704)
28480 1854-0071
A1R1
0757-0836 5
2 R:FXD MET Fl_M 7.50K OHM 1% 1/2W
28480 0757-0836
A 2 R 2
0757-0278 9 1 R :FXD MET FLM 1.78K OHM 1% 1/8W
28480 0757-0278
A1R3
0757-0836 5 R: FXD MET FLM 7.50K OHM 1% 1/2W
28480 0757-0836
A1R4
0811-1668 9
1
R:FXD WW 1.5 OHM 5% 2W
28480 0811-1668
A1R 5
0698-0089 4
1 R :FXD MET FLM 1780 OHM 1% 1/2W
28480
0698-0089
A1R6 06 98-0083 8
1 R :FXD MET FLM 1.96K OHM 1% 1/8W
28480
0698-0083
A1R 7
0698-3440
7
1 R:FXD MET FLM 196 OHM 1% 1/8W
28480 0698-3440
A1R8
0757-0416 7
1 R:FXD MET FLM 511 OHM 1% 1/8W
28480
0757-0416
A1R9
2100-1758 3 1 R:VAR WW IK OHM 5% TYPE V 1W
28480 2100-1758
A1R10 06 98-3154
0
1 R:FXD MET FLM 4.22K OHM 1% 1/8W
28480 0698-3154
A1R 11
0757-1094 9
1 R:FXD MET FLM 1.47K OHM 1% 1/8W
28480
0757-1094
A1R12
0698-3442
1 R:FXD MET FLM 237 OHM 1% 1/8W
28480 0698-3442
AIR 13
0757-0180
1
RiFXD MET FLM 31.6 OHM 1% 1/8W
28480 0757-0180
A1R14
0757-0401
R:FXD MET FLM 100 OHM 1% 1/8W 28480
0757-0401
A1TB1
08447-20011
1 BOARD:BLANK PC
28480
08447-20011
Cl
0180-2272 1
C:FXD ELECT 850 UF +50—10% 75VDCW
56289 36D851F075AA2A DQB
C2
0160-2049
1 C:FXD CER FEED-THRU 5000 PF +80—20%
28480 0160-2049
C3
0180-0291
1 C:FXD ELECT 1.0 UF 10% 35VDCW
56289
150D105X9035A2-DYS
DS1
2140-0244 4
1 LAMP:GLOW MINIATURE 95V
87034 A1H
Fl
2110-0012 1
FUSE:0.5 AMP 250V
04703 312.500
J1
J1
J2
J3
1251-2357
8
1 SOCKET:3-PIN MALE POWER
RECEPTACLE
(PART OF REAR PANEL)
PART OF W2
PART OF W3
82389 EAC-301
LI
9100-1618 1 1
COIL .-MOLDED CHOKE 5.60 UH
28480
9100-1618
MP1
08447-00005 6 1
INSULATOR:TOP COVER
28480 08447-00005
Q1
1854-0063 7
1 TST R: S 1 NPN
80131 2N3055
R 1
0683-2735 1
R :FXD COMP 27K OHM 5% 1/4W
01121 CB 2735
SI
3101-2195
1
SWITCH-PB DPST-NO ALTNG 10.5A
250VAC
04757
53-67600-123
SI
0590-0012
2
NUTiKNURLED 15/32-32 04009
899U-3
S2
3101-1234
1
SWITCH:SL!DE DPDT (P/O REAR PANEL)
82389
11A-1242
T1
9100-2894
mM
1
TRANS FORMER: POWER
28480 9100-2894
U1
0960-2014
mm
1
HYBRID MC:POWE R AMPL 0.1-1300MHZ
28480 0960-2014
W1
8120-1348 1
CABLE ASSY:POWER, DETACHABLE
70903 KHS-7041
W2
W2
08447-20002
B9
1 CABLE ASSY:TYPE N INPUT
(OPTION 010)
28480
08447-20002
W2
W2
08447-20006 9 1
CABLE ASSY:BNC INPUT
(STANDARD)
28480 08447-20006
W3
W3
08447-20003
6 1 CABLE ASSY;TYPE N OUTPUT
(OPTION 010)
28480 08447-20003
W3
W3
XF1
08447-20007 0 1
CABLE ASSY:BNC OUTPUT
(STANDARD)
FUSEHOLDER (INCLUDES THE
FOLLOWING PARTS)
28480 08447-20007
XF1MP1
2110-0564
8
1 FUSEHOLDER BODY 12A MAX FOR UL
28480 2110-0564
XF1MP2
2110-0565
9 1 FUSEHOLDER CAP 12A MAX FOR UL
28480 2110-0565
X F1M P3
2110*0569 3
1
NUT-FUSEHOLDER THREAD
28480 2110-0569
XQ1
1200-0043
8 1
1 NSULATOR:TSTR MOUNTING (TO-3)
71785
293011
0360-0368 7 1
TERMINATION:SOLDER STUD
78189 2168-12-01
0900-0016 8
1 "O" R ING :0.688" OD
00000 OBD
2190-0037
9 1
WASHERtLOCK INT. FOR 0.500"THREAD
78189 1224-08
