HP 8447D Operation And Service Manual page 10

Page 6
Model S447D/E/F

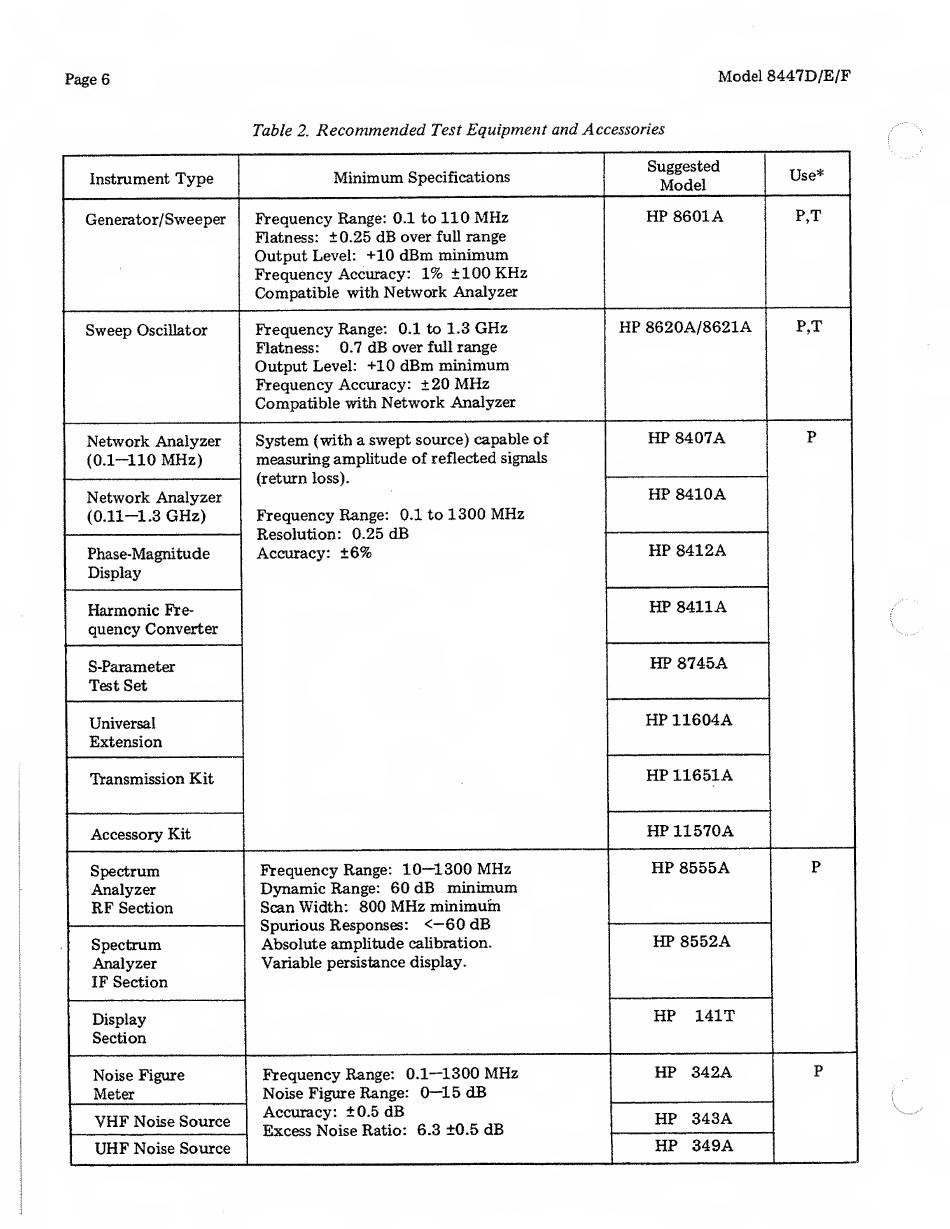

Table 2. Recommended Test Equipment and Accessories
Instrument Type
Minimum Specifications
Suggested
Model
Use*
Generator/Sweeper
Frequency Range: 0.1 to 110 MHz
Flatness: ±0.25 dB over full range
Output Level: +10 dBm minimum
Frequency Accuracy: 1% +100 KHz
Compatible with Network Analyzer
HP 8601A
P,T
Sweep Oscillator
Frequency Range: 0.1 to 1.3 GHz
Flatness: 0.7 dB over full range
Output Level: +10 dBm minimum
Frequency Accuracy: +20 MHz
Compatible with Network Analyzer
HP 8620A/8621A P,T
Network Analyzer
(0.1-110 MHz)
System (with a swept source) capable of
measuring amplitude of reflected signals
(return loss).
Frequency Range: 0.1 to 1300 MHz
Resolution: 0.25 dB
Accuracy: ±6%
HP 8407A
P
Network Analyzer
(0.11-1.3 GHz)
HP 8410A
Phase-Magnitude
Display
HP 8412A
Harmonic Fre¬
quency Converter
HP 8411A
S-Parameter
Test Set
HP 8745A
Universal
Extension
HP 11604A
Transmission Kit
HP 11651A
Accessory Kit
HP 11570A
Spectrum
Analyzer
RF Section
Frequency Range: 10—1300 MHz
Dynamic Range: 60 dB minimum
Scan Width: 800 MHz minimum
Spurious Responses: <-60 dB
Absolute amplitude calibration.
Variable persistance display.
HP 8555A
P
Spectrum
Analyzer
IF Section
HP 8552A
Display
Section
HP 141T
Noise Figure
Meter
Frequency Range: 0.1—1300 MHz
Noise Figure Range: 0—15 dB
HP 342A
P
VHF Noise Source
Accuracy: ±0.5 dB
Excess Noise Ratio: 6.3 +0.5 dB
HP 343A
UHF Noise Source
HP 349A
