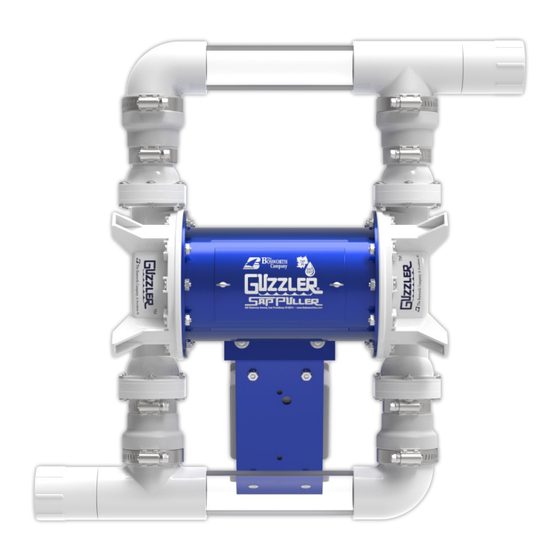

Bosworth Guzzler G2-0501N Operator's Manual
120 vac sappuller double diaphragm pump
Hide thumbs
Also See for Guzzler G2-0501N:
- Operator's manual (20 pages) ,
- Operator's manual (12 pages) ,
- Operator's manual (20 pages)
Table of Contents
Related Manuals for Bosworth Guzzler G2-0501N
Summary of Contents for Bosworth Guzzler G2-0501N

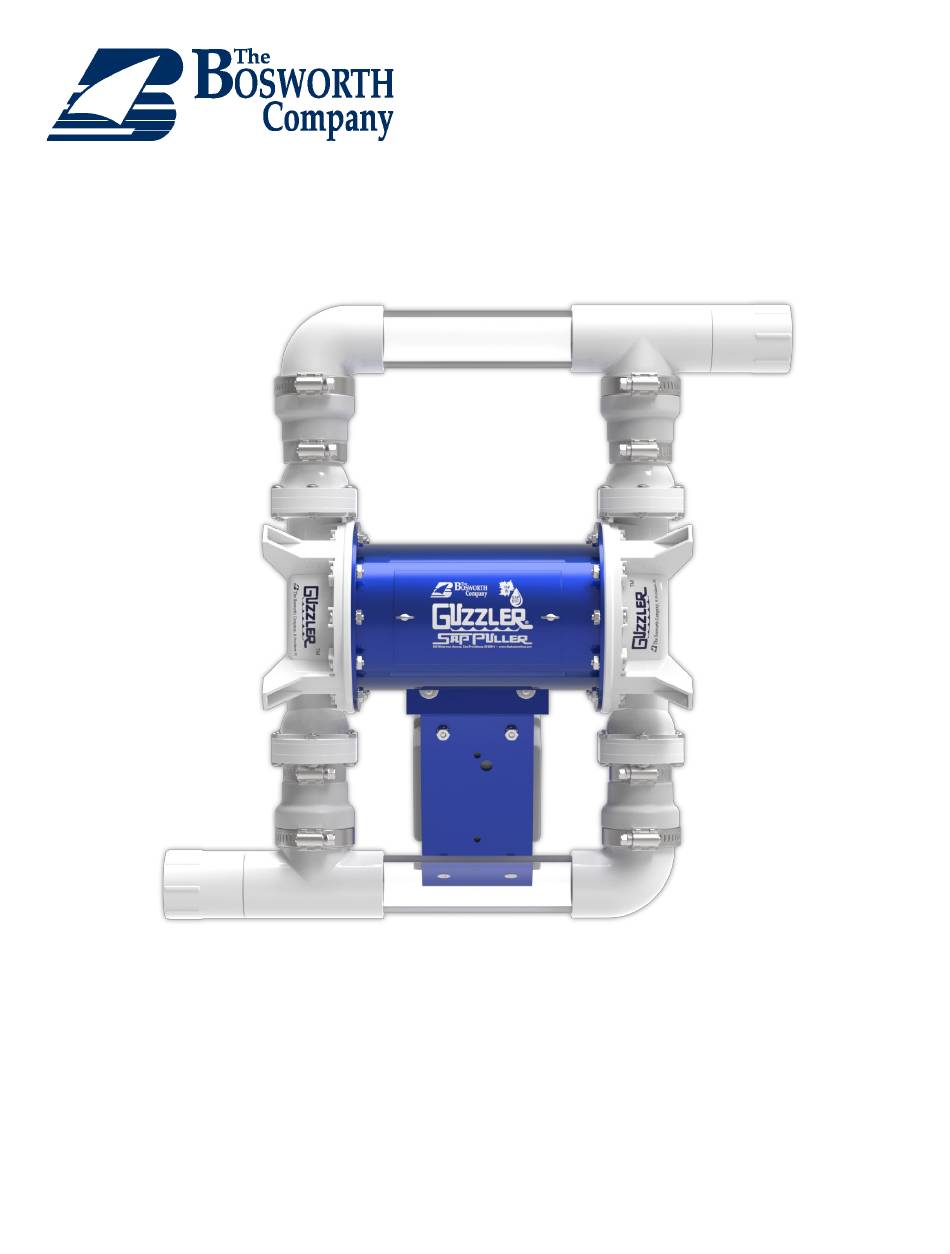

- Page 1 Guzzler® G2-0501N 120 vac SapPuller Double Diaphragm Pump Operator’s Manual www.thebosworthco.com © Copyright 2023 The Bosworth Company OM-G20501N-eng-103023 Guzzler® and SapCheck® are registered trademarks of The Bosworth Company...
-
Page 2: Table Of Contents
® Guzzler G2-0501N 120 vac Double Diaphragm Pump Index Introduction……………………………………………………………………………………………………………………………. Assembling Your Pump………………………………………………………………………………………………………………. 2 Power Requirements ………………………………...…………………………………………………………………………… Testing the Pump ……………………………………………………………………………………………………………………. Pump Setup ………………………………………………………………………………………………………………………………. Protect the Pump from the Elements…………………………………………….…………………………………………… 3 Ventilate Pump to Keep from Overheating……………………………………………………………………………… Quick Connect Couplers between Guzzler and Mainline …………………………………………………………. Install Shut-off Valve and Vacuum Gauge at Pump Inlet …………………………………………………………. -
Page 3: Introduction
Figure 1. Assembling Your Pump Your Guzzler G2-0501N pump ships with the inlet and outlet mani- folds disconnected from the pump and packed separately in the box. To assemble your pump, simply attach each manifold to either side... -
Page 4: Pump Setup
Figure 5 Pump Setup Figure 5 shows a recommended installation setup for the Guzzler G2-0501N pump when used for vacuum produc- tion on a maple sap collection line. The topics below refer to that figure in more detail. Protect the Pump from the Elements However you deploy your pump, ensure it is protected from the elements and securely mounted. -
Page 5: Recirculation Line For Best Vacuum
Pump Setup / Tips for Best Operation Recirculation Line for Best Vacuum Guzzler pump valves seal best when wet. To achieve the best vacuum with your Guzzler, we recommend that you install a small (1/8” to 1/4” in diameter) recirculation line from your collection tank back to the inlet of the Guzzler (Figure 5). -
Page 6: Maintenance - Changing A Diaphragm
Maintenance - Changing a Diaphragm Maintenance - Changing a Diaphragm Over time, the elastomer components of the pump (i.e., the diaphragm and valves) will fail. If a diaphragm fails, the pump may continue to develop some vacuum (depending on the size of the hole/tear), but it will be significantly re- duced, and you will see sap leaking from the diaphragm and out through the “weep”... -
Page 7: Installing A Diaphragm
Maintenance - Changing a Diaphragm / Changing Pump Valves Installing a Diaphragm 1. Place the new diaphragm onto the base of the plastic clevis, ensuring it is seated on the raised central boss; install the button (rounded-edge toward diaphragm) and stainless steel washer. -
Page 8: Troubleshooting
Maintenance - Changing Pump Valves / Troubleshooting Removing the Valves—continued Remove the umbrella valve with a pair of pliers, pulling the flat of the valve until the stem is pulled through the valve stop center retaining hole (Figure 12). Inspect the valve for any tears. Inspect the valve pores and remove any dirt or material that may have become lodged in the pores. -
Page 9: Technical Support
For all technical inquiries, please refer to our website, www.thebosworthco.com, Maple Sap Pumps Application, or contact The Bosworth Company. Be sure to have your pump serial number readily available if contacting Technical Support. You can email us at info@thebosworthco.com or call 401-438-1110. Technical support is available Mon- day-Friday, 8AM-4:30 PM. -
Page 10: Pump Exploded View
Guzzler G2-0501N SapPuller Pump Exploded View OM-G20501N-eng-103023... - Page 11 Guzzler G2-0501N SapPuller Pump - Exploded View Available Replacement Parts 1G Pump Inlet Flange: 1-1/2 in smooth 1M Pump Inlet Manifold 2G Pump Outlet Flange: 1-1/2 in smooth 2M Pump Outlet Manifold 3B Button & Stainless Steel Washer 4 Clevis...
- Page 12 930 Waterman Avenue East Providence, RI 02914 www.thebosworthco.com 888-438-1110 © Copyright 2023 The Bosworth Company...
