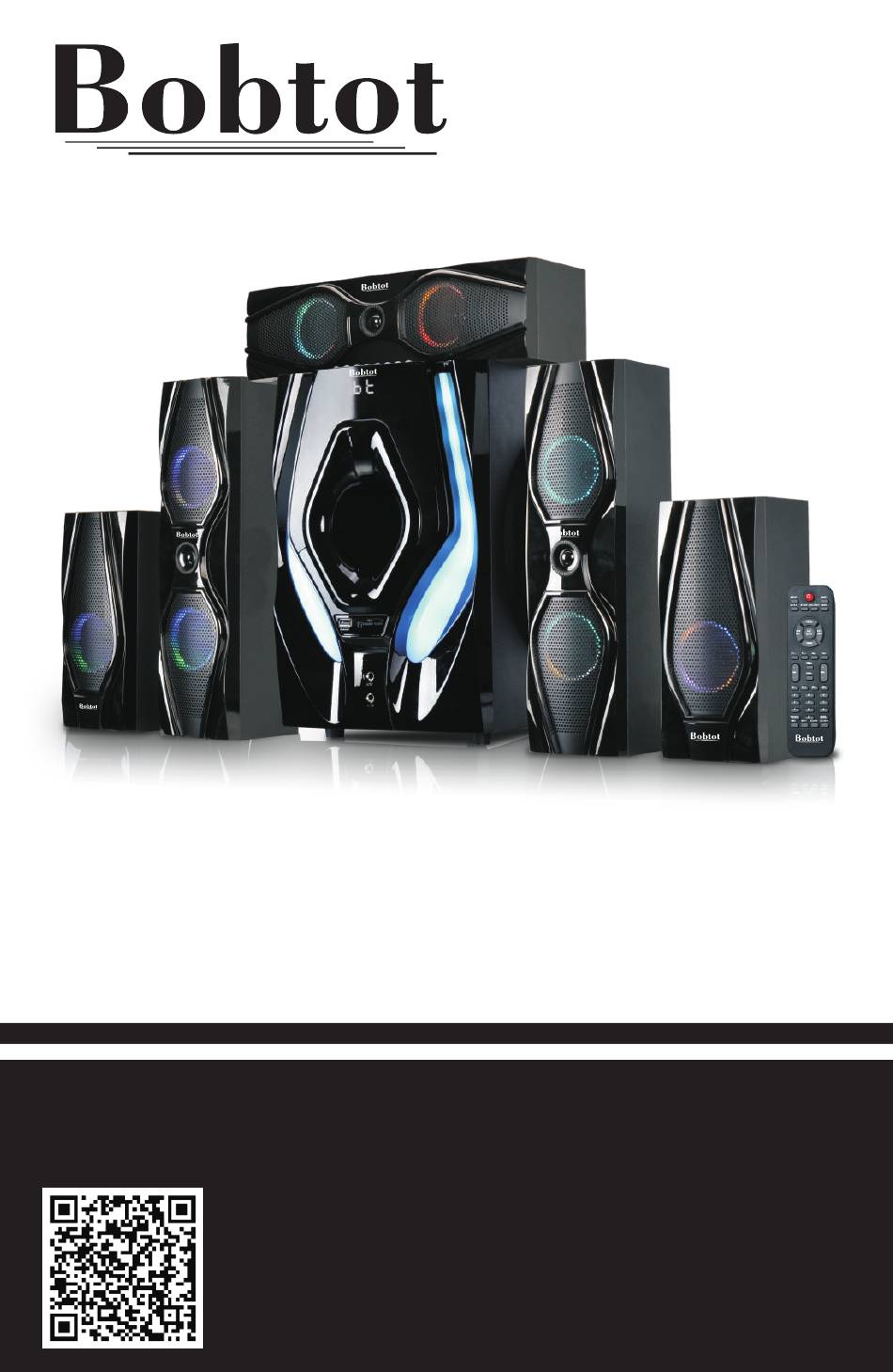

- Page 1 Quick Setup Guide B901D 5.1 CHANNEL HOME THEATER SYSTEM WITH LED LIGHT EFFECTS Scan the QR code to access how-to videos, the user’s manual, and other important information you may need to get the most of your item...
-
Page 3: What's In The Box
Like our product? Share your experience with our customers on your page! Having troubels? Contact us: service@bobtot.net What’s in the box Subwoofer Speaker *Satellite Speakers(Center & FL & FR & SL & SR) 5PCS *RCA Video Audio Cables 3PCS *3.5mm to RCA Audio Stereo Cable... -
Page 4: Table Of Contents
Table of Contents What's in the box..................3 Important Saftety Instructions..............3 Front Panel of Subwoofer................. 5 Back Panel of Subwoofer................. 6 Remote Control Function................. 7 Best Placement for 5.1 Home Theater System......... 8 Set Up Center & Front & Rear Speakers........... 8 ........ -
Page 5: Front Panel Of Subwoofer
ST.BT---------------Stand by function by pressing it 3 secs in AUX/SUB /SD/FM/BT/OPTICAL/COAXIAL/TV ARC mode; INPUT -------------- Input function key, switch among AUX/USB/ SD/DVD/FM/BT/OPTICAL/COAXIAL/TV ARC mode. 5.1/2.1------------- 5.1/2.1 function key. ------------ Previous” function key.Previous song when USB/SD “ CH-/ input;Previous channel when FM input. AUTO/ ---------- USB/SD Pause/Play function key;... -
Page 6: Back Panel Of Subwoofer
LED POWER 1.Power input 2.Power switch 3.TV ARC audio input 4.Optical audio input 5.Coaxial audio input 6.FM antenna 7.RCA to RCA or RCA to 3.5mm AUX audio input 8.3PCS RCA DVD audio input (front L&R/center/subwoofer/rear L&R) 9.Center speaker/Front L/R speakers /Rear L/R speakers audio output... -
Page 7: Remote Control Function
: Power/Standby INPUT: Switch between input modes:USB/SD/FM/ AUX/DVD/OPT/COA/TV ARC/BT MUTE: Mute all output 5.1/2.1: Channel mode select SLEEP: Setting the sleep time LED LIGHT: Long press to turn on/off the LED light of 5 small speakers; Short press to change the Subwoofer's light modes or turn light off. -
Page 8: Best Placement For 5.1 Home Theater System
Center Subwoofer SET UP CENTER & FRONT & REAR SPEAKERS Center speaker Cable:157.48inch FL speaker FR speaker Cable:157.48inch Cable:157.48inch LED POWER SL speaker SR speaker Cable:374.02inch Cable:374.02inch... -
Page 9: Mounting Instructions
Make sure you have all the necessary screws and brackets. There are five brackets and one bag of screws. If any of these items are missing, please contact Bobtot. Vertical installation: using two screws, secure one bracket to the back of each speaker you wish to mount the position. -
Page 10: System Connection Diagram
3. Press the "INPUT" button to switch mode to“ BT ”status, which is showing in the LED display of the subwoofer. 4. Search BT device with name" B901D " 5. Connect the BT Note: If your BT device is below 2.0 version, input password " 0000 "... -
Page 11: How To Connect Your Device By Tv Arc Cable
5. TV setting: Sound output --- Select " TV ARC ". 6. TV setting: Expert Setting --- Digital output audio format--Select " PCM ". Note: B901D ARC output only supports LPCM 2.0 audio format. TV ARC Plug How to connect your device by Optical Cable 1. -
Page 12: How To Connect Your Device By Rca Stereo Audio Cable
How to connect your device by RCA Stereo Audio Cable 1. Plug the RCA Stereo Audio cable in back of the subwoofer. White to White Connector, Red to Red Connector, another (White/Red) port plug into the L&R Output slots of your device. 2. -
Page 13: How To Use Fm Radio By Antenna
Press the "SAVE" button, it saves the radio channel, and you can see " good " shows in the subwoofer display. Microphone for Karaoke B901D home theater systems support wireless or wired microphone by 1 or 2 mics jack together. 1. Wireless microphone: plug the mic receiver into the mic jack of the subwoofer. -
Page 14: Certification
Certification FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 15: Need Help
If our customers encounter any issues, we will try our best to find a quick and efficient solution that meets your needs. Here at Bobtot, we take customer care very seriously. Our customers are our first priority, and we are committed to providing the highest quality service.
Need help?
Do you have a question about the B901D and is the answer not in the manual?
Questions and answers
speakers have sound but no rbg
The reason the Bobtot B901D speakers have sound but no RGB lighting is not specified in the provided context. Therefore, it cannot be determined from the available information.
This answer is automatically generated
how do you set up your Bobtot to play through a cable box like Dish to your TV?
To set up the Bobtot B901D Home Theater System to play through a Dish cable box to a TV, follow these steps:
1. Check Available Ports: Verify the Dish cable box has an audio output port that matches an available input on the B901D subwoofer. Common options include Optical, Coaxial, or RCA.
2. Choose Connection Type:
- If the Dish cable box has an Optical or Coaxial output, connect the corresponding cable from the Dish box to the subwoofer’s Optical/Coaxial input.
- If the Dish box has RCA audio outputs, use RCA cables to connect to the subwoofer’s RCA inputs.
3. Connect TV ARC (if needed): If you also want to route sound from the TV, ensure the TV has an ARC (Audio Return Channel) port and connect an ARC cable from the TV to the subwoofer.
4. Power On and Select Input:
- Ensure all devices (TV, Dish box, and B901D system) are powered on.
- Press the INPUT button on the remote and select the correct mode (e.g., "Optical," "Coaxial," or "ARC") based on the connection used.
5. Set Audio Output:
- On the Dish cable box, go to Settings > Audio and set the output to match the connected cable type.
- On the TV, if using ARC, set the audio output to external speakers.
6. Test Sound: Play audio/video content from the Dish cable box and adjust the volume on the B901D system.
If there are connection issues, ensure cables are securely plugged in, and verify the correct input mode is selected.
This answer is automatically generated
