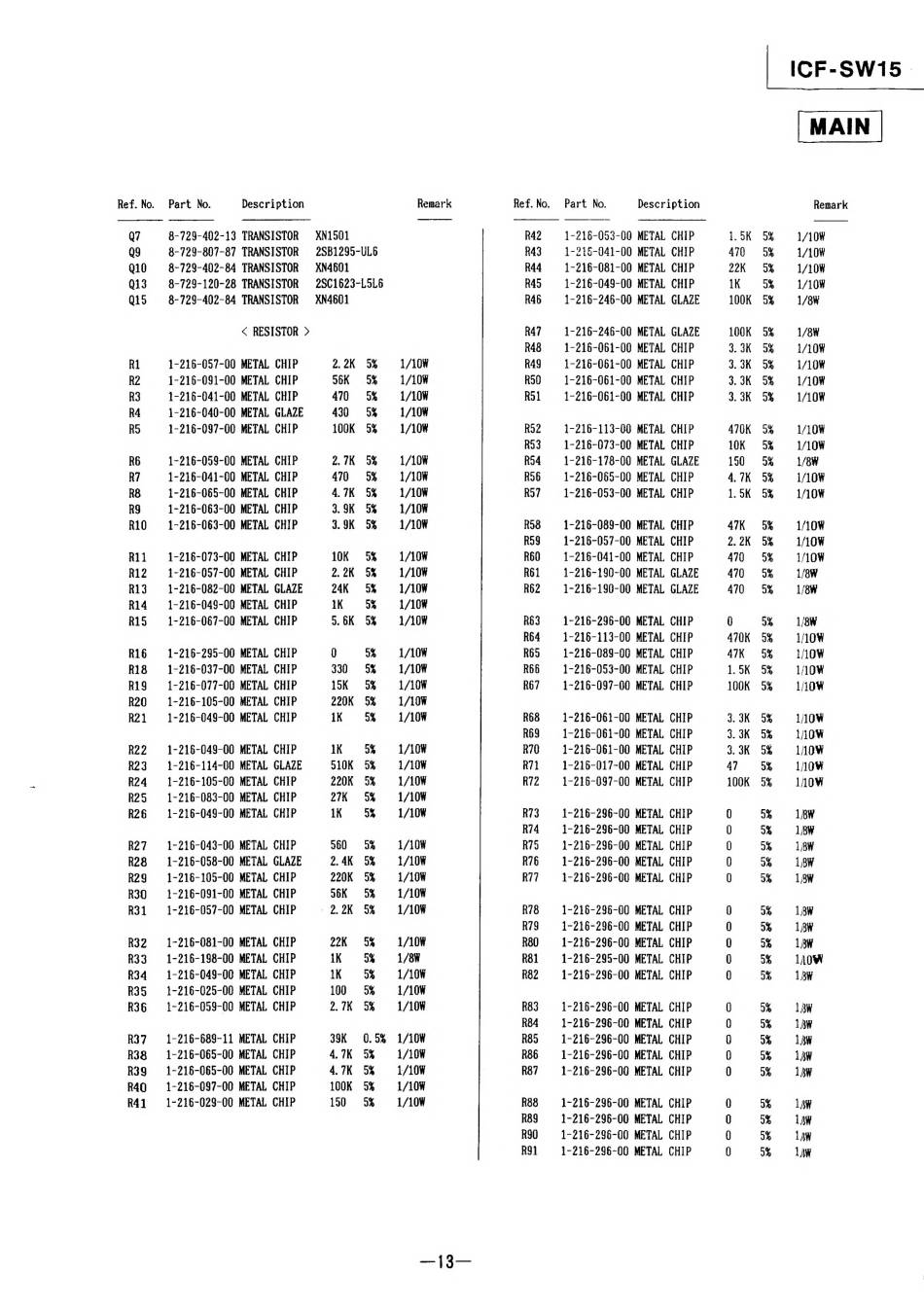

ICF-SW15 >
Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
Q7 8-729-402-13 TRANSISTOR XN1501 R42 1-216-053-00 METAL CHIP 15K 5% 1/10W
Q9 8-729-807-87 TRANSISTOR 2S8B1295-UL6 R43 1-216-041-00 METAL CHIP 470% 1/108
Q10 8-729-402-84 TRANSISTOR XN4601 R44 1-216-081-00 METAL CHIP 22K DS 1/10W
Qi3 8-729-120-28 TRANSISTOR 2S801623-L5L6 R45 1-216-049-00 METAL CHIP 1K o% 1/10W
Qt5 8-729-402-84 TRANSISTOR XN4601 R46 1-216-246-00 METAL GLAZE 100K 5% 1/8W
< RESISTOR > R47 1-216-246-00 METAL GLAZE 100K 5% 1/8W
R48 1-216-061-00 METAL CHIP 3. 3K 5% 1/10¥
R1 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R49 1-216-061-00 METAL CHIP 3.3K 5% 1/10¥
RZ 1-216-091-00 METAL CHIP 96K = o% 1/10W R50 1-216-061-00 METAL CHIP 3. 3K 5% 1/108
R3 1-216-041-00 METAL CHIP 470 = 5% 1/10W R51 1-216-061-00 METAL CHIP 3.3K 5% 1/10¥
R4 1-216-040-00 METAL GLAZE 430 5% 1/10¥
R5 1-216-097-00 METAL CHIP 100K 5% 1/10¥ R52 1-216-113-00 METAL CHIP 470K 5% 1/10W
R53 1-216-073-00 METAL CHIP 10K 5% 1/10W
R6 1-216-059-00 METAL CHIP 2.7K 5% 1/10¥ R54 1-216-178-00 METAL GLAZE 150 5% 1/8W
R7 1-216-041-00 METAL CHIP 470 «5% 1/10W R56 1-216-065-00 METAL CHIP 4.7K 5% 1/10¥
R8 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R57 1~216-053-00 METAL CHIP 1.5K 5% 1/10W
RS 1-216-063-00 METAL CHIP 3.9K 5% 1/10¥
R10 1-216-063-00 METAL CHIP 3.9K 5% 1/10W R58 1-216-089-00 METAL CHIP 47K 5% 1/10¥
R59 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R11 =1-216-073-00 METAL CHIP 10K 5% 1/10W R60 1-216-041-00 METAL CHIP 470 5% 1/10W
R12 1-216-057-00 METAL CHIP 2.2K 5% 1/10¥ R61 1-216-190-00 METAL GLAZE 470 =5% 1/8W
R13. =1-216-082-00 METAL GLAZE 24K = o5% 1/10¥ R62 1-216-190-00 METAL GLAZE 470 5% 1/8W
R14 1-216-049-00 METAL CHIP 1K o% 1/10¥
R15 1-216-067-00 METAL CHIP 5.6K 5% 1/10¥ R63 1-216-296-00 METAL CHIP 0 o% 1/8W
R64 1-216-113-00 METAL CHIP 470K 5% 1/10W
R16 1-216-295-00 METAL CHIP 0 o% 1/10¥ R65 1-216-089-00 METAL CHIP ATK 5% 1/10W
R18 1-216-037-00 METAL CHIP 330 5% 1/10¥ R66 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
Ri9 1-216-077-00 METAL CHIP 15K = 5% 1/10W R67 1-216-097-00 METAL CHIP 100K 5% 1/10W
R20 1-216-105-00 METAL CHIP 220K 5% 1/10¥
R21 1-216-049-00 METAL CHIP 1K 5% 1/10W R68 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R69 1-216-061-00 METAL CHIP 3.3K 5% 1100
R22 1-216-049-00 METAL CHIP 1K 5% 1/10W R70 1-216-061-00 METAL CHIP 3.3K 5% 110W
R23. 1-216-114-00 METAL GLAZE 510K 5% 1/10¥ R71 1-216-017-00 METAL CHIP 47 o% LiOW
R24 1-216-105-00 METAL CHIP 220K 5% 1/10W R72 1-216-097-00 METAL CHIP 100K 5% LAOW
R25 1-216-083-00 METAL CHIP 27K = 5% 1/10¥
R26 1-216-049-00 METAL CHIP 1K o% 1/10¥ R73 1-216-296-00 METAL CHIP 0 5% 1/8W
R74 1-216-296-00 METAL CHIP 0 o% 1W
R27 1-216-043-00 METAL CHIP 560 5% 1/10W R75 1-216-296-00 METAL CHIP 0 5% 18W
R28 1-216-058-00 METAL GLAZE 2.4K 5% 1/10W R76 1-216-296-00 METAL CHIP 0 oO" 1 BW
R29 1-216-105-00 METAL CHIP 220K 5% 1/10¥ R77 1-216-296-00 METAL CHIP 0 o% 1W
R30 1-216-091-00 METAL CHIP 56K = 5% 1/10¥
R31 1-216-057-00 METAL CHIP 22K 5% 1/10W R78 1-216-296-00 METAL CHIP 0 o% 18W
R79 1-216-296-00 METAL CHIP 0 5% 18W
R32 1-216-081-00 METAL CHIP 22K =o 1/10¥ R80 1-216-296-00 METAL CHIP 0 o% 18W
R33 1-216-198-00 METAL CHIP 1K 5% 1/8W R81 1-216-295-00 METAL CHIP 0 5% LOW
R34 1-216-049-00 METAL CHIP 1K D% 1/10¥ R82 1-216-296-00 METAL CHIP 0 o% 1 BW
R35 1-216-025-00 METAL CHIP 100 5% 1/10W
R36 1-216-059-00 METAL CHIP 2.7K 5% 1/10¥ R83 1-216-296-00 METAL CHIP 0 on 12W
R84 1-216-296-00 METAL CHIP 0 5% 13W
R37 1-216-689-11 METAL CHIP 39K 60.5% =—«1/108 R85 1-216-296-00 METAL CHIP 0 a" 13W
R38 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R86 1-216-296-00 METAL CHIP 0 5% 13W
R39 1-215-065-00 METAL CHIP 4.7K 5% 1/10¥ | R87 1-216-296-00 METAL CHIP 0 5% 13W
R40 1-216-097-00 METAL CHIP 100K 5% 1/10¥
R41 1-216-029-00 METAL CHIP 150 5% 1/10¥ R88 1~-216-296-00 METAL CHIP 0 5% 1AW
R89 1-216-295-00 METAL CHIP 0 5% LAW
R90 1-216-296-00 METAL CHIP 0 o% LAW
RS1 1-216-296-00 METAL CHIP 0 o% LAW
