Patriot Lighting 343-4147 Quick Start Manual page 2

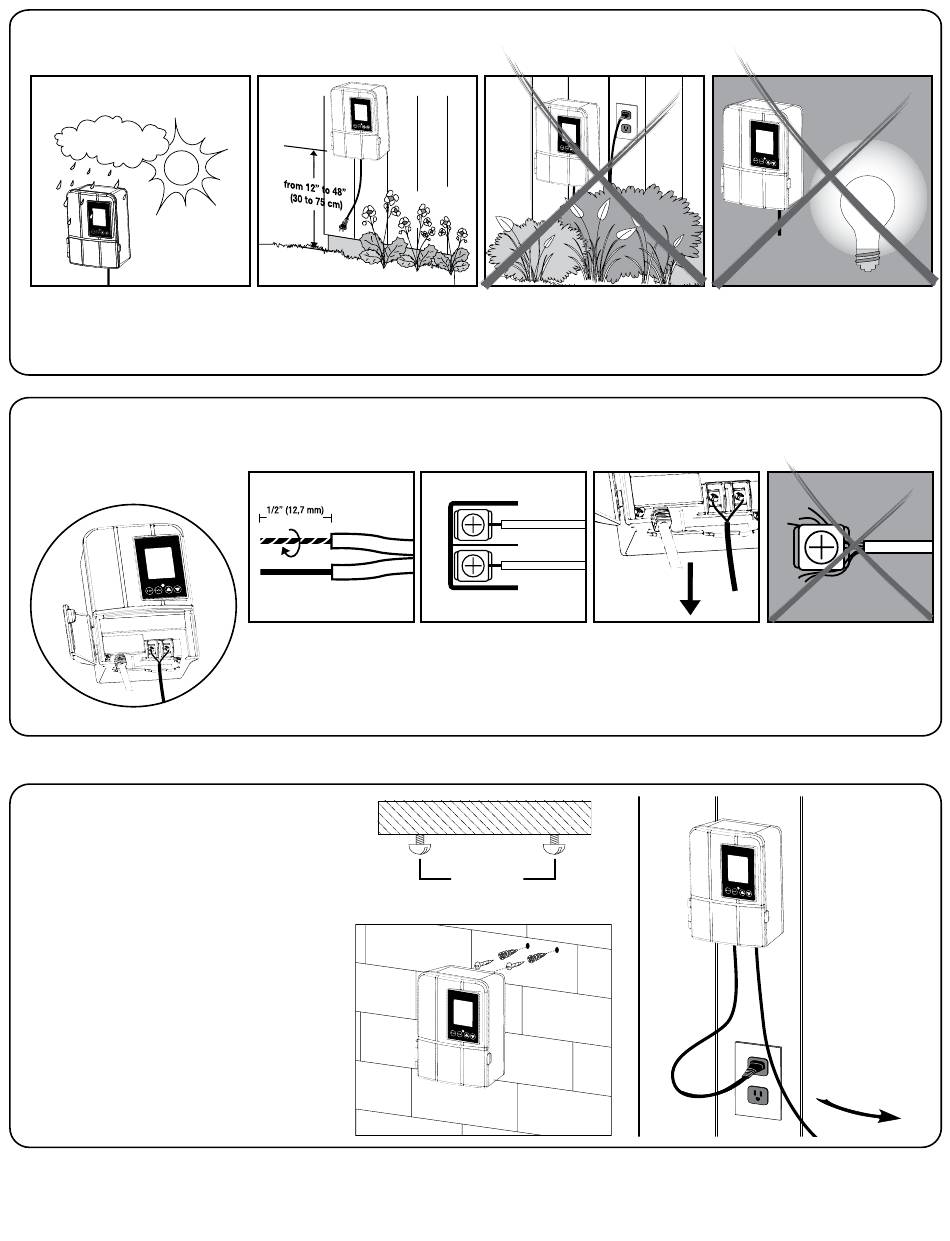

1.
Find a location for the transformer
1.1 Outdoor use, weather proof.
2.
Connect cable to transformer
3.
Mount the transformer
3.1 Option 1: Standard wall mounting
Insert the two (2) included support
screws 3.5" (9 cm) apart in a wall near an
electrical outlet and mount the transformer.
3.2 Option 2: Brick or cement wall mounting
Drill two (2) holes of 5/16" (8 mm), 3.5"
(9 cm) apart from each other, in a wall
near an electrical outlet and place the two
(2) plastic anchors included. Insert the two
(2) support screws in the anchors until they
have about 1/4" (6 mm) of space left to
mount the transformer.
SAFE
1.2 Install the transformer at a
level where the controls are
visible and accessible.
2.1 Remove the landscape
wire insulation 1/2" from
both wires and twist ends.
2.1a Open the front panel
by pulling the right side
below the screen.
1.3 Only applies in AUTO mode. Do
not install behind shrubs. It will
affect photocell for Auto dusk-to-
dawn mode.
2.2 Remove the bottom
2.3 Gently pull on the
plate by pulling on it
landscape wire to verify if
for more space during
installation. Insert wires
the connection is strong.
under each terminal plate
and tighten screws.
3.5"
(9 cm)
1.4 Only applies in AUTO mode.
Photocell will not operate prop-
erly if installed too close to a
nighttime light source.
PULL
TIGHT
2.4 Verify that there are
no loose cable strands.
2.5 Replace the bottom
plate and close the front
panel.
Landscape wire
to the fixtures.
