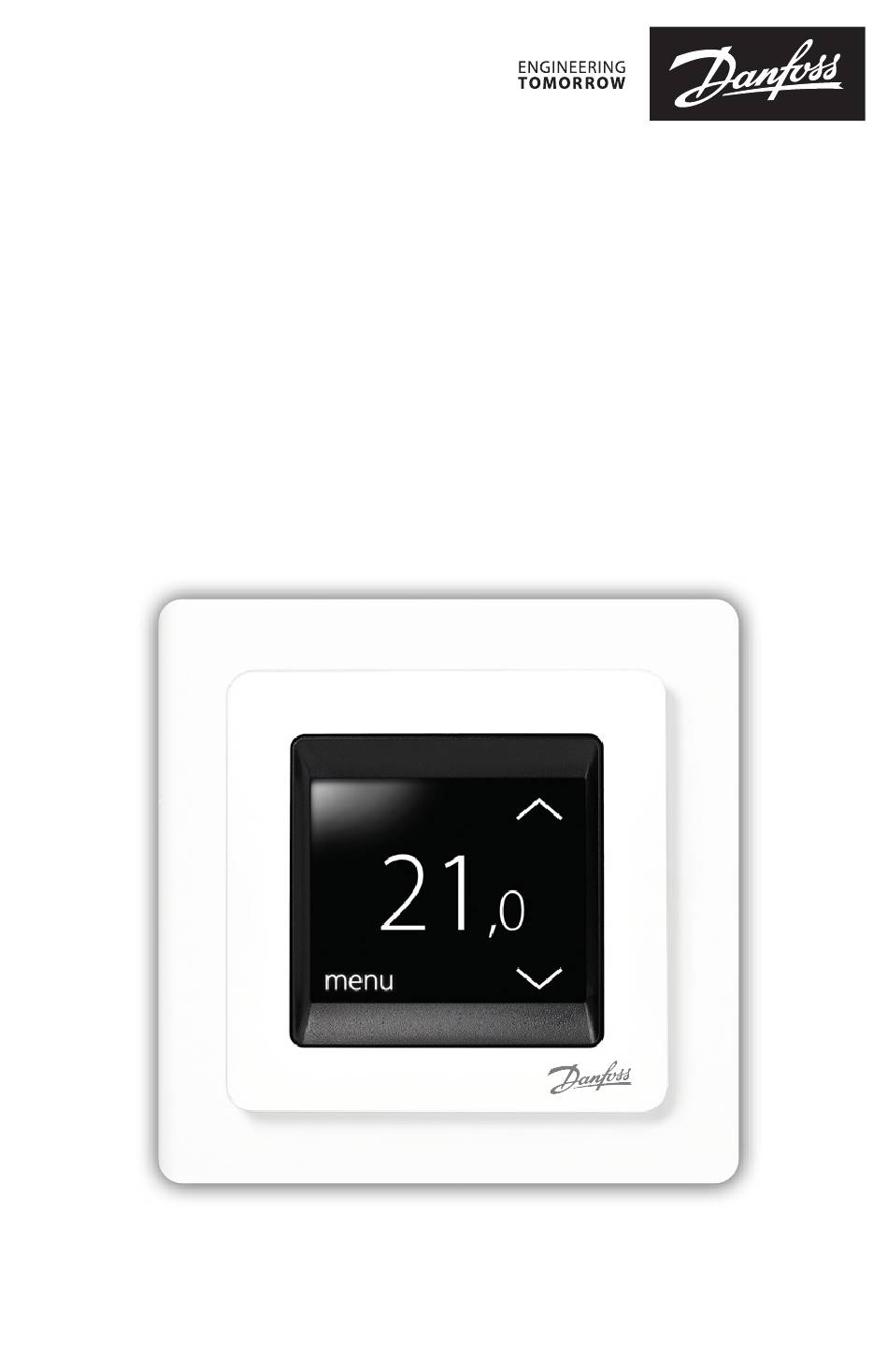

- Page 1 Installation Guide Danfoss ECtemp Touch Electronic Intelligent Timer Thermostat electricheating.danfoss.com...
-
Page 2: Table Of Contents
Disposal Instruction ....22 Introduction The Danfoss ECtemp Touch is an electronic programmable timer thermostat used for controlling electrical floor heat- ing elements. The thermostat is designed for fixed instal- lation only and can be used for both direct heating of the entire room and for comfort heating of the floor. -
Page 3: Technical Specifications
Danfoss ECtemp Touch • An installation wizard with room/floor type-specific setup. • Support for multiple frame systems. • Compatible with several 3rd party NTC sensors. • Thermostat settings can be specified before instal- lation and imported to the thermostat using a web-generated code, or copied from a thermostat in a similar installation. - Page 4 Danfoss ECtemp Touch Sensing values: (Default NTC 15 K) 0°C 42 kΩ 20°C 18 kΩ 50°C 6 kΩ Control PWM (Pulse Width Modulation) Ambient temperature 0° to +30°C Frost protection temperature 5°C to +9°C (default 5°C) Temperature range Room temperature: 5-35°C.
-
Page 5: Safety Instructions
Danfoss ECtemp Touch IP class Protection class Class II - Dimensions 85 x 85 x 20-24 mm (in-wall depth: 22 mm) Weight 103 g Electrical safety and Electro-Magnetic Compatibility for this product is covered by the compliance with the EN/IEC Standard “Automatic electrical controls for household and... -
Page 6: Mounting Instructions
Danfoss ECtemp Touch • The thermostat must be connected to a power supply via an all-pole disconnection switch. • Always connect the thermostat to continuous power supply. • Do not expose the thermostat to moisture, water, dust, and excessive heat. - Page 7 Danfoss ECtemp Touch Do not place the thermostat in a way that it will be exposed to direct sunlight. Note: A floor sensor enables a more accurate temperature control and is recommended in all floor heating applications and mandatory under wooden floors to reduce the risk of over-heating the floor.
- Page 8 Danfoss ECtemp Touch Follow the steps below to mount the thermostat: Open the thermostat: Important: Do NOT press on the display screen when removing the front part. Press your fingers under the side of the front part and pull toward you: Connect the thermostat according to the connection diagram.
-
Page 9: Settings
Danfoss ECtemp Touch Mount and reassemble the thermostat. • Fasten the thermostat to a socket or an exterior wall box by driving the screws through the holes in each side of the thermostat. • Put the frame on. • Click the display module back in place. - Page 10 Danfoss ECtemp Touch Use the arrows in the right side of the screen to go to your language, and press to select it. Then press in the upper right corner to confirm. Press the hour numbers and use the < and > arrows to set the hour.
- Page 11 Danfoss ECtemp Touch If you have already made the installation setup online, press ENTER CODE and go directly to Step 13 now. Oth- erwise press SETUP WIZARD and go to Step 6. On the SETUP information screen, press to start.
- Page 12 Danfoss ECtemp Touch Use the < and > arrows to select the installed floor sensor type. (Measured resistance and correspond- ing temperature are shown in brackets). Press confirm. Use the < and > arrows to select the flooring type. Press to confirm.
-
Page 13: Forecast
Danfoss ECtemp Touch 12. Use the < and > arrows to select whether the timer should be activated or not. Press to confirm and end the initial thermostat setup. Skip Step 13. 13. Enter your web-generated code. Then press to end the initial thermostat setup. - Page 14 Danfoss ECtemp Touch How to turn the forecast feature on and off. Touch the thermostat display to activate it, then press menu. Press SETTINGS in the bottom right corner of the menu. Then press OPTIONS. Press FORECAST. Then press ON to optimise heating start/...
-
Page 15: Window Open
Danfoss ECtemp Touch Window Open How to turn “window open detection” on or off Touch the thermostat display to activate it, then press menu. Press SETTINGS in the bottom right corner of the menu. Then press OPTIONS. Press WINDOW OPEN. Then press ON to temporarily turn off... -
Page 16: Maximum Floor Temperature
Danfoss ECtemp Touch Maximum Floor Temperature How to set the maximum floor temperature Touch the thermostat display to activate it, then press menu. Press SETTINGS in the bottom right corner of the menu. Then press INSTALLATION and MANUAL SETUP. Press MAX. FLOOR. Then use the <... - Page 17 Danfoss ECtemp Touch If you break the small plastic seal on the back of the display mod- ule, e.g. using a screwdriver, it will be possible to set the maximum floor temperature up to 45°C. Furthermore, it will be possible to use only a room sensor.
- Page 18 Danfoss ECtemp Touch Thermal Examples of Details Approximate resistance flooring setting for K/W] 25˚C floor temperature 0.05 8 mm HDF based > 800 kg/m 28˚C laminate 0.10 14 mm beech 650 - 800 31˚C parquet kg/m 0.13 22 mm solid oak >...
-
Page 19: Symbols
Danfoss ECtemp Touch Symbols The following symbols may appear in the upper left corner of the temperature display: Symbol What it means The thermostat is in manual mode, i.e. the timer function is off. The timer lets you automatically switch between economy and comfort tempera- tures according to a predefined schedule. -
Page 20: Warranty
All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The Danfoss warranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and effective response to all... - Page 21 Danfoss ECtemp Touch Installation Guide...
-
Page 22: Disposal Instruction
Danfoss ECtemp Touch YEAR WARRANTY Disposal Instruction Installation Guide... - Page 23 Danfoss ECtemp Touch Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08091366 & AN376938642891en-010106 Produced by Danfoss © 12/2023...
