Sanyo C29LF34 Service Manual page 15

Service Mode Adjustments
Items 18-24 GREY SCALE
(1) Receive the monochrome circular pattern.
(2) Set the brightness and colour to normal, contrast to maximum.
(3) Enter to the service mode.
(4) Set each value of Item-18 RBI, 19 GBI, 20 BBI mode to 00. Set each value of Item-21 RD, 22 BD mode to 64.
(5) Select Item-24 mode to be one horizontal scanning line and turn the screen volume on the FBT to obtain just visible
one coloured line.

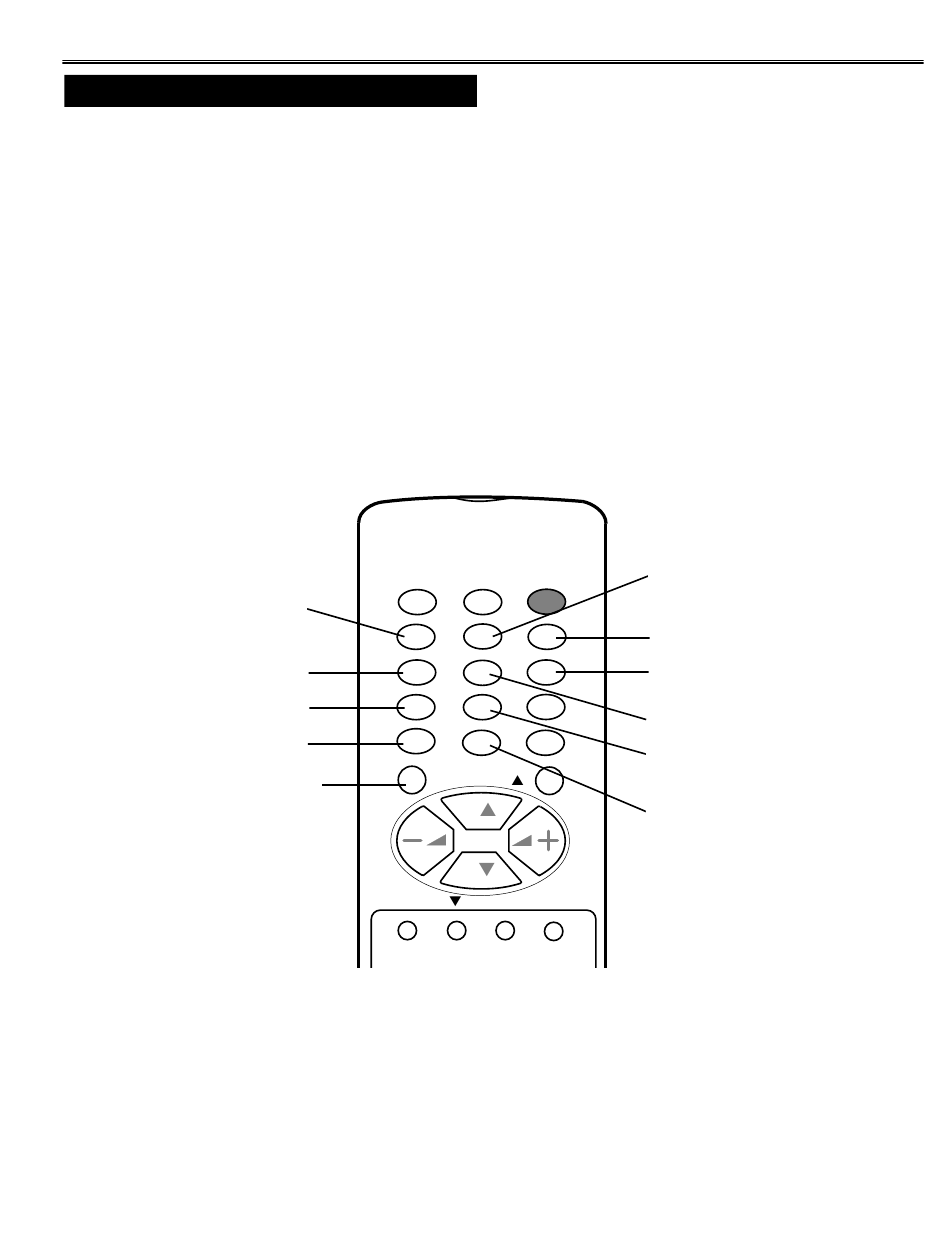

(6) Press the 1 (Red Bias +), 4 (Red Bias -), 2 (Green Bias +), 5 (Green Bias -), 3 (Blue Bias +) or 6 (Blue Bias -)
button to adjust the brightness of each colour until a dim white line produced. Please see the control button alloca-
tions in this mode.
(7) Select Item-23 DRV mode to enter the white balance adjusting mode.
(8) Press the 7 (Red Drive +), RECALL (Red Drive -), 8 (Blue Drive +) or 0 (Blue Drive -) button
alternately to produce normal black and white picture.
(9) Exit from the service mode.
(10) Check for proper grey scale tracking at all brightness levels.
NOTE: If the grey scale adjustment is made after picture tube replacement, check the high voltage.
Red Bias +
Red Bias -
Red Drive +
Red Drive -
Press the MENU
button to exit from
service mode
AUDIO
VIDEO
MODE POWER
MODE
1 2 3
1 2 3
4 5 6
4 5 6
7 8 9
7
8 9
RECALL
0
0
MENU
CH
VOL
P
-
P
CH
MUTE DISPLAY SOUND SURROUND
-15-
Green Bias +
Blue Bias +
Blue Bias -
Green Bias -
SLEEP
Blue Drive +
VOL
Blue Drive -
+
