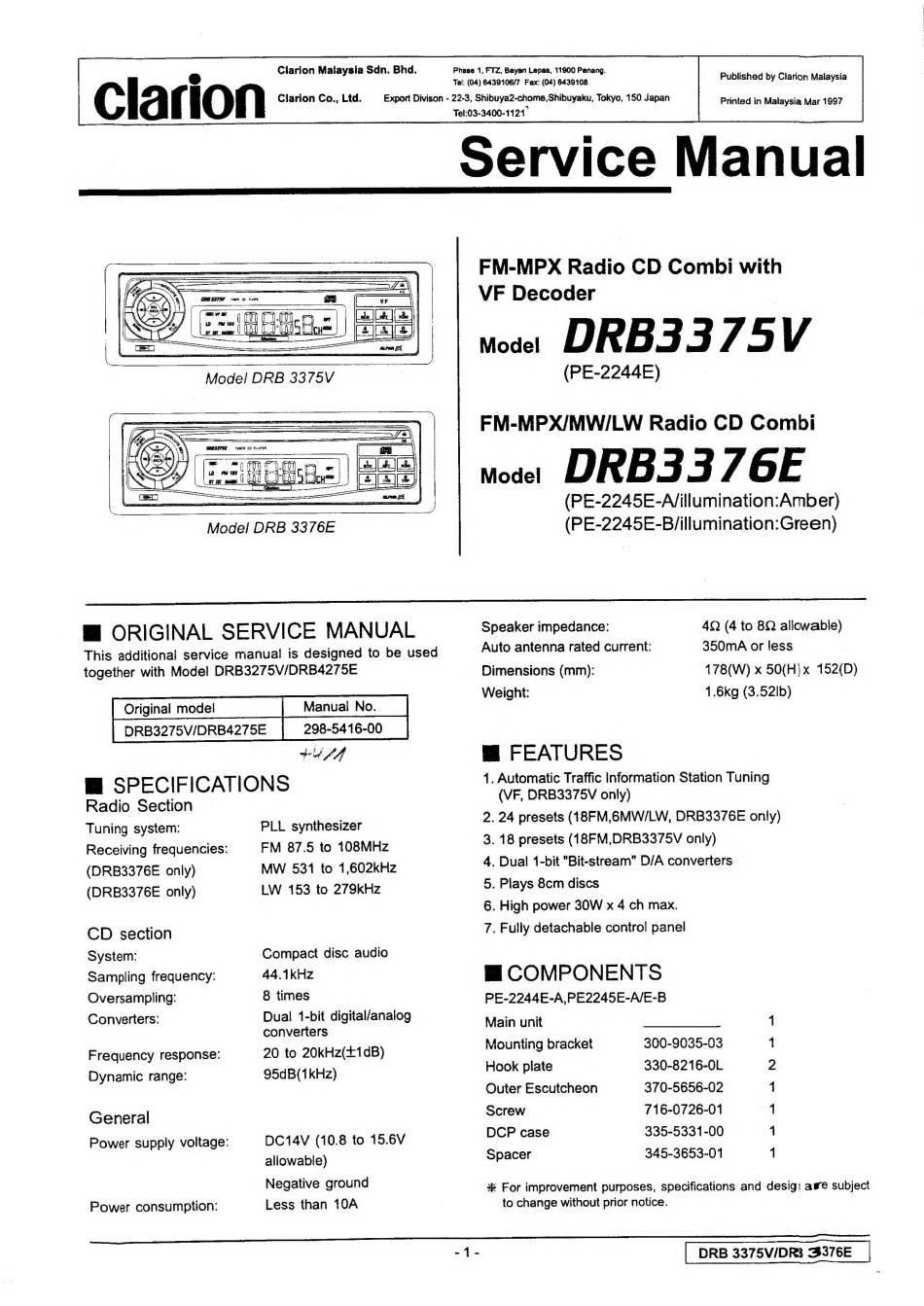

Clarion DRB3375V Service Manual

Clarion Malaysia Sdn. Bhd.
Phase 1, FTZ, Bayan Lepas, 11900 Penang.
Tai: (04) 6439106/7 Fax: (04) 6439108
Export Divison - 22-3, Shibuya2-chome,Shibuyaku, Tokyo, 150 Japan
Tel:03-3400-1121"
Service Manual
Published by Clarion Malaysia
Printed in Malaysia Mar 1997
FM-MPX Radio CD Combi with
VF Decoder
voce: DRB3375V
(PE-2244E)
FM-MPX/MW/LW Radio CD Combi
modet DRB3376E
(PE-2245E-A/illumination:Amber)
(PE-2245E-B/illumination:Green)
together with Model DRB3275V/DRB4275E
Original mode
DRB3275V/DRB4275E
298-5416-00
+44
Radio Section
Tuning system:
Receiving frequencies:
(DRB3376E only)
(DRB3376E only)
CD section
System:
Sampling frequency:
Oversampling:
Converters:
Frequency response:
Dynamic range:
General
Power supply voltage:
Power consumption:
PLL synthesizer
FM 87.5 to 108MHz
MW 531 to 1,602kHz
LW 153 to 279kKHz
Compact disc audio
44.1kHz
8 times
Dual 1-bit digital/analog
converters
20 to 20kHz(+1dB)
95dB(1kHz)
DC14V (10.8 to 15.6V
allowable)
Negative ground
Less than 10A
Speaker impedance:
Auto antenna rated current:
4Q (4 to 8Q allowabie)
350mA or less
178(W) x 50(H}x 152(D)
1.6kg (3.52Ib)
Dimensions (mm):
Weight:
m@ FEATURES
1. Automatic Traffic Information Station Tuning
(VF, ORB3375V only)
2. 24 presets (18FM,6MW/LW, DRB3376E only)
3. 18 presets (18FM,DRB3375V only)
4. Dual 1-bit "Bit-stream" D/A converters
5. Plays 8cm discs
6. High power 30W x 4 ch max.
7. Fully detachable control panel
Mi COMPONENTS
PE-2244E-A,PE2245E-A/E-B
Main unit ———— 1
Mounting bracket 300-9035-03 1
Hook plate 330-8216-0L 2
Outer Escutcheon 370-5656-02 4
Screw 716-0726-01 1
DCP case 335-5331-00 4
Spacer 345-3653-01 1
%* For improvement purposes, specifications and desig: awe subject
to change without prior notice.
DRB 3375V/DR3 3376E
