Exploded Views And Parts List - Pioneer KEH-1700/X1M/UC Service Manual

KEH-101IOGR , IOSOGRA , |IOSOGRS

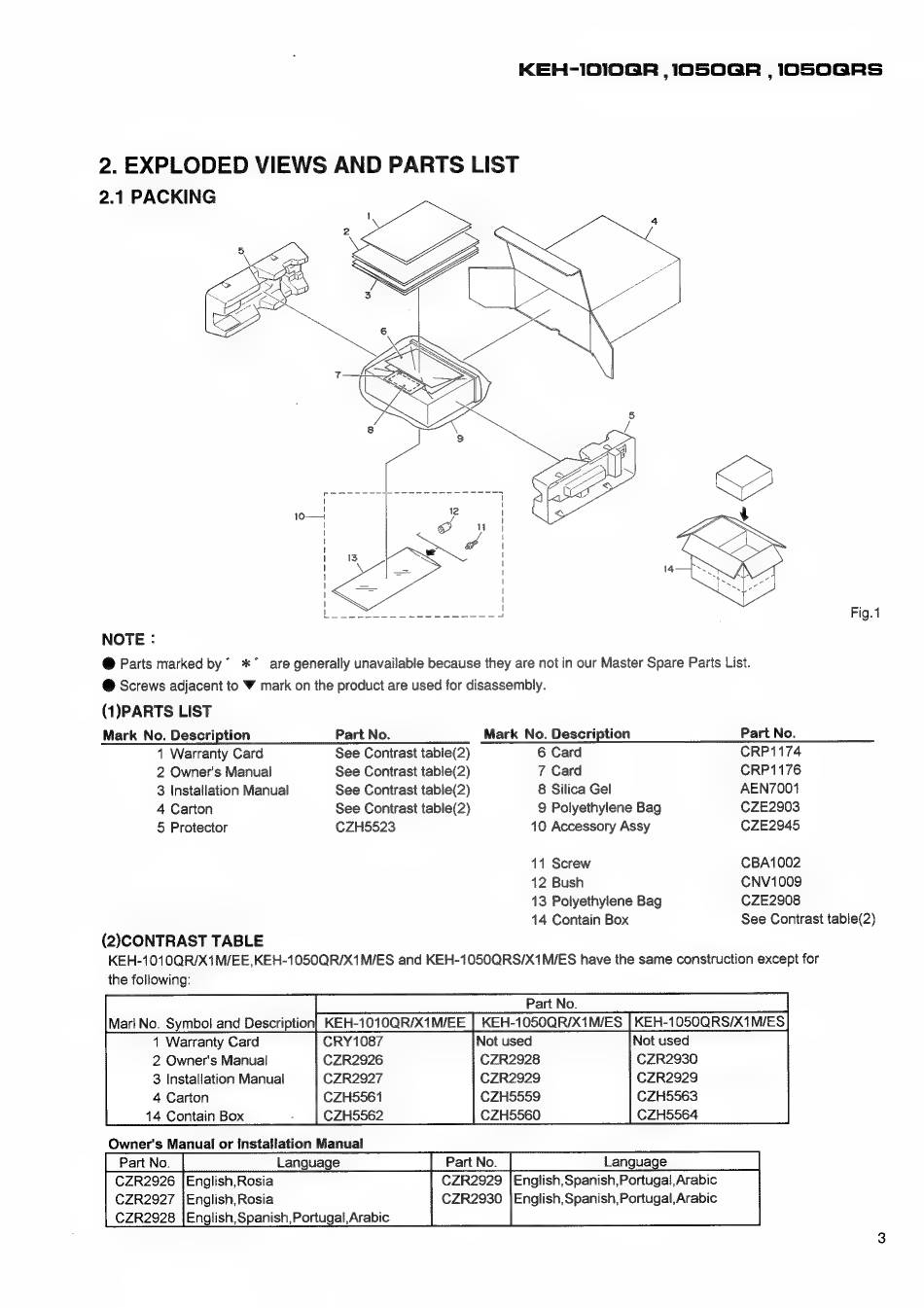

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
Fig.1
NOTE :
@ Parts marked by" *°
are generally unavailable because they are not in our Master Spare Parts List.
@ Screws adjacent to W mark on the product are used for disassembly.
(1)PARTS LIST
Mark No. Description
Part No. Mark No. Description
Part No.
1 Warranty Card
See Contrast table(2)
6 Card CRP1174
2 Owner's Manual
See Contrast table(2)
7 Card CRP1176
3 Installation Manual
See Contrast table(2)
8 Silica Gel AEN7001
4 Carton
See Contrast table(2)
9 Polyethylene Bag CZE2903
5 Protector
CZH5523
10 Accessory Assy CZE2945
11 Screw CBA1002
12 Bush
CNV1009
13 Polyethylene Bag CZE2908
14 Contain Box
See Contrast table(2)
(2)CONTRAST TABLE
Owner's Manual or installation Manual
