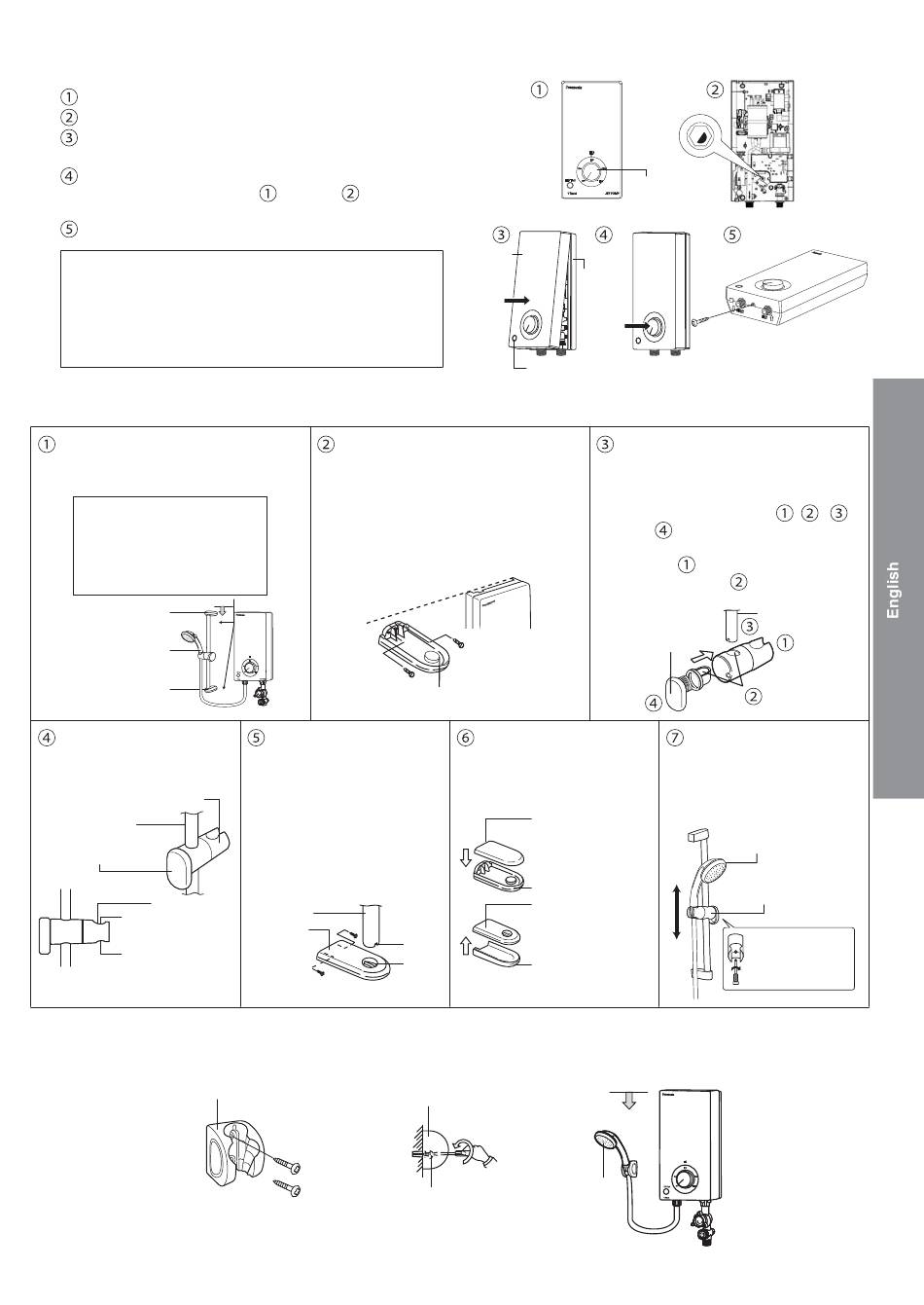

6. How to fi x the Front Plate.
Make sure the Power Knob on Front Plate is at Off position.
Make sure the "D-Cut" position of the shaft is located as shown.
Close the Front Plate of the Unit according to the sequence
as illustrated.
Press in the Power Knob until it is fully inserted. Power Knob
cannot be inserted if Step
accordingly.
Fix the Screw at the bottom of the Unit.
Note:
1. Do not push the ELB Test Button during fi xing
the Front Plate.
2. Do not apply extreme force to insert the Power
Knob during fi xing the Front Plate because it will
damage the switch inside the Unit.
7. Shower Hanger installation.
For DH-3VS1 / DH-3VP1 / DH-4VS1 / DH-4VP1 / DH-6VS1
Install the Rail Holder so that the
Shower Head height not higher than
the unit top.
Make sure the wall level must
be same to the Rail Holder
fi xing position. If the wall is not
at the same level, please use
spacer (not included) to fi x the
accessory.
Upper Rail Holder
Shower Head
Lower Rail Holder
Tighten the Shower
Hanger with Shower
Hanger Knob.
Shower Hanger
Sliding Rail
Shower Hanger Knob
Hole to fi x
Top
Shower Head
Bottom
* Shower Hanger will drop off easily
once the knob is loosen.
For DH-3VL1 / DH-4VL1 / DH-3WL1
Install the Shower Hanger so that the Shower Head top is not higher than the unit top.
Shower Hanger
and Step are not done
Install the Upper Rail Holder on the
wall but not higher than the Unit top.
Tighten the Upper Rail Holder with 2
screws. (Make sure to insert the Wall
Plugs through the screw holes).
OFF OFF OFF OFF MA MA MA MA
Install the Lower Rail
Holder with the groove of
Sliding Rail inserted to
the Upper and Lower Rail
Holder's notches. Tighten
the Lower Rail Holder
with 2 screws (Make sure
to insert the Wall Plugs
through the screw holes).
Sliding Rail
Rail Holder
Groove
Notch
Screw
Shower Hanger
Screw
Wall Plug
Screw
Front Plate
Back
Plate
Press
Press
ELB Test Button
Screw
Upper Rail Holder
Cover the Upper and
Lower Rail Holder with
the Rail Holder Covers.
Upper Rail Holder
Cover
Upper Rail Holder
Lower Rail Holder
Lower Rail Holder
Cover
Shower Head
EN17
"D-Cut" position
Power Knob
Screw
Prepare the Shower Hanger
and Sliding Rail, loosen the
Shower Hanger Knob by turning it
(anticlockwise) then install the parts
following the sequence ,
and .
Note: Make sure hole of Shower
Hanger is align with hole of
Shower Hanger before slot the
Sliding Rail.
Sliding Rail
Shower Hanger
Knob
Shower
Hanger
Hole Align
Adjust the Shower
Hanger at the required
level and hang the
Shower Head as shown
in fi gure below.
Shower Head
Shower Hanger
Tighten the
Screw if Shower
Head is still tilted
downward.
OFF OFF OFF OFF
MA MA MA MA
,
