5.

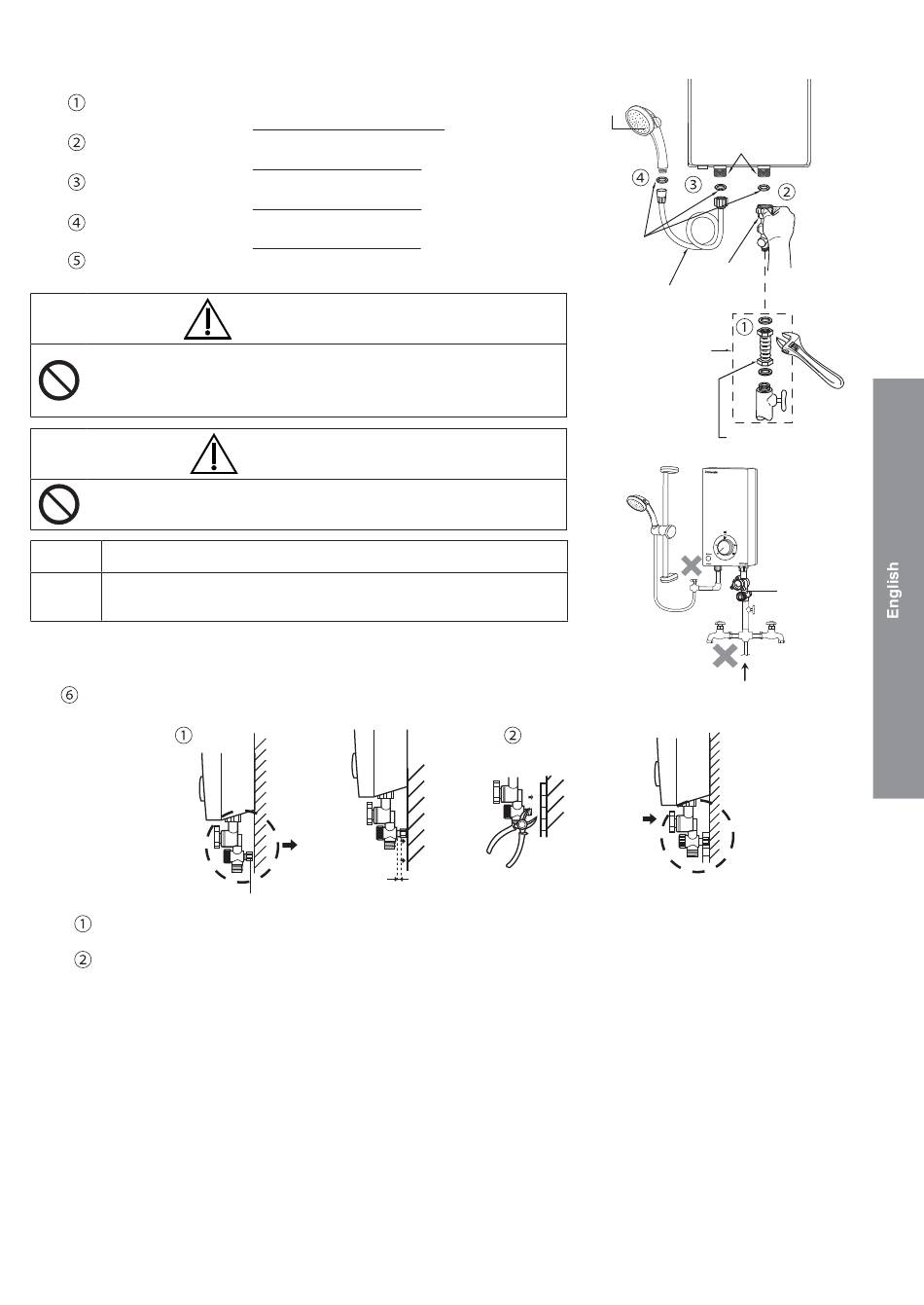

Piping installation procedure.
Place Rubber Packing between Filter Body Assembly and Flexible Pipe.
Do not use Piping Tape. Tighten it by Spanner fi rmly.
Place Rubber Packing between Filter Body Assembly and Main Body.
Do not use Piping Tape. Tighten it by hand fi rmly.
Place Rubber Packing between Shower Hose and Main Body.
Do not use Piping Tape. Tighten it by hand fi rmly.
Place Rubber Packing between Shower Hose and Shower Head.
Do not use Piping Tape. Tighten it by hand fi rmly.
The Water Volume Knob should be placed in the front direction of the Unit.
Do not share the inlet or outlet pipe of Home Shower Unit with
other outlets.
The pressure may drop due to water being drawn off at other point.
The shower water temperature may become very hot.
Avoid using dirty water as it may affect heater performance
and other components.
Note: Make sure no water leaks from pipe connection.
When glue is used for external piping connection, must wait for the glue
Note:
to dry before proceed to test run with water.
Adjust Holder Adjustment. (Behind Filter Body Assembly).
Set the Adjust Holder behind the Filter Body Assembly by turning it anticlockwise or clockwise. Make sure the Adjust
Holder is touching to the wall or tiles.
If the Adjust Holder needs to be cut due to different wall height make sure the Adjust Holder is touching to the wall or
tiles to prevent possibility of water leakage at the Filter Body Assembly.
WARNING
CAUTION
Wall / TIles
Adjust Holder
Touching to
the wall / tiles
Touching to
Remove
the wall / tiles
Cutter
About 5 mm
EN16
Main Body
Shower
Head
Thread End
Rubber
Packing
Filter Body
Assembly
Shower Hose
Parts not included
Use fl exible pipe
minimum length 150 mm
OFF OFF OFF OFF MA MA MA MA
Water Inlet Water Outlet
Tiles
Filter Body
Assembly
