Introduction
ALYSEUM - MULTI - User's manual 1.0
Yes, MODULARGRID.NET is full of multi-modules!
This one is just as I dreamed: double, clever, direct and simple at the same time.
Of course, it's buffered with high-quality OPA-4171.
what makes the difference :
●

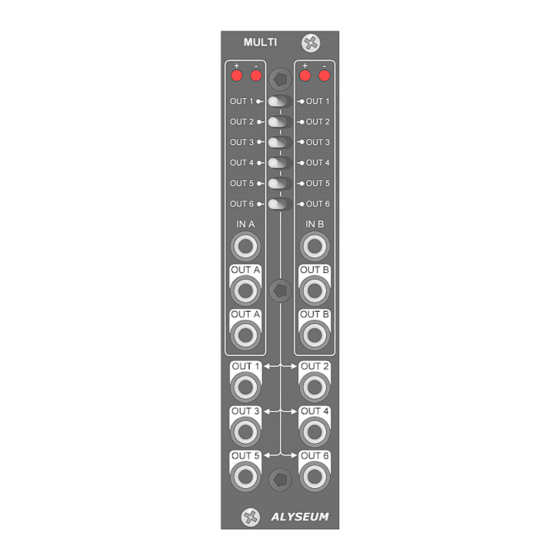

Two inputs (A & B) each with two direct outputs.
●
Individually, each of the 6 outputs can be connected to either input A or B via a
toggle switch, allowing you to configure your MULTI instantly and freely.
●
Both LED on each input gives a luminous visibility to your signals in terms of
polarity and level!
MULTI – User's manual © - Revision 1.0 - Page 1
