Summary of Contents for TurboTronic TT-PO12

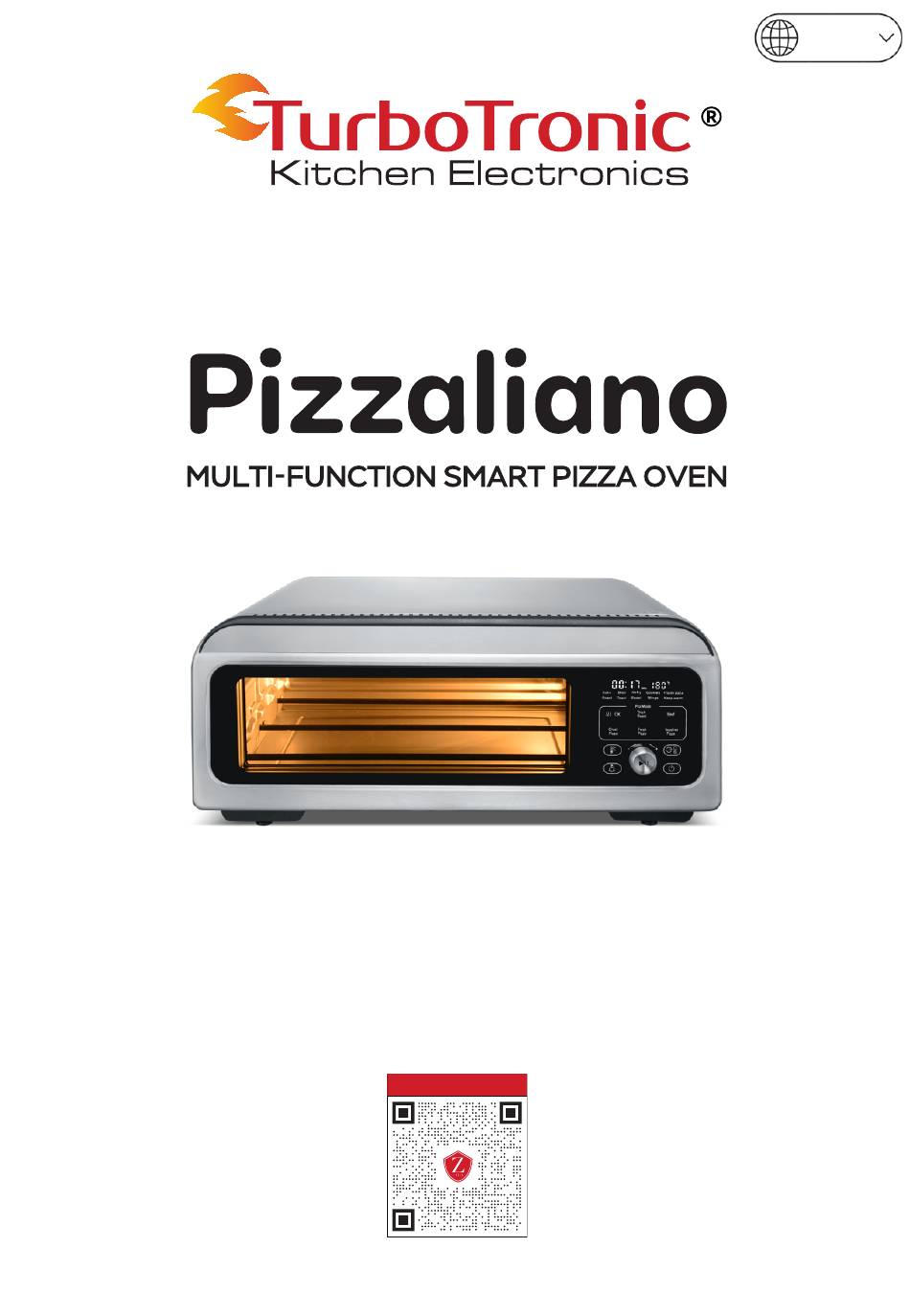

- Page 1 English INSTRUCTION MANUAL TT-PO12 Scan for more product info...
-
Page 2: Important Safeguards

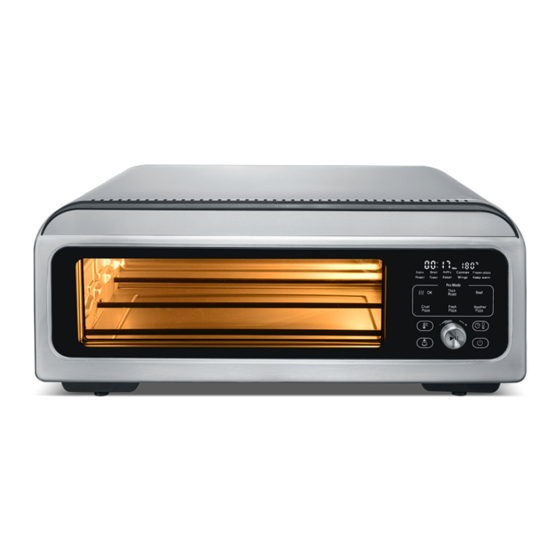

MULTI-FUNCTION SMART AIR FRY PIZZA OVEN ® Thank you for buying Pizzaliano – pizza oven by TurboTronic TT-PO12 it’s a domestic countertop oven to hit 400°C and cook an authentic wood fired style pizza in no time. Our Unique technology SuperHot system replicates the ideal baking environment for Neapolitan, Pan, Thin &... - Page 3 becoming entangled and to reduce the risk of people tripping over a longer cord. l NEVER use outlet below counter. l Keep the appliance and its cord out of reach of children. Do not allow the appliance to be used by children. Close supervision is necessary when used near children.
- Page 4 l DO NOT place the oven near the edge of a countertop. Ensure the surface is level, clean and dry. l This oven is for household use only. DO NOT use this oven for anything other than its intended use. Misuse may cause injury.
- Page 5 l Extreme caution should be exercised when using containers constructed of any materials other than metal or glass. l DO NOT touch hot surfaces. Oven surfaces are hot during and after operation. To prevent burns or personal injury, ALWAYS use protective hot pads or insulated oven mitts and use available handles and dials, and so on.
- Page 6 VERY IMPORTANT: If found the housing overheating, it is necessary to cool oven down before next time usage. Switch off then open the door for faster cooling. QUCIK GUIDE There is a “Quick Guide” label on the product top housing. It is showing how to use machine, time tips for different food setting, and recipes link.
- Page 7 BEFORE FIRST USE Remove and discard any packaging material, promotional labels, and tape from the unit. Remove all accessories from the package and read this manual carefully. Please pay particular attention to operational instructions, warnings, and important safeguards to avoid any injury or property damage.
- Page 8 KNOW MORE ON THIS ITEM: Accessories (picture is for reference, description final base on products) Product unit Parts position Crumb Tray * Keep in "below heating element" position * The edge with a raised shape need to be inserted into oven as front side. * After usage, must wash / clean it in time in case rusty Oven Rack...
- Page 9 Non-stick Casting Iron tray * Always lay on top of the Oven Rack * After usage, wash / clean it in time. Do not use hard tool for clean in case non-stick coating destroyed * For broil / roast / grill and burnt taste pizza Dual side usage so on functions.
- Page 10 KNOW MORE ON THE CONTROL PANEL: Time displayer Temperature display DAILY COOKING 10 auto preset programs: ⦁ Bake ⦁ Broil ⦁ Air fry ⦁ Cookies ⦁ Frozen Pizza ⦁ Warm ⦁ Toast ⦁ Bagel ⦁ Wings ⦁ Dehydrate HIGH TEMPERATURE 6 assistant programs: ⦁...
- Page 11 Region A: Displayer Time displayer Shows the TIME information Temperature displayer Shows the TEMPERATURE information “Pause” In light when unit is in paused. “min.” Shows the time by “minute” format “hour” Shows the time by “hour” format Region B: Setting Turn to select a cooking function or adjust time Dial and temperature (or number of slices and...
- Page 12 Temp. Press the TEMP button, then use the dial to adjust the temperature. Region C: Daily programs Below programs are preset with default time and temperature as reference information. You can change these setting for the performance you need. More details, check “USING THE FUNCTIONS OF Region C” in next section.
- Page 13 More others food, manual setting by user as below. (References information. Settings can be changed base on food status) Food Temp. level Function level Time Vegetable 200°-230° Air Fry 20-25 min Fish Broil 10-15 min Bulk potato 200-230° Air Fry 20-30 min Chicken 200-230°...
- Page 14 3) Frozen meat / fish: Before cooked, defrost completely, and keep surface no water Step Turn dial to select functions. The default time and temperature settings will be displayed Step After the time and temperature are set, press dial down to begin works.
- Page 15 ● If “preheat” job finished but no cook within 30 min. When oven interior is down to set temperature, the “preheat” job will start again by self-acting. ● Once the door opened and closed, the cooking auto starts and this "Preheat" icon will disappear “THICK ROAST”...
- Page 16 ● There will be “Bi” sound in the first 50 seconds. Once sound, pull out the “Oven Rack” by Glove, roll over food by Clamp. Then push back the “Oven Rack” into oven and close the door to continue the cooking. This roll over processing brings even grill and need to be done quickly to keep high temperature oven inside.
- Page 17 ● If with large size frozen vegetable, meat, sea food, please change into “FRONZEN pizza” program since they need much more cooking time. ● For fresh pizza, to get better bubble, use hands to reduce dough ball thickness by stretching way (not roll way). ●...
- Page 18 “WOOD FIRED PIZZA” designed for hand made at home fresh pizza with around 5-10mm thin thickness and a thick edge. ● Default time 4:50 is 8’-10’ pizza (figure 10’ showing under the time in panel displayer). For more: time 4:00 is 6’-7’ pizza (figure 7’ showing) time 5:50 is 11’-13’...
- Page 19 7) Add some flour on the desk then use hand to reduce dough ball thickness by stretching way (not by roll pressing way). After crust finished, then add personal favor ingredient on it, such as cheese, ham, sauce…. 8）To get thin and crispy bubble / edge, leave around 4- 5cm crust edge not with any sauce or food, then you will get an amazing thin and crispy pizza USING THE FUNCTIONS OF Region D...
- Page 20 - If turn over food on accessories surface, use “Clamp”. ● During usage, you may meet below signals - Meanings: Preheat is finished. - Open the door, pull accessory out and place food on the accessory then push accessory back inside the oven. - Close the door, the program will start to cook by self- acting.
-
Page 21: Daily Cleaning
Step 5 Wait till “PREHEAT” finished with “Bi” sound, Displayer will show “FILL IN” and “OPEN” by shift. Step 6 Open the door and pull accessory out from oven, fill the food on the accessory. Step 7 Close the door, “program” icon into light, machine starts cooking directly. -
Page 22: Troubleshooting Guide
l Clean the main unit and the control panel with a damp cloth. TROUBLESHOOTING GUIDE Problem Potential cause and solution Should I add my For Region C: Daily programs ingredients * Oven interior preheating before programs before or after selected is suggested (at 160°C for 5 min.). preheating? * Accessories are NO NEED to place into oven for preheating (except “frozen pizza”... - Page 23 After preheat, • Clean up the left side of door and keep it in dry when I close since it is a magnetic switch here door, machine is • The door is too hot, need to wait for cool down not working •...
- Page 24 Steam coming This is normal. The door is vented to release out from the steam created by foods with a high moisture oven door content. Food is fried Try tossing/shaking the basket with food halfway unevenly. through the cooking time, but be careful not to burn yourself.
- Page 25 PROFESSIONAL PIZZA MAKER: Programs for 4 types ❶ Neapolitan pizza (like by “wooden fired”) ❷ Fresh pizza (“thin & crispy”) ❸ Crust pizza (easy D.I.Y) ❹ Frozen pizza (fastfood choose) PROFESSIONAL BEEF GRILL: indication for 4 steak level Medium rare (30% cooked) Medium (50% cooked) Medium well (70% cooked) Well done (100% cooked)
-
Page 26: Disposal Of Old Electrical Appliances
LIMITED WARRANTY Limited Warranty applies to purchases made from authorized ® retailers of TurboTronic ® TurboTronic Warranty coverage applies to the original owner and to the original product only and is not transferable. - Page 27 ANY WARRANTY OR AFTER PURCHASE SERVICE, SHOULD BE WITH A THIRD-PARTY COMPANY, FROM WHICH YOU ® PURCHASED THE PRODUCT. TURBOTRONIC PROVIDES THE WARRANTY ONLY TO OUR THIRD-PARTY SUPPLIERS. SINCE THIS PRODUCT IS NOT PURCHASED DIRECTLY ® FROM TURBOTRONIC BUT THROUGH ONE OF OUR...
- Page 28 ® process of shipping, altering, or repairing the TurboTronic product (or any of its parts) when the repair is performed by a ® repair person not authorized by TurboTronic 6. Products purchased, used, or operated outside Europe. Illustrations may differ from actual product.
