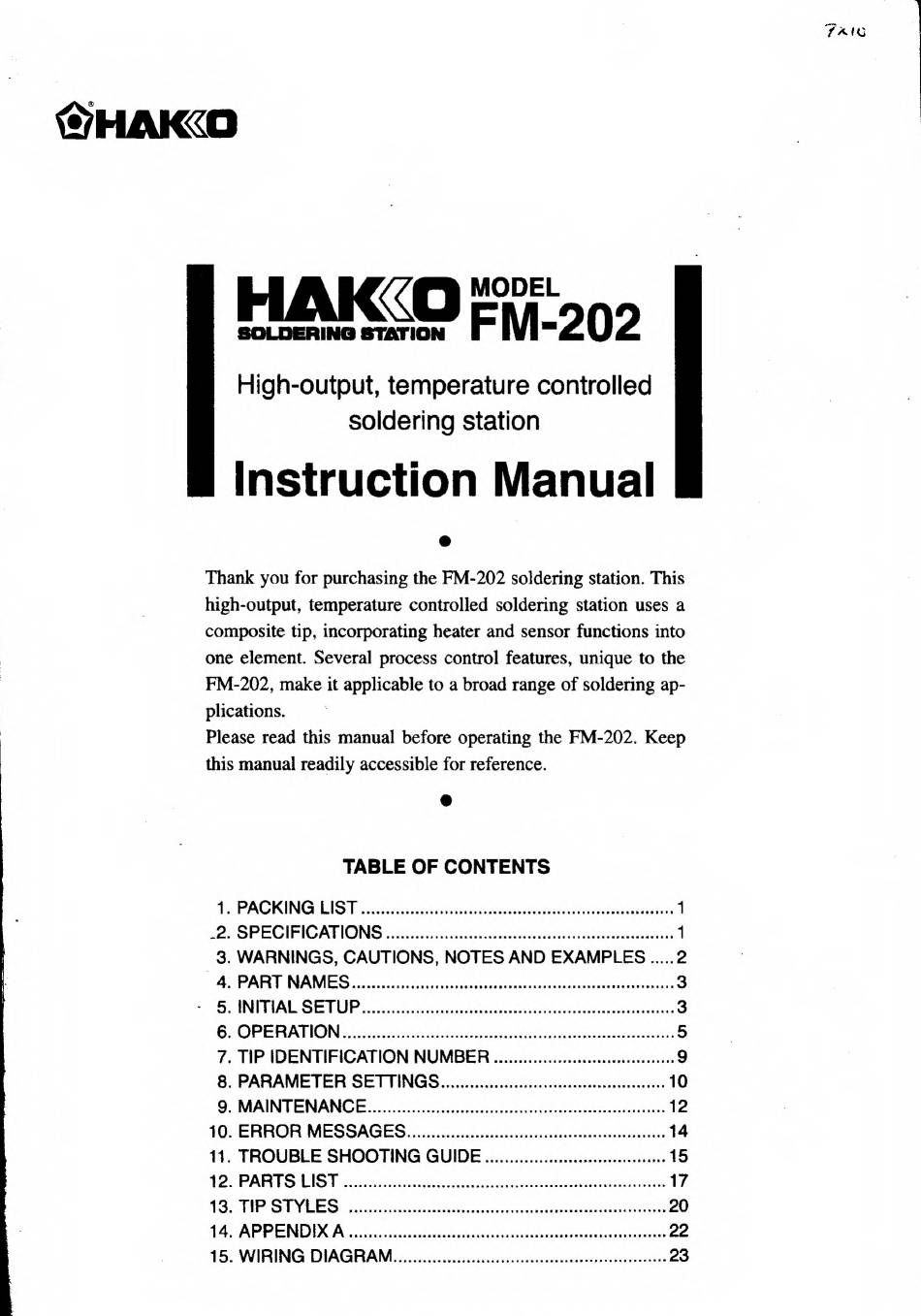

Hakko Electronics FM-202 Instruction Manual

rxic
^HAK<^
SOLDERINO STUTION
MODEL
FM-202
High-output, temperature controlled
soidering station
Instruction Manual
Thank you for purchasing the FM-202 soldering station. This
high-output, temperature controlled soldering station uses a
composite tip, incorporating heater and sensor functions into
one element. Several process Control features, unique to the
FM-202, make it applicable to a broad range of soldering ap-
plications.
Piease read this manual before operating the FM-202. Keep
this manual readily accessible for reference.
TABLE OF CONTENTS
1. PACKING LIST.1
.2. SPECIFICATIONS.1
3. WARNINGS, CAUTIONS, NOTES AND EXAMPLES.2
4. PART N AM ES.3
5. INITIAL SETUP.3
6. OPERATION.5
7. TIP IDENTIFICATION NUMBER.9
8. PARAMETER SETTINGS.10
9. MAINTENANCE.12
10. ERROR MESSAGES.14
11. TROUBLE SHOOTING GUIDE.15
12. PARTS LIST.17
13. TIPSTYLES .20
14. APPENDIXA.22
15. WIRING DIAGRAM.23
