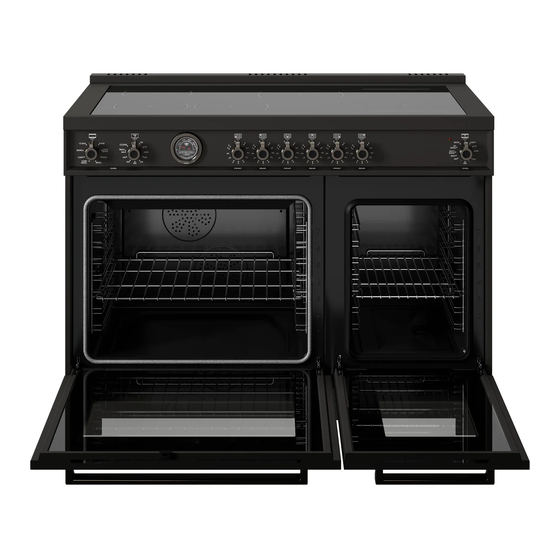

INSTALLATION MANUAL USER AND MAINTENANCE MANUAL FREESTANDING ELECTRIC RANGES, INDUCTION WORKTOP, ELECTRIC SELF CLEAN OVEN MODEL www.bertazzoni.com...
Page 3
Bertazzoni becomes a real pleasure. This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come.
Page 5
USER MANUAL VALIDITY The following manual is valid for all the product codes mentioned below: • PRO486IGFEPCAT • PRO486IGFEPXT • HER486IGFEPXT...
All other servicing should be referred to a qualified servicer. FOR THE INSTALLER: Before installing the Bertazzoni appliance, please read these instructions carefully. This appliance shall be installed in accordance with the manufacturer’s installation instructions.
WARNINGS DO NOT lift the appliance by the range’s control panel. The unit is heavy and should be handled accordingly. Proper safety equipment such as gloves and adequate manpower of at least two people must be used in moving the range to avoid injury and to avoid damage to the unit or the floor.
BEFORE INSTALLATION • This appliance shall only be installed by an authorized professional. • This appliance shall be installed in accordance with the manufacturer’s installation instructions. • This appliance must be installed in accordance with the norms & standards of the country where it will be installed.
VENTILATION PREPARATION This range will best perform when installed with Bertazzoni exhaust hoods. These hoods have been designed to work in conjunction with the Bertazzoni range and have the same finish for a perfect look. Before installation of the exhaust hood, consult local or regional building and installation codes for additional specific clearance requirements.
CLEARANCE DIMENSIONS INSTALLATION ADJACENT TO KITCHEN METAL HOOD CABINETS 48″(121,3 cm) This range may be installed directly adjacent to existing 25 1/2″(65 cm) and 31 1/2″ (80 cm) countertop high cabinets (36″ or 91.5 cm from the floor). 13″ (33.0 cm) For the best look, the worktop should be level with the 18″...
INSTALLATION REQUIREMENTS ELECTRICAL A properly-grounded horizontally- mounted electrical receptacle should be installed no higher than 3″ (7.6 cm) above the floor, no less than 2″ (5 cm) and no more than 8″ (20.3 cm) from the left side (facing product). Check all local code requirements.
INSTALLATION REQUIREMENTS ELECTRICAL CONNECTION WARNING ELECTRICAL SHOCK HAZARD Disconnect electrical power at the circuit breaker box or fuse box before installing appliance. Provide appropriate ground for the appliance. Use copper conductors only. Failure to follow these instructions could result in serious injury or death.
INSTALLATION REQUIREMENTS FOUR WIRES CONNECTION • Connect the L1 receptacle terminal to the incoming BLACK electrical supply wire (L1-hot wire) • Connect the L2 receptacle terminal to the incoming RED electrical supply wire (L2-hot wire) • Connect the NEUTRAL receptacle terminal to the incoming NEUTRAL (WHITE) electrical supply wire •...
INSTALLATION REQUIREMENTS WIRING DIAGRAM The electric wiring diagrams and schematics are attached behind the range, and should not be removed except by a service technician, then replaced after service.
INSTALLATION APPLIANCE INSTALLATION UNPACKING THE RANGE • Remove all packing materials from the shipping pallet but leave the adhesive-backed foam layer over brushed- metal surfaces to protect it from scratches until the range is installed in its final position. Only the film on the side panels should be removed before inserting the range between the cabinets.
INSTALLATION INSTALLING THE LEGS INSTALLING THE WORKTOP FRONTGUARD Bertazzoni ranges must be used only with the legs properly To increase the clearance between the front edge of the installed. worktop and the burners, it is possible to install a front guard for the worktop.
INSTALLATION INSTALLING THE ISLAND TRIM INSTALLING BACKGUARD (OPTIONAL) The island trim must be installed prior to operation of the The backguard must be installed prior to operation of the appliance appropriate ventilation oven appliance appropriate ventilation oven compartment. compartment. The island trim is only placed on the cooktop, remove all The backguard is an optional contact you dealer for buying tape and packaging before installing it.
INSTALLING THE ANTI/TIP DEVICES ANTI-TIP BRACKETS The anti-tip bracket shipped with the range must be properly secured to the rear wall as shown in the picture below. The height of the bracket from the floor must be determined after the range legs have been adjusted to the desired height and after the range has been levelled.
INSTALLATION CHECKLIST A qualified installer should carry out the following checks: Range mounted on its legs Island trim or Backguard attached according to instruction Anti-tip device properly installed Clearance to cabinet surfaces as manufacturer’s guideline...
FINAL PREPARATION • Before using the oven, remove any protective wrap from the stainless steel. • All stainless steel body parts should be wiped with hot, soapy water and with a liquid stainless steel cleanser. • If buildup occurs, do not use steel wool, abrasive cloths, cleaners, or powders! •...
We have a dedicated team of trained 866 905 0010 professionals to answer your needs. https://us.bertazzoni.com/more/support If you own a Bertazzoni appliance and need service in the If located in CANADA: US or Canada please use the following contact information: 800 561 7265 https://ca.bertazzoni.com/more/support...
WARNINGS TO PREVENT FIRE OR SMOKE DAMAGE Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and • Be sure all packing materials are removed from the situations that may occur. Common sense, caution, and appliance before operating it.
WARNINGS COOKING SAFETY • DO NOT cook directly on the oven bottom. This could result in damage to your appliance. Always use the oven racks when cooking in the oven. • Once the unit has been installed as outlined in the Installation Instructions, it is important that the fresh air Do not connect any appliances to the plugs above or near supply is not obstructed.
WARNINGS INDUCTION COOKING SURFACES • During and after use, DO NOT touch or let clothing or other flammable materials contact heating elements, areas near elements, or interior surfaces of oven until • Surface areas on or adjacent to the unit may be hot they have had sufficient time to cool.
WARNINGS WARNING-TIPPING HAZARD Children and adults can tip over the range if it has not been secured. This may lead to fatal injuries. To reduce the risk of the appliance tipping, it must be secured and connected using the anti-tip device according to the installation instructions.
WORKTOP AND KNOBS LAYOUT Fig. 22 Heating element Oven functions selector Oven thermostat Left front induction element Left rear induction element Central front induction element Central rear induction element Right front induction element Right rear induction element Auxiliary oven thermostat...
INDUCTION COOKTOP COOKING WITH INDUCTION the knob anticlockwise, option “A” is automatically deactivated. Underneath each cooking zone there is a coil called an POWER MODE inductor. The inductor generates a variable magnetic field using electric power. When a pan is placed inside this The power mode allows the user to operate each heating magnetic field, the high frequency current radiates directly zone continuously at the maximum power for a time of no...
INDUCTION COOKTOP PAN DETECTION Each cooking zone is equipped with a “pan detection” device, which ensures that cooking cannot start unless a suitable pan is present on the cooking zone and properly positioned. If the user attempts to switch on the cooking zone with the pan not positioned properly or with a pan which is not of suitable material, the symbol will appear a few seconds...
CAST IRON GRIDDLE The cast iron griddle is designed for maximum heat retention. Use extreme caution when operating the griddle to avoid burn hazard! SEASONING THE GRIDDLE Seasoning the griddle. Before using the griddle for the first time, clean the griddle thoroughly with hot and soapy water to remove any residue and protective coating.
ELECTRIC OVEN USING THE OVEN CAUTION When using the oven for the first time it 1) Place rack in desired position and shut the door. should be operated for 15-30 minutes at a 2) Select the oven function with the dedicated function temperature of about 500℉/260℃...
ELECTRIC OVEN PIZZA Turn the temperature knob to clean (see chapter SELF- CLEANING). Heat from lower bake element and circular element and SPECIAL FUNCTION/MORE airflow convection with fan. Use for cooking pizza, pastry or flat breads to get a DEHYDRATE perfectly cooked base.
ELECTRIC OVEN AUXILIARY ELECTRIC OVEN USING THE OVEN 1) Place rack in desired position and shut the door. Available on 48″ models only 2) The electric oven is controlled by an electric thermostat CAUTION combined with a switch. Select the oven function /temperature with the dedicated knob.
Page 38
ELECTRIC OVEN BROIL GETTING THE BEST RESULTS • Minimize opening and closing the oven door during Heat from the broil element only. operation. The BROIL setting creates intense heat from the top of the • Use the rack position recommended by the recipe and cavity.
Page 39
ELECTRIC OVEN BROILING RECOMMENDATION FOOD ITEM CONTROL APPROXIMATE COOKING SPECIAL INSTRUCTIONS TEMPERATURE SETTING TIME AND TIPS SELECTOR BEEF 500℉ fixed temperature 15 to 20 minutes Broil until no pink in center setting Ground Beef Patties, ½″ thick T-Bone Steak 500℉ fixed temperature 12 to 20 minutes Time depends on rareness of steak...
Page 40
ELECTRIC OVEN AIR FRY RECOMMENDATIONS ITEM TEMPERATURE TIME AMOUNT Potatoes Frozen French Fries Frozen 30-35 oz 420℉–440℉ 15-25 min 25-30 oz 420℉–440℉ 20-25 min French Fries, Seasoned Frozen Tater Tots 40–45 oz 400℉–430℉ 20-25 min Frozen Hash Browns 25–30 oz 420℉–440℉...
Page 41
ELECTRIC OVEN OVEN TEMPERATURE INDICATOR END/DELAY MODE 1) Press MODE. The range is equipped with a device to indicate the temperature in the middle of the oven. This let you check 2) Press the “<” and “>” buttons to select the desired the temperature inside the oven and adjust food cooking cooking time and press MODE.
Page 42
ELECTRIC OVEN MEAT PROBE SELF-CLEANING WARNING The meat probe allows you more control over how your foods are cooked by automatically disabling the specified Children should not be left alone or cooking mode when a dish's desired temperature, defined unattended in an area where appliances by the cook, has been reached.
Page 43
ELECTRIC OVEN BEFORE SELF CLEANING THE OVEN Wipe out large spillages, grease and any loose soil that can be easily removed. Remove any soil that is outside the door seal area. This appliance is designed to clean the oven interior and the portion of the door that faces the oven cavity.
Page 44
ELECTRIC OVEN TO SET/START SELF-CLEAN CYCLE 1) Check that the oven cavity is completely empty and the oven door correctly closed. 2) Turn the function control knob to CLEAN. 3) Turn the temperature control knob to CLEAN. After these 3 steps the cooling fans will activate, the oven door will lock automatically after 60 seconds and both the pre-heating and clean light indicators will turn on.
Page 45
ELECTRIC OVEN TELESCOPIC GLIDES The telescopic glides fit any shelf level and work with the wire shelves provided as standard equipment. FITTING THE GLIDES 1) Locate the two spring clips at the front and back of the glides. 2) Locate the pin on the glide that indicates the back. 3) Choose the right level and position the telescopic glide near the upper wire.
KEEPING YOUR BERTAZZONI CLEAN BURN HAZARD CLEANING THE BROILER PAN Make sure the heating elements are turned off and allowed Clean with detergent and hot water. For stubborn spots, to cool completely before any cleaning and/or maintenance use a soap-filled steel wool pad.
Please call our toll free line to identify service technicians in your area: If located in the USA 866 905 0010 https://us.bertazzoni.com/more/support If located in CANADA 800 561 7265 https://ca.bertazzoni.com/more/support REPLACING OVEN LIGHTS...
Page 48
SIMPLE MAINTENANCE TOP OVEN LIGHT Bulb type: halogen G9 120 V, 40 W • Make sure the heating elements are turned off and allowed to cool completely. Disconnect the appliance from the power supply. • Unscrew the glass cover and remove the halogen bulb. •...
GRILLING IN THE OVEN IS SLOW Here are answer to common problems you may experience. You are also welcome to call our toll free Customer Service line to troubleshoot any issue with your Bertazzoni. Have you selected the correct function? CONDENSATION FORMS IN THE OVEN...
866 905 0010 https://us.bertazzoni.com/more/support Bertazzoni’s liability on any claim of any kind, with respect to the goods and/or services provided, shall in no event If located in CANADA exceed the value of the goods or service or part thereof which gives origin to the claim.
• Use of the Product for anything other than its intended In no case shall Bertazzoni be held liable or responsible for purpose. damage to surrounding property, including furniture, • Repair service provided by a party other than a cabinetry, flooring, panels and other structures surrounding Bertazzoni authorized service agency.
Page 52
MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF BERTAZZONI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST BERTAZZONI BE GREATER IN AMOUNT...
