Magnavox MBH530 - Mini-Wireless Stereo Earphones Manual

LOCATION OF CONTROLS

Charging Station

1. Power On/Off Button
2. Charging port for L (Left) Earbud
3. Charging port for R (Right) Earbud
4. LED Indicators
5. Cover
6. Micro USB Port (For charger only)

Device

1. Button
2. Built-in Microphone
3. Contact for Recharging
4. LED Indicators

POWER SOURCE

The Charging station and Earbuds equipped built in Li-ion rechargeable battery; recharge it before use or when it is drained as below.

HOW TO CHARGE:
Charging Station:

1. Connect the Micro USB Plug from the supplied USB Connection Cable to the Micro USB Port on the rear of Charging Station.
2. Connect the full sized USB Plug from the supplied USB Connection Cable to the USB Port on the Computer or USB Charger. (Computer and USB Charger NOT supplied).
3. During charging, the Red LED Charging Indicator on the top of Charging Station will blink. When finished charging, it will stop blinking.

Earbuds:

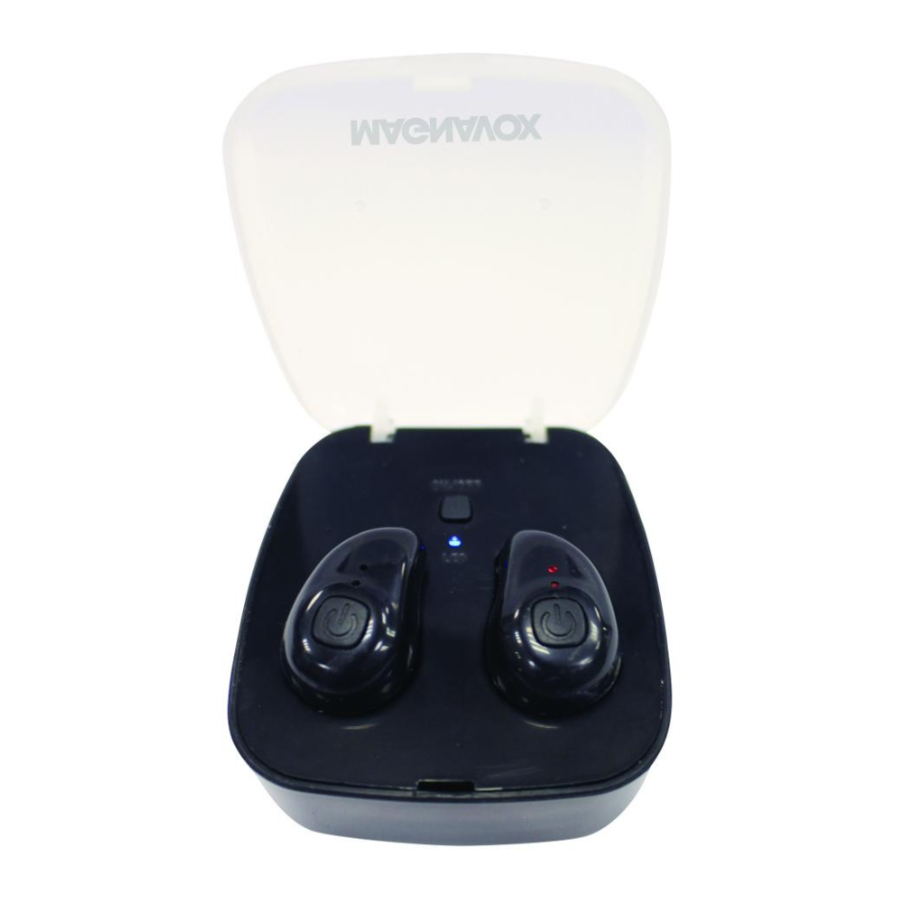

1. Open the Cover of the Charging Station. Place the L (Left) Earbud onto the L (Left) Charging Port. Place the R (Right) Earbud onto the R (Right) Charging Port as illustrated below:
2. Pressing the Power On/Off Button on the Charging Station to power on. The Blue LED Indicator will illuminate.
3. Close the cover to start charging, the Red Indicator on each Earbud will illuminate. When finished charging, the Indicator on each Earbud will turn off.
   (The finished charging time of each Earbud is difference. It is normal.)

Notes:

1. During charging the Charging Station, you can also charge the Earbuds through it at the same time.

2. Your battery will last longer if you're following these simple guidelines for caring and storing.
   1. Before first time use, charge the Charging Station and Earbuds approximately 0.5 hour until there is fully charged.
   2. Recharge and store the Charger and Earpieces within the temperature range of 5°C~35°C (40°F~95°F).
   3. Do not charge longer than 24 hours. Excessive charging or running the Charger and/or Earpieces until battery fully drains will damage battery. Battery life will be extended if you keep the battery fully charged.
   4. Battery life naturally shortens slowly over time.
   5. The rechargeable battery incorporated in this product is not user replaceable.

OPERATION

STEREO MODE

BT (Bluetooth) pairing:
To pair the R & L Earbuds to the BT Device in stereo mode for the first time (or repair to a new BT Device), follow the steps below:

1. Power on the R & L Earbuds by pressing the Button on each Earbud at the same time. Then:
   • The Red & Blue Indicators on the R Earbud will illuminate and blink.
   • The Blue Indicator on the L Earbud will illuminate and blink.
2. Power on the external BT Device and enter to BT searching mode. Start pairing following the on screen instructions from the external BT Device.
3. After being paired, the Red Indicator on the R Earpiece will no longer light up, the blinking frequency of Blue Indicator on the L Earpiece will slow down.
4. If pairing is complete you may now play music and answer calls with your external BT Device.
5. During playback, use the controls on the paired BT Device to adjust sound level; skip tracks; pausing play back or mute the sound as usual.
6. If the Earbuds is paired to a Cell Phone and a call is incoming during an active music session. Ringer sound will hearing from R Earbud. Pressing the Button on the R Earbud then speak to the built-in microphone to answer the call. When your call is complete, pressing the Button again to disconnect or end the call and resume to music playback.
7. When finished listening, pressing and holding the Button on either Earbud until Red Indicator is illuminate then release the button to shut off all Earbuds.

Notes:

• When the external BT Device searched the unit, our model number "MBH530" will appear on the display of external BT Device.
• If while pairing you are asked for a code please try "0000" or "1234".

Normal operation after pairing:

1. Power on the R & L Earbuds by pressing the Button on each Earpiece at the same time. The Red & Blue Indicators on the R Earpiece will illuminate and blink; the Blue Indicator on the L Earbud will illuminate and blink.
2. Power on the external BT Device and enter to BT searching mode. Wait a few seconds until the Earbuds automatically paired to the external BT Device. Then:
   • If R Earbud is using, the Red Indicator on it will turn off.
   • If L Earbud is using, the blinking frequency of Blue Indicator will slow down. (The Red Indicator on the R Earpiece will not light.)
3. After pairing is complete you may now play music and answer calls with your external BT Device.

MONO MODE

If using either R or L Earbud only, pairing the R (or L) Earbud to your BT Device as below:

R Earbud:
To use R Earbud only, pair it to the BT Device as below:

1. Power on the R Earbud by pressing the Button on it. The Red & Blue Indicators on it will illuminate and blink.
2. Power on the external BT Device and enter to BT searching mode. Start pairing following the on screen instructions from the external BT Device.
3. After paired, the Red Indicator on it will turn off.

L Earbud:
To use L Earbud only, pair it to the BT Device as below:

1. Power on the L Earbud by pressing the Button on it. The Blue Indicator on it will illuminate and blink.
2. Power on the external BT Device and enter to BT searching mode. Start pairing following the on screen instructions from the external BT Device.
3. After paired, the blinking frequency of the Blue Indicator will slow down.

Note: If more than one model numbers appear on the BT Device, pair the Earbud to the new model number.

Once paired:

1. If pairing is complete you may now play music and answer calls with your external BT Device.
2. During playback, you can use the controls on the paired BT Device to adjust sound level; skip tracks; pausing playback or mute the sound as usual.
3. If the Earbud is paired to a Cell Phone and a call is incoming during an active music session. Ringer sound will hearing from the Earbud. Pressing the Button on it then speak to the built-in microphone to answer the call. When your call is complete, pressing the Button to disconnect or end the call and resume to music playback.
4. When finished listening, pressing and holding the Button on the Earbud until Red Indicator is illuminate then release the button to shut off the Earbud.

Normal operation after pairing:

1. Power on the R (or L) Earbud by pressing the Button on it.
   • If R Earbud is using, the Red & Blue Indicators on it will illuminate and blink.
   • If L Earbud is using, the Blue Indicator on it will illuminate and blink.
2. Power on the external BT Device and enter to BT searching mode. Wait a few seconds until the Earbud automatically paired to the external BT Device. Then:
   • If R Earbud is using, the Red Indicator on it will turn off.
   • If L Earbud is using, the blinking frequency of the Blue Indicator will slow down.
3. After pairing is complete you may now play music and answer calls with your external BT Device.

RESET

If the Earbuds cannot shut off by press the Button after built-in battery was drained during listening; halt; abnormally operation...Etc. Place the Earbuds to Charging Station then recharge it, the Earbuds will be automatically reset.

TROUBLESHOOTING

Check the following before requesting service:

GENERAL SPECIFICATIONS

Power source:	Charging Station:	Built-in DC 3.7V, 250mAh (0.925WH) rechargeable Li-ion Battery; Recharge by DC 5V through Micro USB Port
	Earbuds	Built-in DC 3.7V, 40mAh (0.148WH) rechargeable Li-ion Battery per each Earbud; Recharge by the Charging Station
Impedance of the Earbuds:		2 x 10mW; 32ohm
Audio power:		4mW per channel (Total 8mW, RMS)
BT Version:		4.1
BT Operation Distance:		≧ 32 Feet in opera area

PACKAGE INCLUDES

1 x User's Manual
1 x Charging Station
2 x Earbuds
1 x USB Connection cable (For charging the Charging Station only)

SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE

LIMITED WARRANTY

Please ship your unit to:
Craig Electronics Inc.
1160 NW 163 Drive
Miami, FI33169

To Obtain Service on your Product
email: service@craigelectronics.com

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Magnavox MBH530 - Mini-Wireless Stereo Earphones Manual
