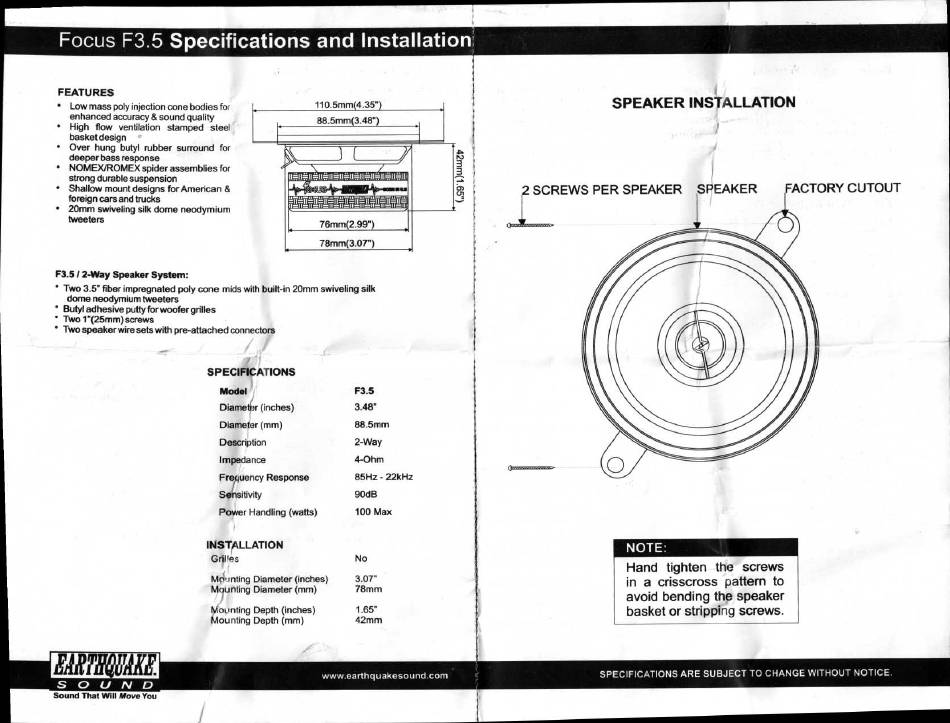

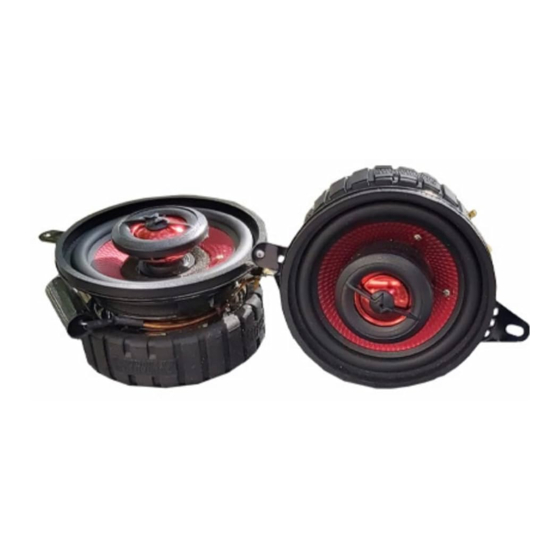

EarthQuake Focus F3.5 Installation

Dr'
0'
YE
SOUND
Sound That Will Move You
NOTE:
Hand tighten the screws
in a crisscross pattern to
avoid bending the speaker
basket or stripping screws.
SPEAKER INSTALLATION
2 SCREWS PER SPEAKER SPEAKER
FACTORY CUTOUT
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
76mm(2.99")
78mm(3.07")
110.5mm 4.35"
,11•1111
3
3
I
11=11-.11..1 =11=11 11 11-.11 11-
.
11:
Focus F3.5 Specifications and Installation
FEATURES
• Low mass poly injection cone bodies for
enhanced accuracy & sound quality
•
High flow ventilation stamped steel
basket design
• Over hung butyl rubber surround for
deeper bass response
•
NOMEX/ROMEX spider assemblies for
strong durable suspension
• Shallow mount designs for American &
foreign cars and trucks
• 20mm swiveling silk dome neodymium
tweeters
F3.5 / 2
-
Way Speaker System:
' Two 3.5" fiber impregnated poly cone mids with built-in 20mm swiveling silk
dome neodymium tweeters
• Butyl adhesive putty for woofer grilles
• Two 1"(25mm) screws
' Two speaker wire sets with pre-attached connectors
SPECIFICATIONS
Model
F3.5
Diameter (inches) 3.48"
Diameter (mm)
88.5mm
Description 2-Way
Impedance
4-Ohm
Frequency Response
85Hz - 22kHz
Sensitivity 90dB
Power Handling (watts)
100 Max
INSTALLATION
Grirras No
Mo. rating Diameter (inches) 3.07"
Mounting Diameter (mm) 78mm
Mounting Depth (inches)
1.65"
Mounting Depth (mm)
42mm
