True TG1R-1G Specifications

2001 East Terra Lane • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# (636)272-9471
Model:
TG1R-1G
ROUGH-IN DATA
Capacity
(Cu. Ft.)
Model Doors
(liters)
TG1R-1G 1
† 3
Depth does not include 1 /
8
*
Height does not include 5"
T R
RUE EFRIGERATION
TM
MADE IN
U.S.A. U.S.A. .S.A.
®
SINCE 1945
8/06
TRUE FOOD SERVICE
EQUIPMENT, INC.

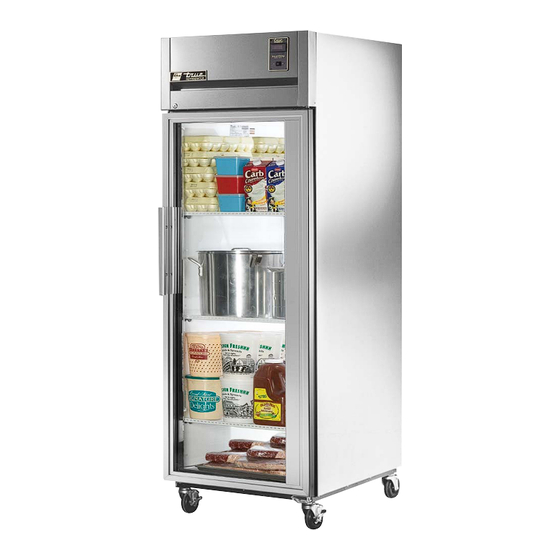

TG Series:
Reach-In Glass Door Refrigerator
Cabinet Dimensions
Shelves
L
31 3 29
878 737
" (35 mm) for door handle.
(127 mm) for castors, 6" (153 mm)
APPROVALS:
R
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
Chart dimensions rounded up to the nearest
(inches)
(mm)
† * HP
D H
7 1 1
34 / 78 / /
8 4 3
886 1988
for optional legs, and 1"
Qty:
TG1R-1G
Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility costs
and exceptional food safety.
Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in
food preservation.
300 series stainless steel
rainshield. Anodized quality
aluminum exterior sides, back
and bottom.
NSF approved, white aluminum
interior cabinet liner. 300 series
stainless fl oor with coved corners.
Energy effi cient, "Low-E", double
pane thermal glass door assembly
with extruded aluminum frame.
Patented integrated door light
(IDL) system.
Adjustable heavy duty, PVC
coated wire shelves.
Positive seal self-closing door
with 120° stay open feature.
Lifetime guaranteed door hinges.
Entire cabinet structure is
foamed-in-place using high
density, CFC free, polyurethane
insulation.
Specifi cations subject to change without notice.
1
/ " (millimeters rounded up to next whole
8
NEMA
Voltage Amps Confi g.
115/60/1 9.0 5-15P
(26 mm) for system mechanical components.
AVAILABLE AT:
AIA #
SIS #
number).
Cord Crated
Length Weight
(total ft.) (lbs.)
(total m) (kg)
9 410
2.74 186
