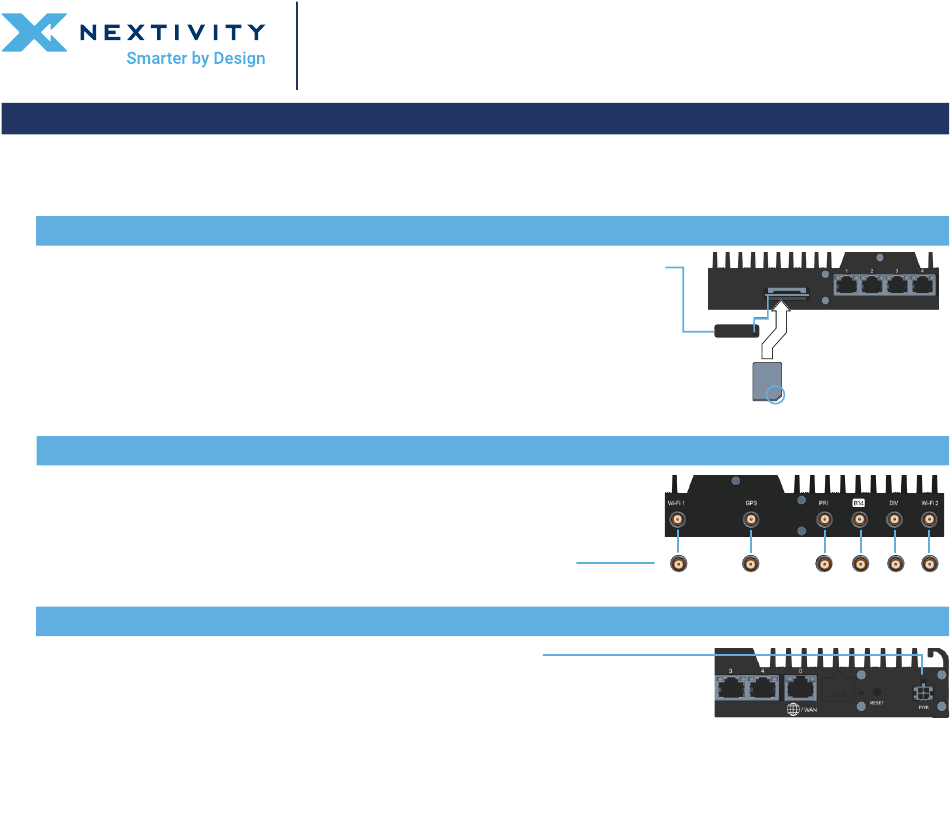

NEXTIVITY SHIELD MegaFi Quick Start Manual

•
High Power MegaFi Router
•
Locking DC power cable
•
SIM Ejector Tool
1 1
1.
If your Nextivity Partner has preinstalled the SIM, skip to the 'Connect Antennas to the Router' step.
2.
Remove the SIM card cover by pressing a thumbnail or flathead screwdriver in the gap between the
metal and plastic cover located on the left side of the unit as shown. You should now see the edge
of the silver SIM tray.
3.
Remove the SIM tray with the included SIM Ejector Tool by inserting the tool into the hole on the
SIM tray; the tray should pop partway out. Remove the SIM tray completely.
4.
Insert your activated SIM into the tray. Note that the tray is notched so the card can only be
inserted the correct way. Press the cover back into place.
2 2
Connect the antenna leads labeled Wi-Fi 1, GPS, LTE 1, B14, LTE 2, and Wi-Fi 2 to the corresponding
connectors on the MegaFi. Please note, connecting antennas incorrectly may damage the antenna or
the MegaFi. The antenna lead labeled LTE 1 will connect to the PRI port, and the lead labeled LTE 2 will
connect to the DIV port. Other leads will connect to the ports as labeled.
3 3
Connect the DC power cable to the port labeled PWR on the side of the device.
1.
Connect the DC power cable to your DC power source.
2.
Note: Red = + Positive; Black = - Negative; Orange = Ignition Sense; Blue = GPIO or Sleep Sense
SHIELD MegaFi Mobile Kit
Quick Start Guide

Included in the Box

•
Roof mount 6-in-1 antenna includes 3x cellular, 2x Wi-Fi and 1x GPS connections
•
Ethernet cable
•
Quick Start Guide for quick router configuration and connection

Install the SIM

Connect Antennas to the Router

Corresponding connectors

Connect Power to the Router

SIM
Wi-Fi 1 GPS LTE 1 B14 LTE 2 Wi-Fi 2
