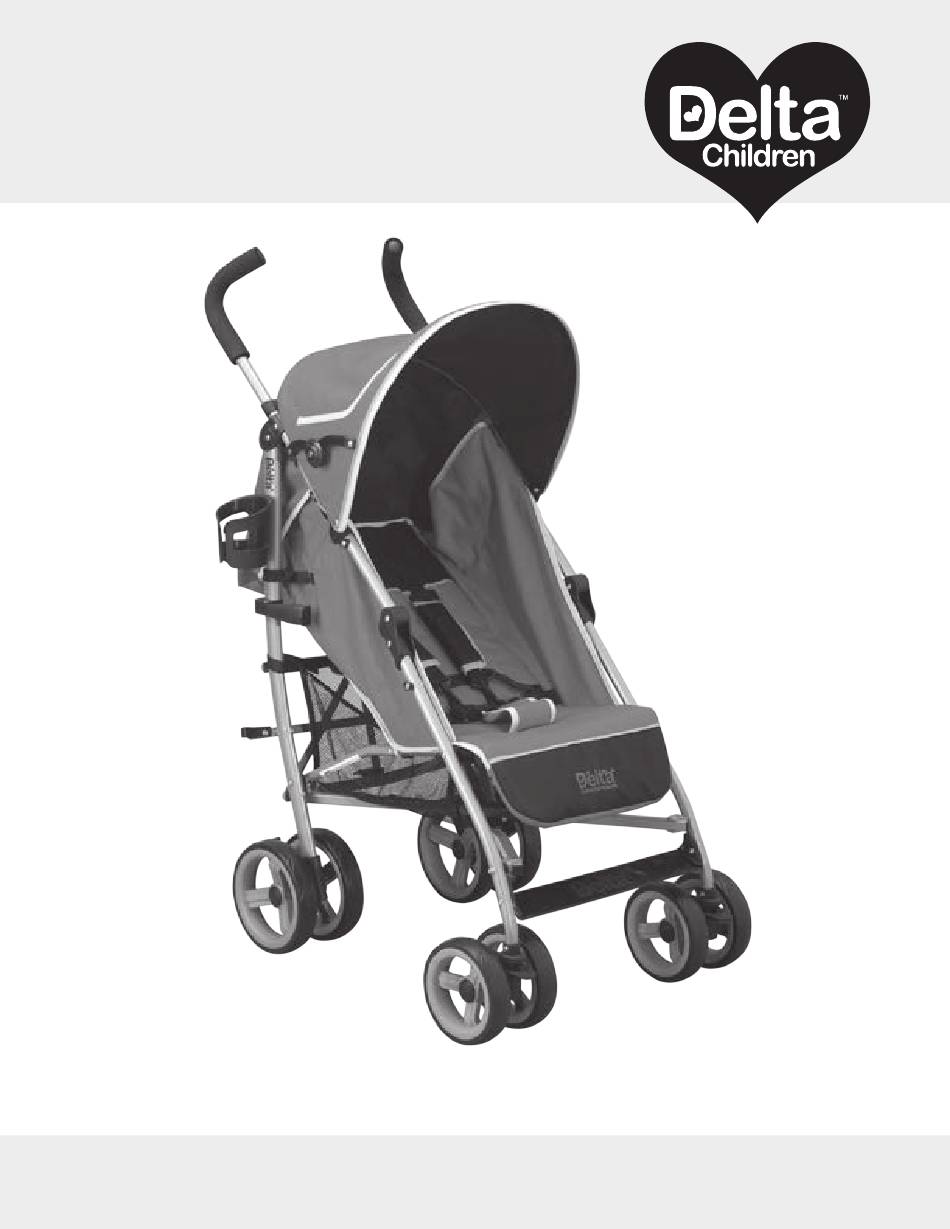

ALPHA ELITE STROLLER
11504-XXX AESV1
ASSEMBLY INSTRUCTIONS
ADULT ASSEMBLY REQUIRED
IMPORTANT: Read all instructions before assembly and use of the product.
Keep the instructions for future reference.
Customer Care Tel. 1-(800)-377-3777
Styles and colors may vary
(A)
www.DeltaChildrensProducts.com
DCP Cat # 05-29-13-V1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALPHA ELITE 11504 AESV1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Delta Children ALPHA ELITE 11504 AESV1 Series

Summary of Contents for Delta Children ALPHA ELITE 11504 AESV1 Series

  • Page 1 ALPHA ELITE STROLLER 11504-XXX AESV1 ASSEMBLY INSTRUCTIONS ADULT ASSEMBLY REQUIRED Styles and colors may vary IMPORTANT: Read all instructions before assembly and use of the product. Keep the instructions for future reference. www.DeltaChildrensProducts.com Customer Care Tel. 1-(800)-377-3777 DCP Cat # 05-29-13-V1...

  • Page 2: Consumer Information

    Consumer Information • P lease read these instructions before assembly and use of this product. • A dult assembly is required. WARNING • U se only for a child who weighs less than 45 lbs (20.41 kg). • M aximum weight limit for the storage bag is 3 lbs (1.36 kg). • M aximum weight limit for the cup holder is 3 lbs (1.36 kg). Prevent serious injury from falls • P roduct features and decorations may vary from the photo. or sliding out: • ALWAYS use the restraint system. Care • Only children who have developed enough • T he plastic parts may be wiped clean using a mild cleaning solution and upper body control to sit without leaning damp cloth. Hand wash fabric with damp cloth and air dry. forward can use the front seat in the Do not use bleach. upright position. • T o keep your stroller wheels from squeaking, use a silicone or graphite based lubricant.
  • Page 3 Parts Assembly IMPORTANT! Please remove all parts from the package and identify IMPORTANT! Before assembly or each use, inspect this product for them before assembly. damaged hardware, loose joints, missing parts or sharp edges. DO NOT use if any parts are missing or broken. Contact manufacturer for replacement parts and instructions if needed. Never substitute parts. Latch Clip Side Frame • L ocate the latch clip on the side frame of the stroller. • P ull to release the latch clip. Front Swivel Wheels X 2 Attaching Front Swivel Wheels • Locate the legs on the front of the stroller. (as pictured above) • Attach wheel unit to the front of the stroller leg, make sure you hear a “snap”. • Check to make sure the wheel units are properly attached. Cup Holder • Repeat on opposite side. Customer Service www.DeltaChildrensProducts.com Tel. (800) 377-3777...

  • Page 4: Setup And Use

    Assembly Setup and Use Latch Clip Side Frame To Unfold • L ocate the latch clip on the side of the stroller. • P ull to release the latch clip on the side of the stroller. • P osition the stroller upright on its rear wheels. • G rasp a handle with one hand. With your other hand, push down on the front of the stroller to open. primary locking mechanism • P osition the stroller upright on its rear wheels. • G rasp a handle with one hand. With your other hand, push down on the Opening Stroller front of the stroller to open. • With your hand around the grip, press down on the primary locking mechanism until it “clicks” into place. • Release the secondary lock, by pressing the pedal placed on the right side of the stroller’s frame with your foot. Customer Service www.DeltaChildrensProducts.com Tel. (800) 377-3777...
  • Page 5 Setup and Use WARNING Prevent serious injury from falls or sliding out: • ALWAYS use the restraint system. • Only children who have developed enough upper body control to sit without leaning forward can use the front seat in the upright position. • NEVER leave child unattended. • DO NOT use the storage bag to carry children. To prevent product from tipping over: • DO NOT exceed the maximum storage weight limit of 3 lbs (1.36 kg) in the storage bag. • DO NOT exceed the maximum storage weight primary locking limit of 3 lbs (1.36 kg) in the cup holder. mechanism • DO NOT place additional items on this product, except as recommended in Opening Stroller the instructions. • With your hand around the grip, press down on the primary locking mechanism until it “clicks” into place. To prevent injury: • Release the secondary lock, by pressing the pedal placed on the right • Make sure all body parts are clear of the side of the stroller’s frame with your foot.
  • Page 6 Setup and Use TO UNLOCK CANOPY OPEN CANOPY CLOSED Canopy Adjustment • T he canopy can be adjusted to the open or closed position. TO LOCK TO LOCK Front Swivel Wheel base To lock the swivel wheel base: • L ift both swivel pedals until they “click” into the locked position. Make sure the brake pedals are pressed down completely. To unlock the swivel wheel base: • P ress both swivel pedals down until they “click” into the unlocked position.

  • Page 7: Securing Child

    Securing Child Waist Belt Waist Belt TIGHTEN Crotch Belt Securing Child • P lace your child in the stroller. Position the crotch belt between your child’s legs. • P ull shoulder straps over child’s arm and shoulder and fasten both strap ends to the restraint system. • F asten both waist belts to the buckle on each side of the crotch belt. Make sure you hear a “click” on both sides. • C heck to be sure the restraint system is securely attached by pulling it away from your child. The restraint system should remain attached. Restraint System LOOSEN To tighten the waist belts and shoulder straps: • F eed the anchored end of a waist belt up through the buckle to form a loop . Pull the free end of the waist belt...
  • Page 8 Storage Secondary lock • L ift the front wheels toward the closed canopy. primary locking mechanism Latch Clip Side Frame • S lide the latch clip onto the side frame to secure in the folded storage position. Hint: Make sure canopy is in the closed position before folding the stroller. • W ith your hand , Pull up on the primary locking mechanism. • W ith your foot, step on the secondary lock. • S torage position. Customer Service www.DeltaChildrensProducts.com Tel. (800) 377-3777...
  • Page 9 Manufactured for and distributed by: 114 West 26th Street, New York, NY 10001 Customer Service Tel. 1-(800)-377-3777 www.DeltaChildrensProducts.com customerservice@DeltaChildrensProducts.com MADE IN CHINA...
