True GDM-5F-PT Specifications

2001 East Terra Lane • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl Fax# (001)636-272-7546
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Model:
GDM-5F-PT
ROUGH-IN DATA
Capacity
(Cu. Ft.)
Model Doors
GDM-5F-PT 2
† 3
Depth does not include 1 /
8
T R
RUE EFRIGERATION
TM
MADE IN
U.S.A. U.S.A. .S.A.
®
SINCE 1945
1/07
TRUE FOOD SERVICE
EQUIPMENT, INC.

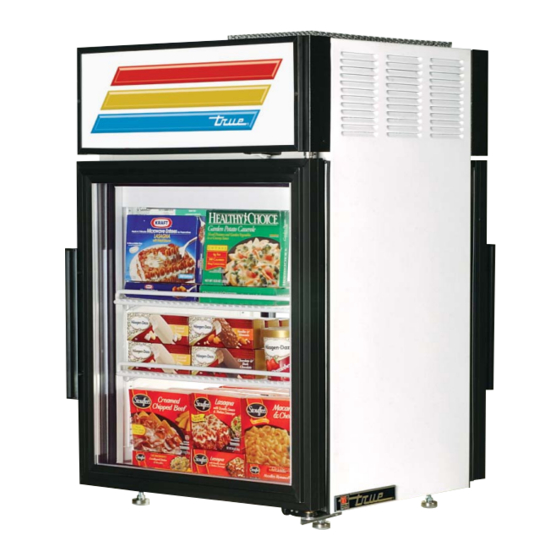

Glass Door Merchandiser:
Swing Door Pass-Thru Freezer
Cabinet Dimensions
L
Shelves
(liters)
5.0 2 24
142 610
"
(35 mm) each side for door handles.
APPROVALS:
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
Chart dimensions rounded up to the nearest
(inches)
(mm)
†
D H
HP
7 5 1
23 / 37 / / 115/60/1
8 8 2
607 956
Qty:
GDM-5F-PT
The world's #1 manufacturer of
glass door merchandisers.
Designed using the highest
quality materials and components
to provide the user with an
attractive, point of purchase
merchandiser that brilliantly
displays frozen food and ice
cream, resulting in high impulse
sales.
Pass-thru design allows for
convenient rear loading and front
access for serving.
Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C). Ideal for ice cream and
frozen food products.
Exterior - non-peel or chip white
laminated vinyl; durable and
permanent.
Interior - attractive, NSF
approved, white aluminum
interior liner with 300 series
stainless steel fl oor.
Self closing doors. Positive seal,
torsion type closure system.
Triple pane thermal glass door
assemblies with extruded
aluminum frames.
Entire cabinet structure is
foamed-in-place using high
density, CFC free, polyurethane
insulation.
Specifi cations subject to change without notice.
1
/ " (millimeters rounded up to next whole
8
NEMA
Voltage Amps Confi g.
9.4 5-15P
AVAILABLE AT:
AIA #
SIS #
number).
Cord Crated
Length Weight
(total ft.) (lbs.)
(total m) (kg)
9 220
2.74 100
