- Page 1 GUIDE D’INSTALLATION ET D’UTILISATION FR GUIDE FOR INSTALLATION AND USE EN GUIA DE INSTALAÇÃO E DE UTILIZAÇÃO PT Table de cuisson Cooking hob Placa de cozinha BPG6210* BPG6413*...
- Page 2 Dear Customer, You have just acquired a BRANDT product and we would like to thank you. We have designed and made this product with you, your lifestyle and your requirements in mind so that it meets your expectations. We have devoted our know-how, our innovative spirit and the passion that has been guiding us for over 60 years.
-
Page 3: Table Of Contents
TABLE OF CONTENTS • Safety recommendations ________________________________ 28 • Environmental protection ________________________________ 30 • Description of your appliance _____________________________ 31 1 / INSTALLING YOUR APPLIANCE • Proper positioning ______________________________________ 32 • Flush mounting ________________________________________ 32 • Tips for flush mounting _________________________________ 33 •... -
Page 4: Safety Recommendations
SAFETY RECOMMENDATIONS IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY AND RETAIN FOR FUTURE USE. This user guide is available for download on the brand’s website. — We have designed this fuel supplies (electricity and cooking hob for use by private gas) before any repairs. individuals in their homes. - Page 5 SAFETY RECOMMENDATIONS older, and by persons with reference information for your impaired physical sensorial or appliance, we recommend mental capacities, or without that you note it on the “After- experience or knowledge, if Sales Service Department and they are supervised or have Customer Relations”...
-
Page 6: Environmental Protection
DESCRIPTION OF YOUR APPLIANCE left • If a crack appears in the unattended, as this may cause surface glass, a fire. Do not attempt to disconnect your appliance extinguish a fire with water from the power supply to but switch off the appliance, avoid electric shock. -
Page 7: Description Of Your Appliance

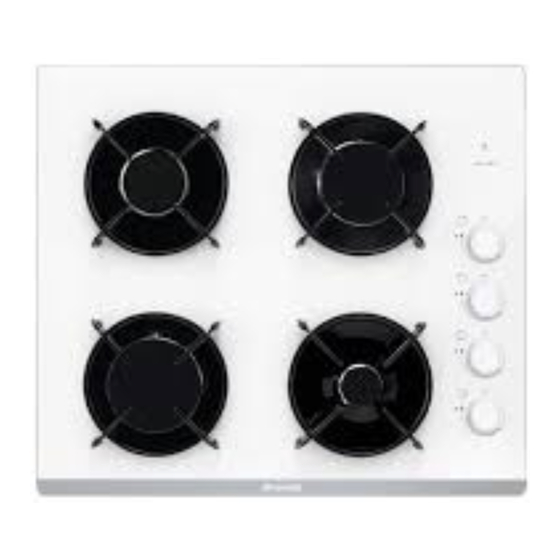

DESCRIPTION OF YOUR APPLIANCE • DESCRIPTION OF YOUR HOB Hob model: 4 gas burners support grid Spark plug Gasket Burner covers Thermocouple Burner head (model with safety device) Injector Knob ONSEIL This Guide to Installation and Use is valid for several models. Minor differences in details and fittings may emerge between your appliance and the descriptions provided. -
Page 8: Proper Positioning
1/ INSTALLONG YOUR APPLIANCE APPLIANCE Width Depth Thickness Model 56 cm 49 cm According 60 cm cabinet to cabinet standard 26,5 cm 49 cm According 30 cm cabinet to cabinet standard Dimensions 71 cm 52,2 cm 5 cm 60 cm total above the work... -
Page 9: Installing Your Appliance
1/ INSTALLING YOUR APPLIANCE • TIPS FOR FLUSH MOUNTING • ELECTRICAL CONNECTION The appliance must be plugged in using a Underside view standardized power cable with 3 conductors of the housing each 1 mm² ( 1 ph + 1 N + ground) which must be connected to the 220~240 Volt network by means of a standardized IEC 60083 power socket or a single-pole cut-off... -
Page 10: Gas Connection
1 / INSTALLING YOUR APPLIANCE • GAS CONNECTION • Preliminary comments If your hob is installed above an oven or if proximity to other heating elements poses a threat of overheating the connection, you must insulate the cable in a rigid pipe. If a hose or soft pipe (in the case of butane gas) is used, it should not come into contact with a moving part of the cabinet, nor should it pass through a location that may become blocked. - Page 11 1 / INSTALLING YOUR APPLIANCE Gas supplied by tank or In an existing system, a soft pipe fitted with • cylinder (butane/propane) clamps whose service life is five years may be used. It is necessary in this case to use For your safety, you must choose from the an adaptor without forgetting to fit a three following connection options:...
-
Page 12: Changing The Gas Supply
1 / INSTALLING YOUR APPLIANCE • CHANGING THE GAS SUPPLY Each time you change the gas supply, tick the box corresponding to the new gas ARNING level on the label found in the plastic bag. Your appliance is sold pre-set for Refer corresponding “Gas... - Page 13 1 / INSTALLING YOUR APPLIANCE • Adjust the hob connections: they are located underneath the knobs (Fig. 04). — Proceed one tap at a time. Knob — Remove the knobs and the gaskets by pulling them up. - Switching from natural butane/propane gas Ring...
- Page 14 1 / INSTALLING YOUR APPLIANCE • Markings on the injectors The adjacent table shows where the Example: injectors are positioned on your appliance according to the type of gas used. Injector marking 95 Each number is marked on the injector. MODELS* 60cm Hob 3 gas burners + 1 electric plate Butane gas/...
- Page 15 1 / INSTALLING YOUR APPLIANCE • Gas properties FR - GB -PT FR - GB - PT - DK Appareil destiné à être installé en : Butane Propane Butane Propane FR......cat : II2E+3+ naturel naturel GB - PT ......cat : II2H3+ DK .......cat : II2H3B/P Hourly rate below: 37 mbar 20 mbar 25 mbar 30 mbar 30 mbar...
-
Page 16: Using Your Appliance
2 / USING YOUR APPLIANCE • DESCRIPTION OF THE TOP Hob model: 4 gas burners Hob model: 2 gas burners Model: 3+1 electric Semi-fast burner 1.50 kW (*) Auxiliary burner 0.85 kW (*) High-speed burner 2.25 kW (*) Super-fast burner 3.10 kW (*) Electric plate diameter 145 - 1.5 kW ) Power obtained with natural gas G20... -
Page 17: Switching On Gas Burners
2 / USING YOUR APPLIANCE • SWITCHING ON GAS BURNERS Each burner is supplied by a tap which can be opened by pressing it an turning it in a counterclockwise motion. ● The point “ ” corresponds to a closed tap. —... -
Page 18: Cookware To Be Used With Gas Burners
2 / USING YOUR APPLIANCE • COOKWARE TO BE USED WITH GAS BURNERS • Which burner should you use depending on your cookware? Diameter of the cookware Diameter of the cookware 18 to 28 cm High-speed Searing foods speed 16 to 22 cm 12 to 20 cm Semi-fast Sauces - Reheating... -
Page 19: Cookware For Electric Plate
2 / USING YOUR APPLIANCE • MOST SUITABLE COOKWARE USED WITH ELECTRIC PLATE (depending on model) Use cookware with flat bottoms that are perfectly flush with the surface of the burner: — in stainless steel with a thick, tri-metal or “sandwich” bottom, —... -
Page 20: Daily Care Of Your Appliance
3 / DAILY CARE OF YOUR APPLIANCE • MAINTAINING YOUR APPLIANCE PRODUCTS/ACCESSORIES WHAT TO DO MAINTENANCE..TO BE USED In the event that the spark plugs become Of the spark . Small, hard-bristled brush. plugs and soiled, clean them using a small, hard- . -
Page 21: Special Messages, Difficulties
4 / SPECIAL MESSAGES, DIFFICULTIES • DURING OPERATION YOU OBSERVE THAT: WHAT YOU SHOULD DO: • Lighting . Check the electrical connection of your appliance. . Check that the spark plugs are clean . Check that the burners are clean and properly assembled . -
Page 22: Gas Cooking Guide
5 / COOKING CHART • PREPARATIONS TIMES SUPER FAST SEMI- AUXILIARY FAST FAST SOUPS Bouillons 8-10 minutes Thick soups FISH Court-bouillon 8-10 minutes Grilling 8-10 minutes SAUCES Hollandaise, béarnaise Béchamel, aurore 10 minutes VEGETABLES Endives, spinach Cooked peas 25-30 minutes Provençale tomatoes 15-20 minutes Golden brown potatoes... -
Page 23: After-Sales Service
This information appears on the manufacturer’s nameplate (Fig. 01). BRANDT BPG*/* Fig. 01 ORIGINAL PARTS During any servicing, request the use of genuine replacement parts only. Brandt France - SAS with share capital of €100.000.000 RCS Nanterre 801 250 531.
