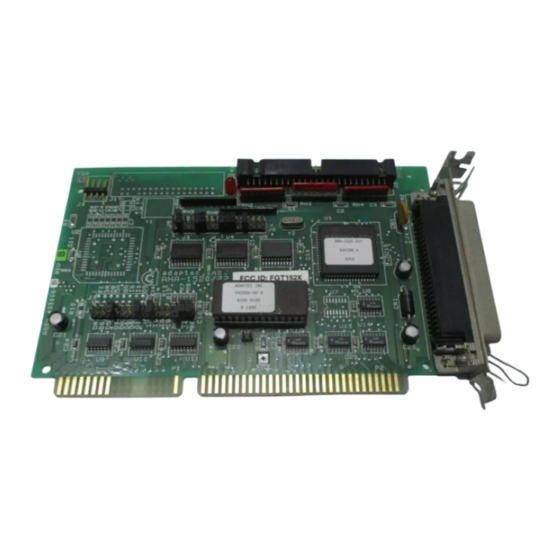

Adaptec AHA-1520 Installation Manual

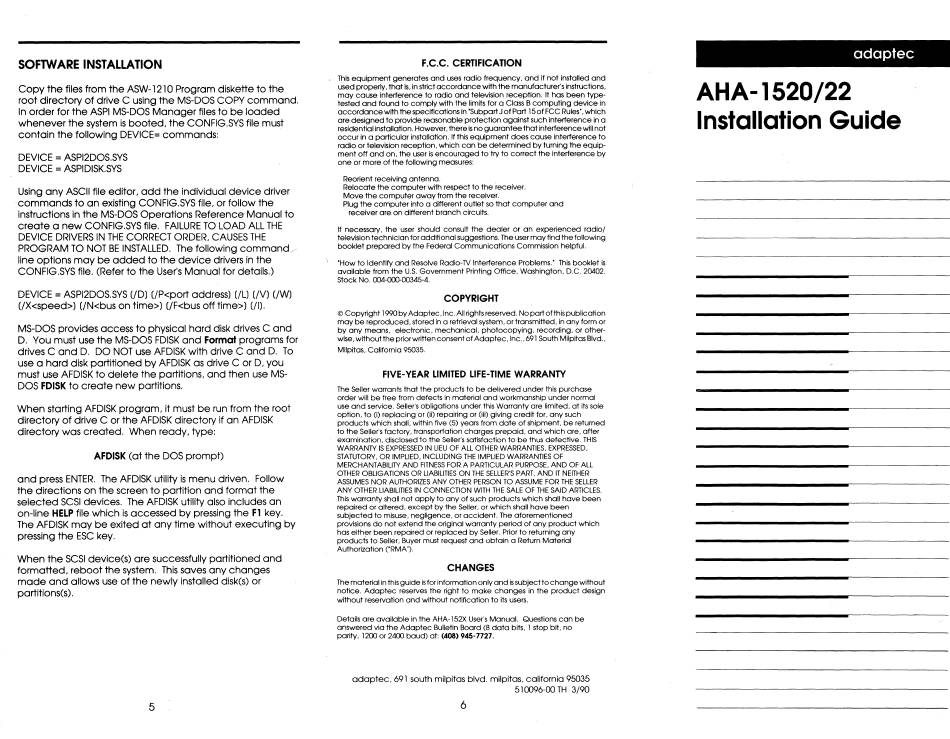

SOFTWARE INSTALLATION
Copy the files from the ASW-1210 Program diskette to the
root directory of drive C using the MS-DOS COPY command.
In order for the ASPI MS-DOS Manager files to be loaded
whenever the system is booted, the CON FIG.SYS file must
contain the following DEVICE= commands:
DEVICE = ASPl2DOS.SYS
DEVICE = ASPIDISK.SYS
Using any ASCII file editor, add the individual device driver
commands to an existing CONFIG.SYS file, or follow the
instructions in the MS-DOS Operations Reference Manual to
create a new CONFIG.SYS file. FAILURE TO LOAD ALL THE
DEVICE DRIVERS IN THE CORRECT ORDER, CAUSES THE
PROGRAM TO NOT BE INSTALLED. The following command.
line options may be added to the device drivers in the
CONFIG.SYS file. (Refer to the User's Manual for details.)
DEVICE = ASPl2DOS.SYS (/DJ (/P<port address) (/L) (/VJ (/WJ
(/X<speed>) (/N<bus on time>
l
(/F<bus off time>
l
(/I).
MS-DOS provides access to physical hard disk drives C and
D. You must use the MS-DOS FDISK and
Format
programs for
drives C and D. DO NOT use AFDISK with drive C and D. To
use a hard disk partitioned by AFDISK as drive C or D, you
must use AFDISK to delete the partitions, and then use MS-
DOS FDISK to create new partitions.
When starting AFDISK program, it must be run from the root
directory of drive C or the AFDISK directory if an AFDISK
directory was created. When ready, type:
AFDISK (at the DOS prompt)
and press ENTER. The AFDISK utility is menu driven. Follow
the directions on the screen to partition and format the
selected SCSI devices. The AFDISK utility also includes an
on-line HELP file which is accessed by pressing the Fl key.
The AFDISK may be exited at any time without executing by
pressing the ESC key.
When the SCSI device(s) are successfully partitioned and
formatted, reboot the system. This saves any changes
made and allows use of the newly installed disk(s) or
partitions(s).
5
F.C.C. CERTIFICATION
This equipment generates and uses radio frequency. and if not inst.ailed and
used properly, that is. in strict accordance with the manufacturer's instructions.
may cause interference to radio and television reception. It has been type-
tested and found to comply with the limits for a Class B computing device in
accordance with the specifications in 'Subpart J of Part 15 of FCC Rules'. which
are designed to provide reasonable protection against such interference in a
residential installation. However. there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to
radio or television reception. which can be determined by turning the equip-
ment off and on. the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient receiving antenna.
Relocate the computer with respect to the receiver.
Move the computer away from the receiver.
Plug the computer into a different outlet so that computer and
receiver are. on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio/
television technician for additional suggestions. The user may find the following
booklet prepared by the Federal Communications Commission helpful.
'How to Identity and Resolve Radio-N Interference Problems.· This booklet is
available from the U.S. Government Printing Office. Washington. D.C. 20402.
Stock No. 004-000-00345-4.
COPYRIGHT
©Copyright 1990 by Adaptec. Inc. All rights reserved. No part of this publication
may be reproduced, stored in a retrieval system. or transmitted. in any form or
by any means. electronic. mechanical. photocopying. recording, or other-
wise. without the prior written consent of Adaptec. Inc .. 691 South Milpitas Blvd ..
Milpitas. California 95035.
FIVE-YEAR LIMITED LIFE-TIME WARRANTY
The Seller warrants that The products to be delivered under this purchase
order will be free from defects in material and workmanship under normal
use and service. Seller's obligations under this Warranty are limited. at its sole
option. to (i) replacing or (ii) repairing or (iii) giving credit for. any such
products which shall. within five (5) years from date of shipment. be returned
to the Seller's factory. transportation charges prepaid. and which are. after
examination. disclosed to the Seller's satisfaction to be thus defective. THIS
WARRANTY IS EXPRESSED IN LIEU OF ALL OTHER WARRANTIES. EXPRESSED.
STATUTORY. OR IMPLIED. INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AND OF ALL
OTHER OBLIGATIONS OR LIABILITIES ON THE SELLER'S PART. AND IT NEITHER
ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR THE SELLER
ANY OTHER LIABILITIES IN CONNECTION WITH THE SALE OF THE SAID ARTICLES.
This warranty shall not apply to any of such products which shall have been
repaired or altered. except by the Seller. or which shall have been
subjected to misuse. negligence. or accident. The aforementioned
provisions do not extend the original warranty period of any product which
has either been repaired or replaced by Seller. Prior to returning any
products to Seller. Buyer must request and obtain a Return Material
Authorization C'RMA").
CHANGES
The material in this guide is for information only and is subject to change without
notice. Adaptec reserves the right to make changes in the product design
without reservation and without notification to its users.
Details are available in the AHA- l52X User's Manual. Questions can be
answered via the Adaptec Bulletin Board (8 data bits. l stop bit. no
parity. 1200 or 2400 baud) at: (408) 945-7727.
adaptec. 691 south milpitas blvd. milpitas. california 95035
510096-00 TH 3/90
6
adaptec
AHA-1520/22
Installation Guide
