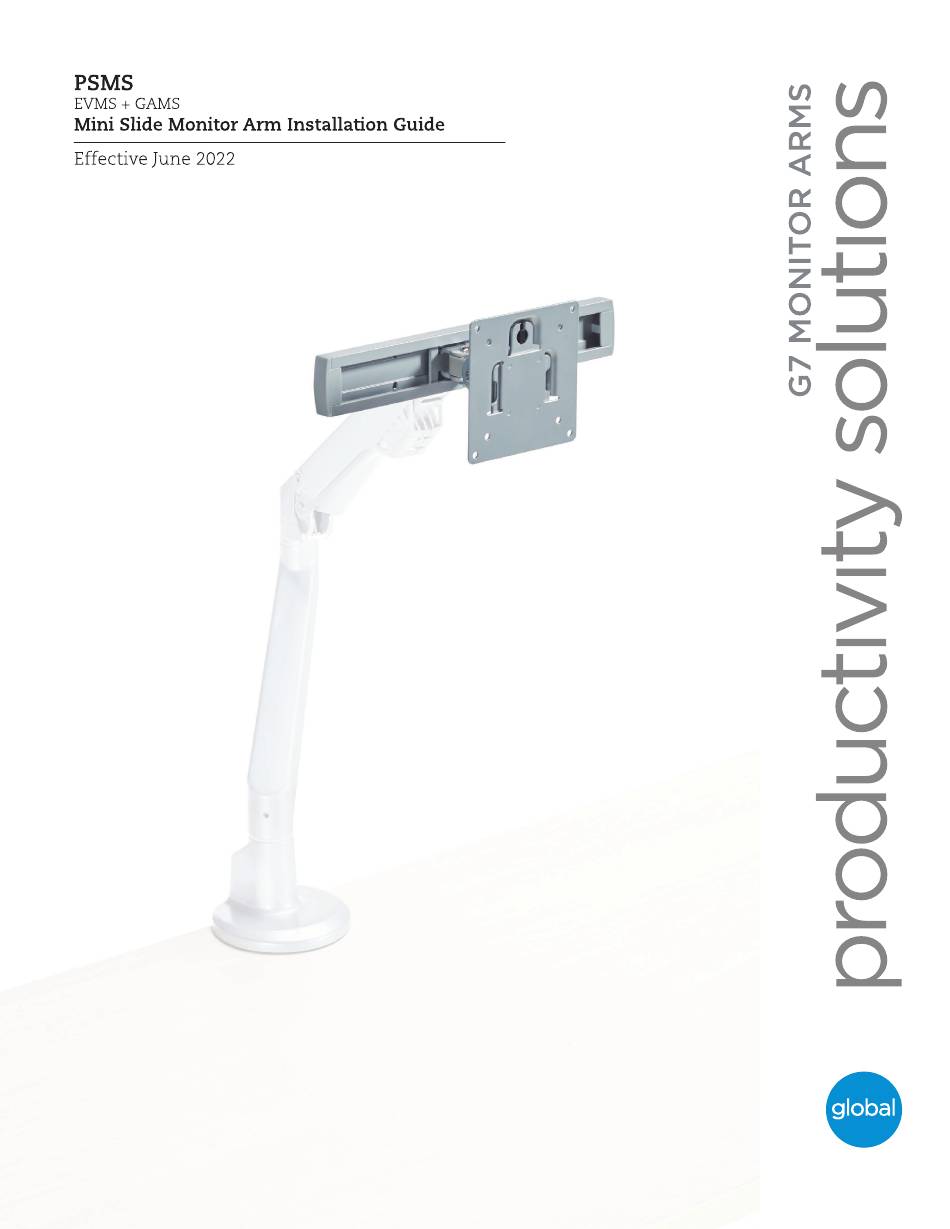

- Page 2 MONITOR ARM INSTALLATION GUIDE PSMS OVERVIEW (also valid for EVMS/GAMS) LOADING CAPACITY: 2.2 - 13.2 lbs. per monitor SCREEN SIZE: 17”- 29” PARTS LIST Components 1. Mini Slide (x1) 2. VESA Plate (x1) Parts list- M4X9 Screw Parts in the Regular Screw Bag Parts list- M4X12 Screw (X8) A.
- Page 3 MONITOR ARM INSTALLATION GUIDE STEP 1 - REMOVE THE ORIGINAL VESA MOUNT Loosen the connecting screw. Take down the original VESA mount component. Loosen STEP 2 - INSTALL THE MINI SLIDE Insert the Mini Slide. Tighten the connecting screw. Place the metal spacer (E) Tighten Parts list- M4X9 Screw STEP 3 - VESA PLATE INSTALLATION...
- Page 4 MONITOR ARM INSTALLATION GUIDE STEP 4 - MONITOR INSTALLATION Slide and lock-in. Before sliding in, please make sure Then turn the knob to right to lock the knob on the VESA plate is vertical. and fix the VESA plate globalfurnituregroup.com...
- Page 5 MONITOR ARM INSTALLATION GUIDE STEP 5 - ADJUSTMENT ON THE MINI SLIDE NOTE: 3 POSITIONS FOR CONNECTION Original Position Left Position Right Position globalfurnituregroup.com...
