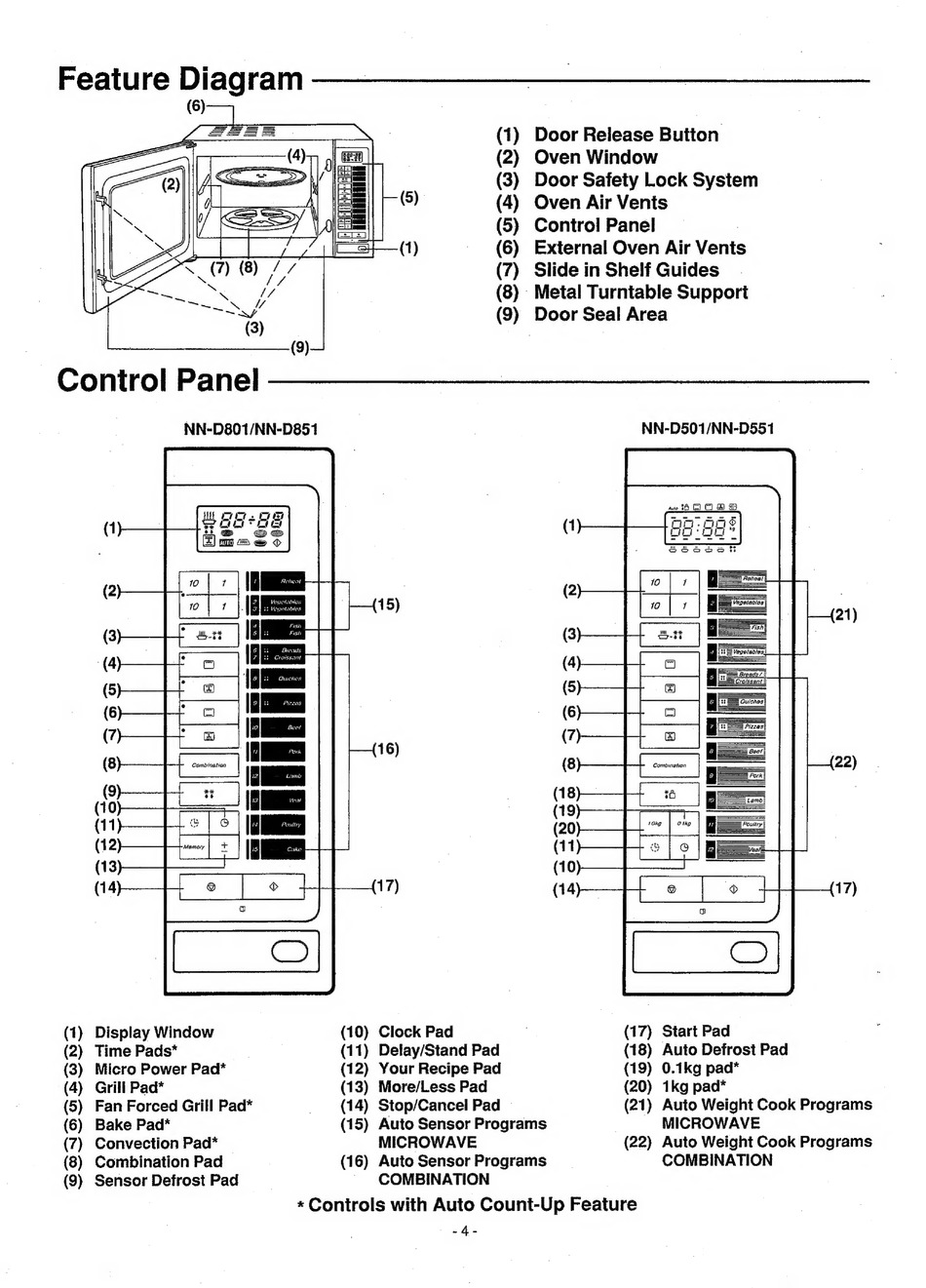

Feature Diagram
(6)
(1) Door Release Button
(2) Oven Window
(3) Door Safety Lock System
(5) (4) Oven Air Vents
(5) Control Panel
(1) (6) External Oven Air Vents
(7) Slide in Shelf Guides
(8) Metal Turntable Support
(9) Door Seal Area
(9)
Control Panel
NN-D801/NN-D851 NN-D501/NN-D551
15)
16)
17) 17)
(1) Display Window (10) Clock Pad (17) Start Pad
(2) Time Pads* (11) Detay/Stand Pad (18) Auto Defrost Pad
(3) Micro Power Pad* (12) Your Recipe Pad (19) 0.1kg pad*
(4) Grill Pad* (13) More/Less Pad (20) 1kg pad*
(5) Fan Forced Grill Pad* _ (14) Stop/Cancel Pad (21) Auto Weight Cook Programs
(6) Bake Pad* (15) Auto Sensor Programs MICROWAVE
(7) Convection Pad* MICROWAVE (22) Auto Weight Cook Programs
(8) Combination Pad (16) Auto Sensor Programs COMBINATION
(9) Sensor Defrost Pad COMBINATION
* Controls with Auto Count-Up Feature
-4-
