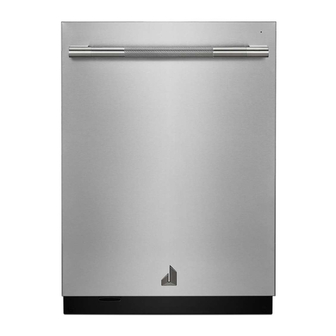

Jenn-Air JDPSS246LL Planning Manual

PRODUCT DIMENSIONS
A
Floor
FRONT VIEW
DESCRIPTION
A Width of door
Height to top of handle
B*
C Height of adjustable toe kick
Width of recessed dishwasher
D
E Depth without door
†
Depth with Towel Bar Handle
F Depth with Pocket Handle
†
Depth with Wood panel
Height to bottom of door (min.)
G*
H* Height to top of door (min.)
Height of recessed dishwasher (min.)
I *
†
Depth with door fully open (min.)
J
†
K Depth with toe kick (min.)
†
†Insulation blanket thickness not included, can be crushed up to 1/8" (0.3 cm), or removed along the top perforate
section for additional clearance.
*Dishwasher can be raised 17/16" (3.7 cm) with feet fully extended.
**Considering 3/4" wood panel thickness.
Because Whirlpool Corporation policy includes a continuous
commitment to improve our products, we reserve the right to
change materials and specifications without notice.
24" dIshwashEr
DETAILED PLANNING DIMENSIONS GUIDE
JDPSS246LL, JDPSS246LM, JDPSG244LS, JDPSS244LL,
JDPSS244LM
237/8" (W) x 335/8" (H) x 241/2" (Depth without Handle)
JDPSS245LX
237/8" (W) x 335/8" (H) x 243/4" (Depth without Handle)
D
B*
C
TOP VIEW
E
†
F
†
DIMENSIONS
23⅞" (60.6 cm)
319/16" (80.1 cm)
31/2" (8.8 cm) - min.
41/4" (10.8 cm) - max.
23⅞" (60.6 cm)
225/8" ( 57.5 cm)
271/4" (69.2 cm)
241/2" (62.2 cm)
243/4" (62.9 cm)**
35/16" (8.4 cm)
337/16" (84.9 cm)
335/8" (85.4 cm)
503/16" (127.4 cm)
2013/16" (52.9 cm)
Dimensions are for planning purposes only. For complete details,
see Installation Instructions packed with product. Specifications
subject to change without notice.
1
J
†
H*
G*
Floor
K
SIDE VIEW
Wall
I *
†
†
