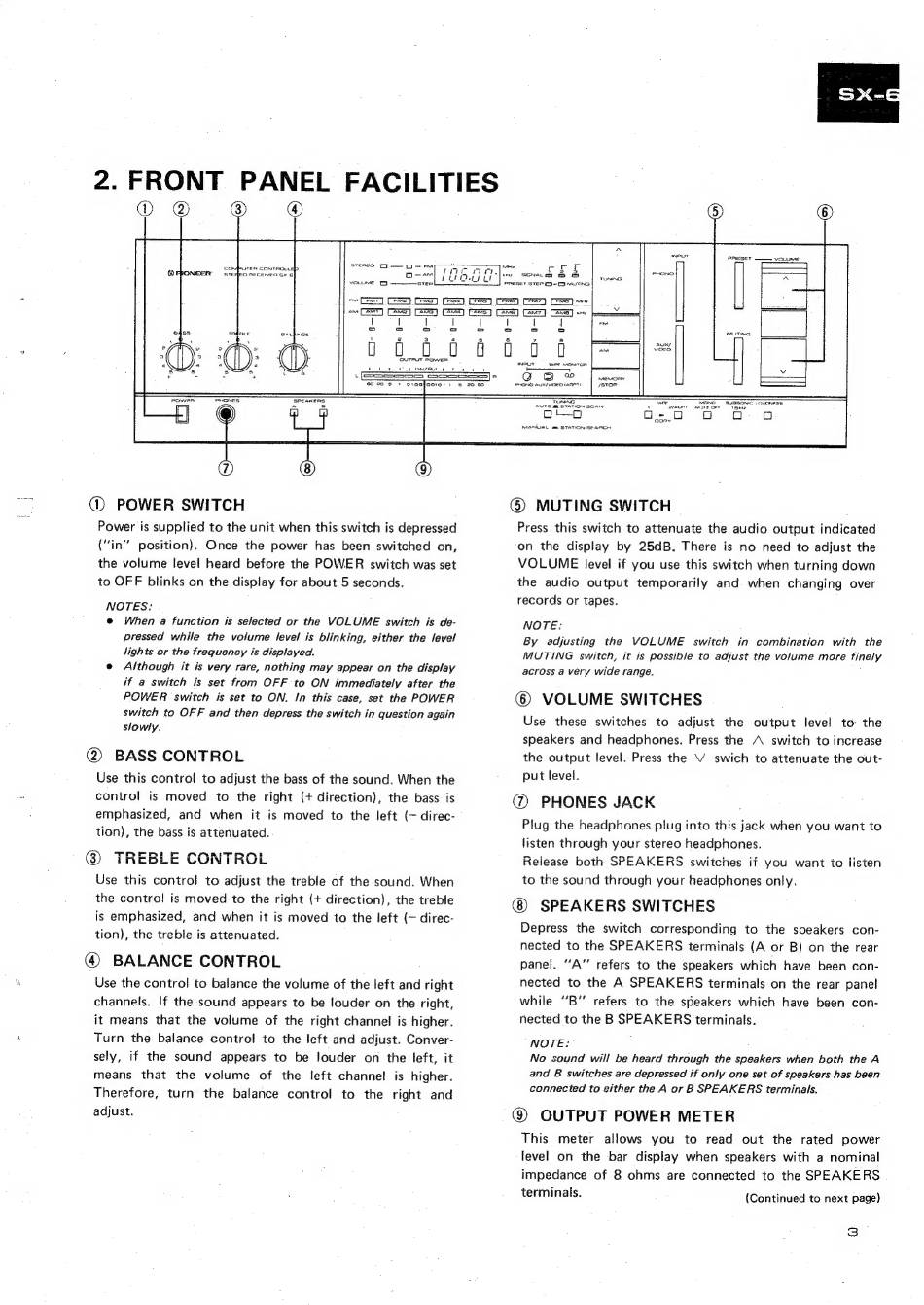

2. FRONT PANEL FACILITIES
QO @ ®
STEREO OC — OQ — em
o-4
vorume 1 tee!
em [Cemat
an (CART
OUTPUT POWER
eo twee ts
Ng @® POWER SWITCH
Power is supplied to the unit when this switch is depressed
("in'' position). Once the power has been switched on,
the volume level heard before the POWER switch was set
to OFF blinks on the display for about 5 seconds.
NOTES:
© When a function is selected or the VOLUME switch is de-
pressed while the volume level is blinking, either the level
lights or the frequency is displayed.
® Although it is very rare, nothing may appear on the display
if a switch is set from OFF to ON immediately after the
POWER switch is set to ON. In this case, set the POWER
switch to OFF and then depress the switch in question again
slowly,
@ BASS CONTROL
Use this control to adjust the bass of the sound. When the
control is moved to the right (+ direction), the bass: is
emphasized, and when it is moved to the left (— direc-
tion), the bass is attenuated.
@ TREBLE CONTROL
Use this control to adjust the treble of the sound. When
the control is moved to the right (+ direction), the treble
is emphasized, and when it is moved to the left (— direc-
tion), the treble is attenuated.
@ BALANCE CONTROL
Use the control to balance the volume of the left and right
channels. If the sound appears to be louder on the right,
it means that the volume of the right channel is higher.
Turn the balance control to the left and adjust. Conver-
sely, if the sound appears to be louder on the left, it
means that the volume of the left channel is higher.
Therefore, turn the balance control to the right and
adjust.
MANUAL me STATION SEARCH
@ MUTING SWITCH
Press this switch to attenuate the audio output indicated
on the display by 25dB. There is no need to adjust the
VOLUME level if you use this switch when turning down
the audio output temporarily and when changing over
records or tapes.
NOTE:
By adjusting the VOLUME switch in combination with the
MUTING switch, it is possible to adjust the volume more finely
across a very wide range.
@® VOLUME SWITCHES
Use these switches to adjust the output level to: the
speakers and headphones. Press the /A switch to increase
the output level. Press the V swich to attenuate the out-
put level.
@ PHONES JACK
Plug the headphones plug into this jack when you want to
listen through your stereo headphones.
Release both SPEAKERS switches if you want to listen
to the sound through your headphones only.
SPEAKERS SWITCHES
Depress the switch corresponding to the speakers con-
nected to the SPEAKERS terminals (A or B) on the rear
panel. "'A"' refers to the speakers which have been con-
nected to the A SPEAKERS terminals on the rear panel
while "'B'' refers to the speakers which have been con-
nected to the B SPEAKERS terminals.
NOTE: ;
No sound will be heard through the speakers when both the A
and B switches are depressed if only one set of speakers has been
connected to either the A or B SPEAKERS terminals.
@ OUTPUT POWER METER
This meter allows you to read out the rated power
level on the bar display when speakers with a nominal
impedance of 8 ohms are connected to the SPEAKERS
terminals. (Continued to next page)
