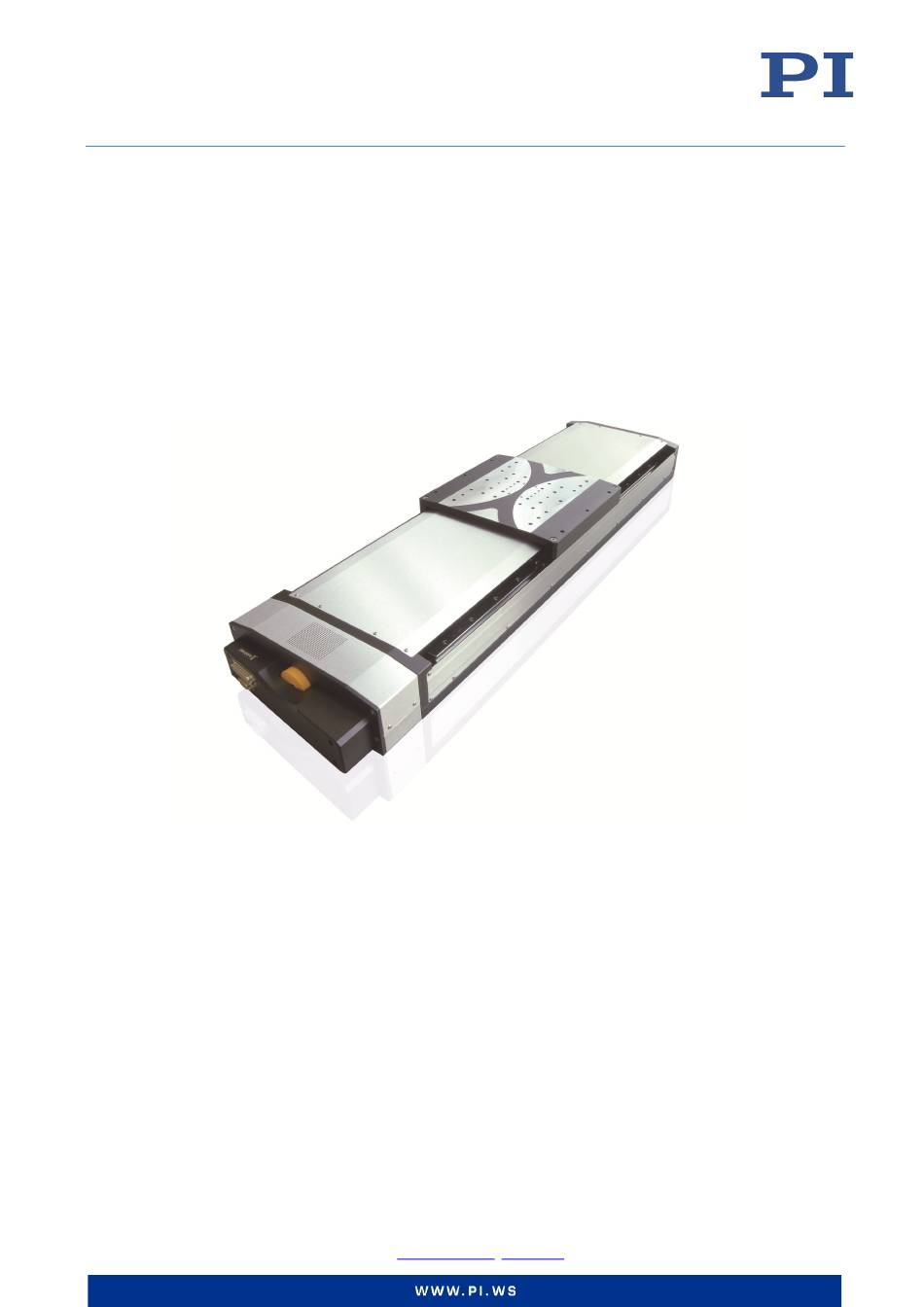

- Page 1 Technical Note LS270T0003, valid for LS-270 pmMSu, ASt, 9/27/2023 Lubricating Instructions for LS-270 PI miCos GmbH, Freiburger Straße 30, 79427 Eschbach, Germany Phone +49 7634 5057-0, fax +49 7634 5057-99, e-mail info@pimicos.ws, www.pi.ws...
- Page 2 Contents Material and Tools Required Maintenance Cycles Linear guide ............................3 Drive screw ............................3 Relubrication PI miCos GmbH, Freiburger Straße 30, 79427 Eschbach, Germany Page 2 / 8 Phone +49 7634 5057-0, fax +49 7634 5057-99, e-mail info@pimicos.ws, www.pi.ws...
- Page 3 Material and Tools Required Lint-free cloths Acetone as a solvent Drive screw lubricant: Klüber ISOFLEX NBU 15 (PI article number: K4920019) Linear guide lubricant: Shell Alvania EP(LF) 2 grease SW 5 and SW 2 hex keys ...
- Page 4 Remove the 8 M3×5 mounting screws of the cover (SW 2 hex key): Remove the cover plate and put it aside with the 8 screws. PI miCos GmbH, Freiburger Straße 30, 79427 Eschbach, Germany Page 4 / 8 Phone +49 7634 5057-0, fax +49 7634 5057-99, e-mail info@pimicos.ws,...
- Page 5 Repeat steps 1 - 3 (we recommend five times) to remove as much of the existing lubricant as possible. PI miCos GmbH, Freiburger Straße 30, 79427 Eschbach, Germany Page 5 / 8 Phone +49 7634 5057-0, fax +49 7634 5057-99, e-mail info@pimicos.ws,...
- Page 6 Use a grease gun to apply Klüber ISOFLEX NBU 15 lubricant to the drive screw nut (marked in the figure below): PI miCos GmbH, Freiburger Straße 30, 79427 Eschbach, Germany Page 6 / 8 Phone +49 7634 5057-0, fax +49 7634 5057-99, e-mail info@pimicos.ws,...
- Page 7 Reattach Removed Components Reattach both side covers using the 30 M3×5 mounting screws (SW 2 hex key). PI miCos GmbH, Freiburger Straße 30, 79427 Eschbach, Germany Page 7 / 8 Phone +49 7634 5057-0, fax +49 7634 5057-99, e-mail info@pimicos.ws,...
- Page 8 Reattach the slider using the 4 M6×16 socket head screws (SW 5 hex key): Reconnect the electrical connections. PI miCos GmbH, Freiburger Straße 30, 79427 Eschbach, Germany Page 8 / 8 Phone +49 7634 5057-0, fax +49 7634 5057-99, e-mail info@pimicos.ws,...
