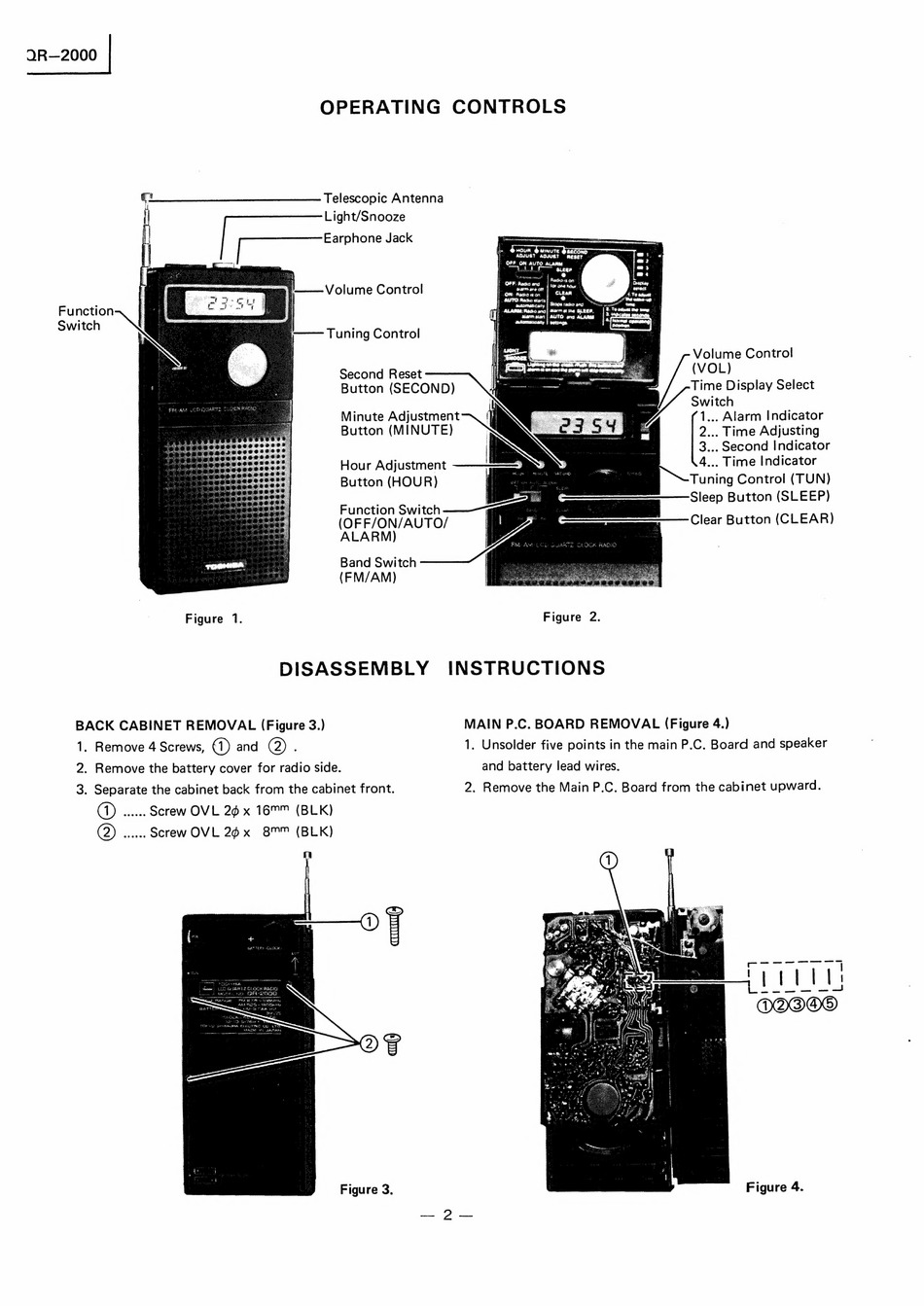

Toshiba QR-2000 Manual page 2

2R—2000
OPERATING CONTROLS
c- Telescopic Antenna
| Light/Snooze
l
| —
Jack
—— \/olume Control
Function
itch
aM Tuning Control
Volume Control
Second Reset
(VOL)
Button (SECOND)
Time Display Select
Switch
Minute Adjustment
1... Alarm Indicator
Button (MINUTE)
2... Time Adjusting
3... Second Indicator
Hour Adjustment
4... Time Indicator
Button (HOUR)
Tuning Control (TUN)
: Sleep Button (SLEEP)
Function Switch " ee ee ee |
(OF F/ON/AUTO/
i a
=
Clear Button (CLEAR)
ALARM)
Rio
ee
Band Switch
(FM/AM)
Figure 1. Figure 2.
DISASSEMBLY INSTRUCTIONS
BACK CABINET REMOVAL (Figure 3.) MAIN P.C. BOARD REMOVAL (Figure 4.)
1. Remove 4 Screws, 1) and (2) :;
1. Unsolder five points in the main P.C. Board and speaker
2. Remove the battery cover for radio side. and battery lead wires.
3. Separate the cabinet back from the cabinet front.
2. Remove the Main P.C. Board from the cabinet upward.
(4) ...... Screw OVL 2¢ x 16™™ (BLK)
(2) ...... Screw OVL 26x 8™™ (BLK)
Figure 3. Figure 4.
