Greentouch 1358FM-26-344 Assembly / Care & Use Instructions

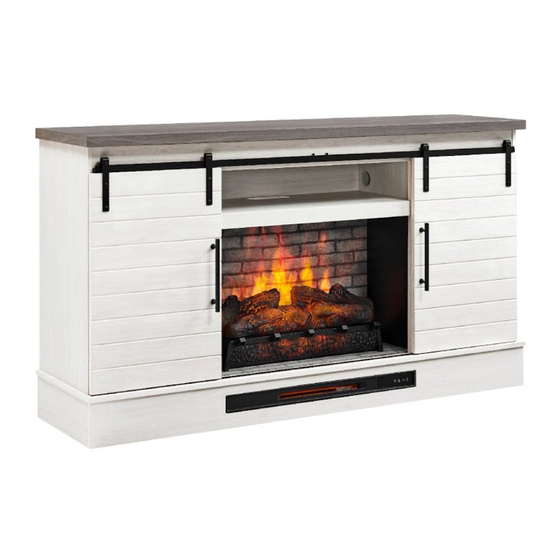

60” electric fireplace entertainment center
Hide thumbs
Table of Contents

Advertisement

Quick Links

MENARDS ITEM #641-5292
MODEL #1358FM-26-344
ATTACH YOUR RECEIPT HERE
60" ELECTRIC FIREPLACE
ENTERTAINMENT CENTER
ASSEMBLY, CARE & USE INSTRUCTIONS
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at 1-855-571-1044 9 a.m. - 5 p.m., EST, Monday - Friday. www.greentouchhome.com.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1358FM-26-344 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Greentouch 1358FM-26-344

Summary of Contents for Greentouch 1358FM-26-344

  • Page 1 MENARDS ITEM #641-5292 MODEL #1358FM-26-344 ATTACH YOUR RECEIPT HERE 60” ELECTRIC FIREPLACE ENTERTAINMENT CENTER ASSEMBLY, CARE & USE INSTRUCTIONS Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-571-1044 9 a.m. - 5 p.m., EST, Monday - Friday. www.greentouchhome.com.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents ................................3 Hardware Contents .................................4 Safety Information ................................4 Preparation ..................................8 Assembly Instructions ..............................8 Maximum Recommended Weight Loads........................19 Operating Instructions ..............................20 Care And Maintenance ..............................22 Troubleshooting ................................23 One-Year Limited Warranty ............................24 Replacement Parts List ..............................25...

  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Left Door Front Bar Right Door Left Middle Wall Fire log Right Middle Wall Fireplace Grate Left Outer Wall Remote Control (Battery Inside) Right Outer Wall Fireplace Glass front Center Shelf Base Shelf Fireplace Brick wall Back Panel...

  • Page 4: Hardware Contents

    HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Long Screw Wooden Dowel Locknut Connecting Rod Back panel Screw L-Bracket x 24 x 20 x 20 mounting hardware (with screw) x 12 Shelf Pin Door Pull Door Stopper Touch-up Pen Tip Restraint Hardware SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product.
  • Page 5 SAFETY INFORMATION (CONTINUED) Modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: DANGER •...
  • Page 6 SAFETY INFORMATION (CONTINUED) • Each surface intended to support a load shall have a corresponding statement in the use instructions specifying the maximum intended load for that surface in pounds (kilograms). • Risk of electric shock-connect this furnishing to a properly grounded outlet only. See Grounding Instructions. •...
  • Page 7 SAFETY INFORMATION (CONTINUED) Electrical Connection • A 15-Amp, 120-volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation.

  • Page 8: Preparation

    PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 50 minutes Tools Required for Assembly (not included): Phillips screwdriver ASSEMBLY INSTRUCTIONS 1.
  • Page 9 ASSEMBLY INSTRUCTIONS (CONTINUED) 2. Insert two wooden dowels (BB) into each side of the center shelf (G). Align the dowels in center shelf (G) to the left middle door (C), secure by fastening two locknuts (CC) with a Phillips screwdriver. Repeat for right middle wall (D).
  • Page 10 ASSEMBLY INSTRUCTIONS (CONTINUED) 4. Screw four connecting rods (DD) into the designated holes on the top of the base (R). Connecting Rod 5. Insert four wooden dowels (BB) into the outer holes on the base (R). Attach the left outer wall (E) and secure by fastening two locknuts (CC) with a Phillips screwdriver.
  • Page 11 ASSEMBLY INSTRUCTIONS (CONTINUED) 6. As shown in the diagram, insert the center back panel (J) and back panels (I) along the grooves of the middle walls (C,D) and outer walls (E,F). 7. Screw twelve connecting rods (DD) into the designated holes on the back of the top (A). x 12 Connecting Rod...
  • Page 12 ASSEMBLY INSTRUCTIONS (CONTINUED) 8. Place top (A) onto a scratch free surface such as a sheet that came in the packaging. Insert two wooden dowels (BB) into the top outer holes on the top (A). Align and attach the front bar (B) to the top (A), secure by screwing four locknuts (CC) by Phillips screwdriver.
  • Page 13 ASSEMBLY INSTRUCTIONS (CONTINUED) 10. Secure the back panels (I) and center back panel (J) to the product by using the back panel mounting hardware (EE), screwing the screws by Phillips screwdriver (As shown in diagram ). x 12 Back panel mounting hardware 11.
  • Page 14 ASSEMBLY INSTRUCTIONS (CONTINUED) 12. Align the door pull (II) with the pre-drilled hole on the left door(K), securing with two door pull screws. Repeat for remaining door pull (II). Door Pull 13. Align the left door (K) with the roller track. With the door hanger latched onto the roller track, push the left door (K) to the right.
  • Page 15 ASSEMBLY INSTRUCTIONS (CONTINUED) 14. As shown in the diagram, Unscrew the screw holding the slider (KK) on the back of the left door (K) by using a Philips screwdriver, Position the slider (KK) into the groove on the base (R) in place. and tighten the screw. Repeat for remaining slider (KK) on the back of the right door (L).
  • Page 16 ASSEMBLY INSTRUCTIONS (CONTINUED) 16. Position the firepalce grate (N) by matching the pin on the bottom of the fireplace grate (N) to the holes on the base (R). 17. Remove the film from the adhesive on the top of the fireplace grate (N) and place the fire log (M) on the center of the fireplace grate (N).
  • Page 17 ASSEMBLY INSTRUCTIONS (CONTINUED) Note: The fireplace brick wall (S) is reversible. Choose the brick pattern for your firebox before installing the next step. 18. Screw two L-bracket (GG) onto the fireplace brick wall (S) by using four screws (FF). Screw L-Bracket 19.
  • Page 18 ASSEMBLY INSTRUCTIONS (CONTINUED) NOTE: Use the pre-assembled levelers on the base of the fireplace to level the unit. Twist the levelers counter-clockwise to increase the height, twist clockwise to decrease the height. 1/2 in. WARNING: You must install the tip restraint hardware to help prevent any accidents or damage to the unit. We strongly recommend attaching the tip restraint hardware to a wall stud and your unit.

  • Page 19: Maximum Recommended Weight Loads

    MAXIMUM LOAD 6.8 kg / 15 lb MAXIMUM LOAD 6.8 kg / 15 lb MAXIMUM LOAD 6.8 kg / 15 lb SKU#641-5292/Model#1358FM-26-344 DISTRIBUTION: Greentouch USA Inc ADDRESS: 207 Byers Creek Rd Ste D Mooresville, NC 28117-6988 COUNTRY OF ORIGIN: CHINA MANUFACTURE DATE: MAY, 2022...

  • Page 20: Operating Instructions

    OPERATING INSTRUCTIONS Control Panel Remote Control To use the remote control, first remove the plastic tab by gently pulling it out of remote control. Controls and Display The control panel will display the heater setting when the unit power is turned ON. Whichever control icon you press will display the current setting of the corresponding function.
  • Page 21 OPERATING INSTRUCTIONS (CONTINUED) Heater Function • Press the HEATER ICON to display the current heater setting. • Press the HEATER ICON again to scroll down through the heater settings. Note: Long-hold the icon to quickly scroll through settings. • Set the heater to “HI” (High) to have the heater run continually. •...

  • Page 22: Care And Maintenance

    CARE AND MAINTENANCE • Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are cleaning the heater or fireplace. • Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim.

  • Page 23: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Error E1 displayed on The overheat sensor has Unplug unit, wait 15-20 minutes, then the sensor will reset control panel. been engaged. itself. Plug the unit back in and turn on the heater. If the problem persists, call customer service (1-855-571-1044).

  • Page 24: One-Year Limited Warranty

    ONE-YEAR LIMITED WARRANTY The manufacturer warrants that your new electric fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this electric fireplace in accordance with the installation and operating instructions furnished with the product at all times.

  • Page 25: Replacement Parts List

    For replacement parts, call our customer service department at 1-855-571-1044 9 a.m. - 5 p.m., EST, Monday - Friday. www.greentouchhome.com. PART DESCRIPTION PART # 1358FM-26-344-TOP Left Middle Wall 1358FM-26-344-LEFT MIDDLE WALL Right Middle Wall 1358FM-26-344-RIGHT MIDDLE WALL Left Outer Wall 1358FM-26-344-LEFT OUTER WALL Right Outer Wall 1358FM-26-344-RIGHT OUTER WALL...
