U-Line BUNN H-10899 Manual

H-10899

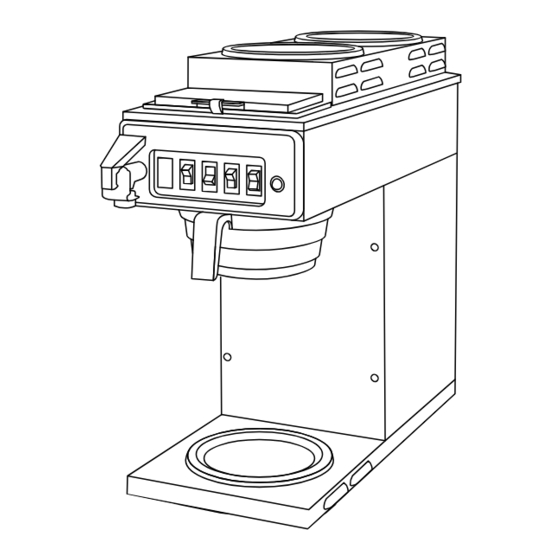

BUNN AUTOMATIC
®
COFFEE MAKER
CAUTION! The brewer must be disconnected
from the power source until specified in Setup.

ELECTRICAL REQUIREMENTS

The brewer has an attached cordset and requires
two-wire grounded service rated 120 volts AC, 15 amp,
single phase, 60 Hz.

PLUMBING REQUIREMENTS

• Brewer must be connected to a cold water system
with operating pressure between 20-90 psi
(138-620 kPa) from a 1/2" or larger supply line.
• A shut-off valve should be installed in the line
before the brewer.
• Use a regulator if pressure is greater than 90 psi
(620 kPa) to reduce to 50 psi (345 kPa).
• 1/4" Copper tubing is recommended for
Installations of less than 25 feet and 3/8" for more
than 25 feet from the water supply line.
1. Insert an empty funnel into rails. (See Figure 1)
2. Place an empty dispenser under funnel.
3. Turn heater switch to OFF position.
NOTE: Heater switch is on the rear of
the brewer.
4. Connect brewer to power source and turn the
on/lower switch to ON position.
PAGE 1 OF 6
1-800-295-5510
uline.com

SAFETY

• Fill water tank before turning on thermostat or
• Use only on a properly protected circuit capable
• Electrically ground the chassis.
• Follow national/local electrical codes.
• Do not use near combustibles.
• Failure to comply risks equipment damage,
• Read all instructions before using this product.
• This appliance is heated whenever connected to
• To reduce the risk of electric shock, do not remove

SETUP

Figure 1
Pour le français, consulter les pages 5-6.
connecting appliance to power source.
of the rated load.
fire or shock hazard.
a power source.
or open cover. No user-serviceable parts inside.
Authorized service personnel only. Disconnect
power before servicing.
Funnel
Para Español, vea páginas 3-4.
0823 IH-10899
