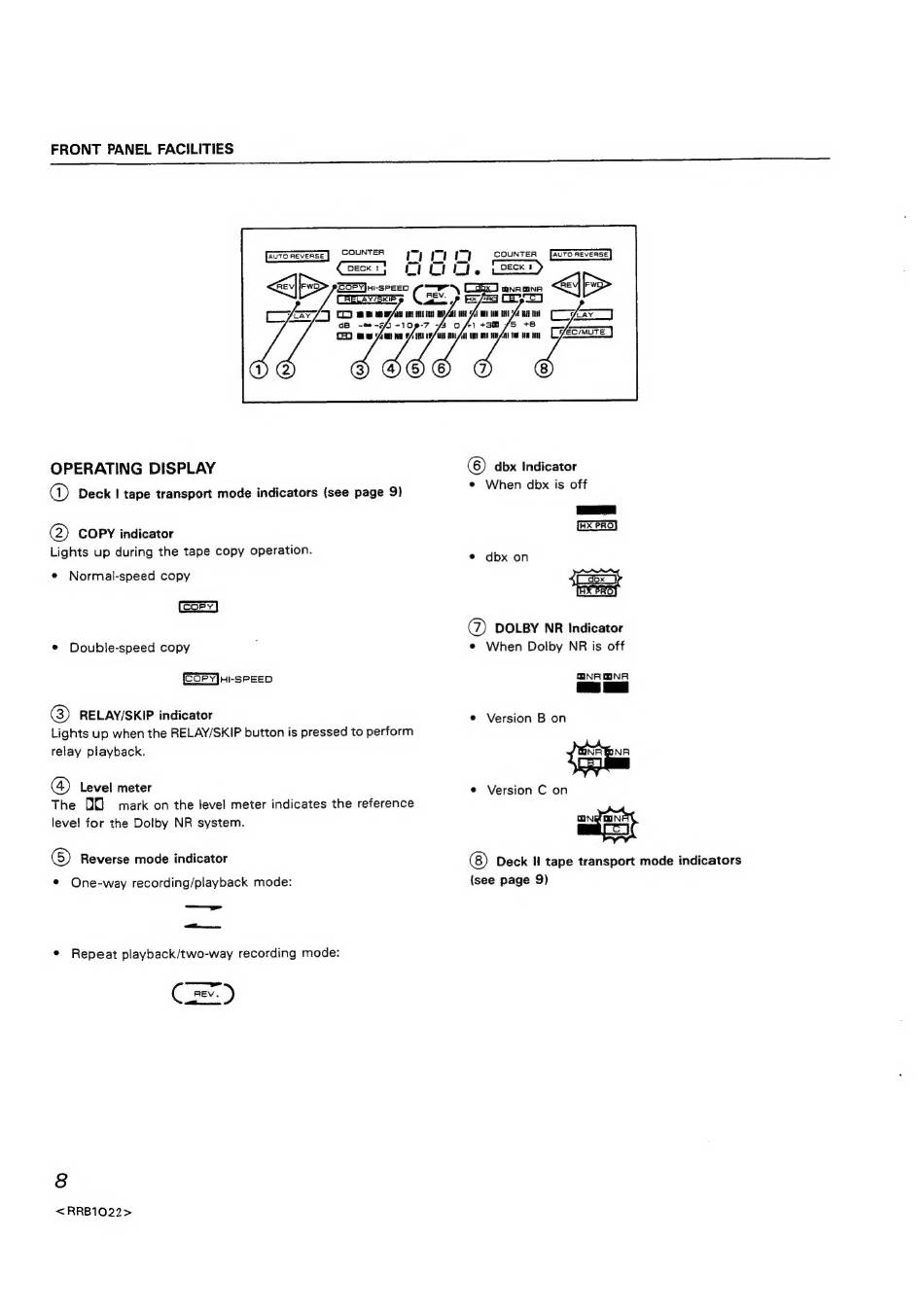

FRONT PANEL FACILITIES
COUNTER 9} ITH IT] counter
comet eet
< DECK T} wl ul {f Ie LOecK 1»
-> aera
dB
oer (Codie mama <p>
Bess CE
OPERATING DISPLAY
@ Deck | tape transport mode indicators (see page 9)
(2) COPY indicator
Lights up during the tape copy operation.
¢ Normal-speed copy
¢ Double-speed copy
HI-SPEED
(3) RELAY/SKIP indicator
Lights up when the RELAY/SKIP button is pressed to perform
relay playback.
(4) Level meter
The DG mark on the level meter indicates the reference
level for the Dolby NR system.
6) Reverse mode indicator
¢ One-way recording/playback mode:
_——
SB
¢ Repeat playback/two-way recording mode:
C=)
8
<RRB1022>
© dbx Indicator
¢ When dbx is off
ae)
° dbx on
(2) DOLBY NR Indicator
¢ When Dolby NR is off
NR NR
e Version B on
NR
bic
ay
Deck Il tape transport mode indicators
(see page 9)
q ]&
e Version C on
