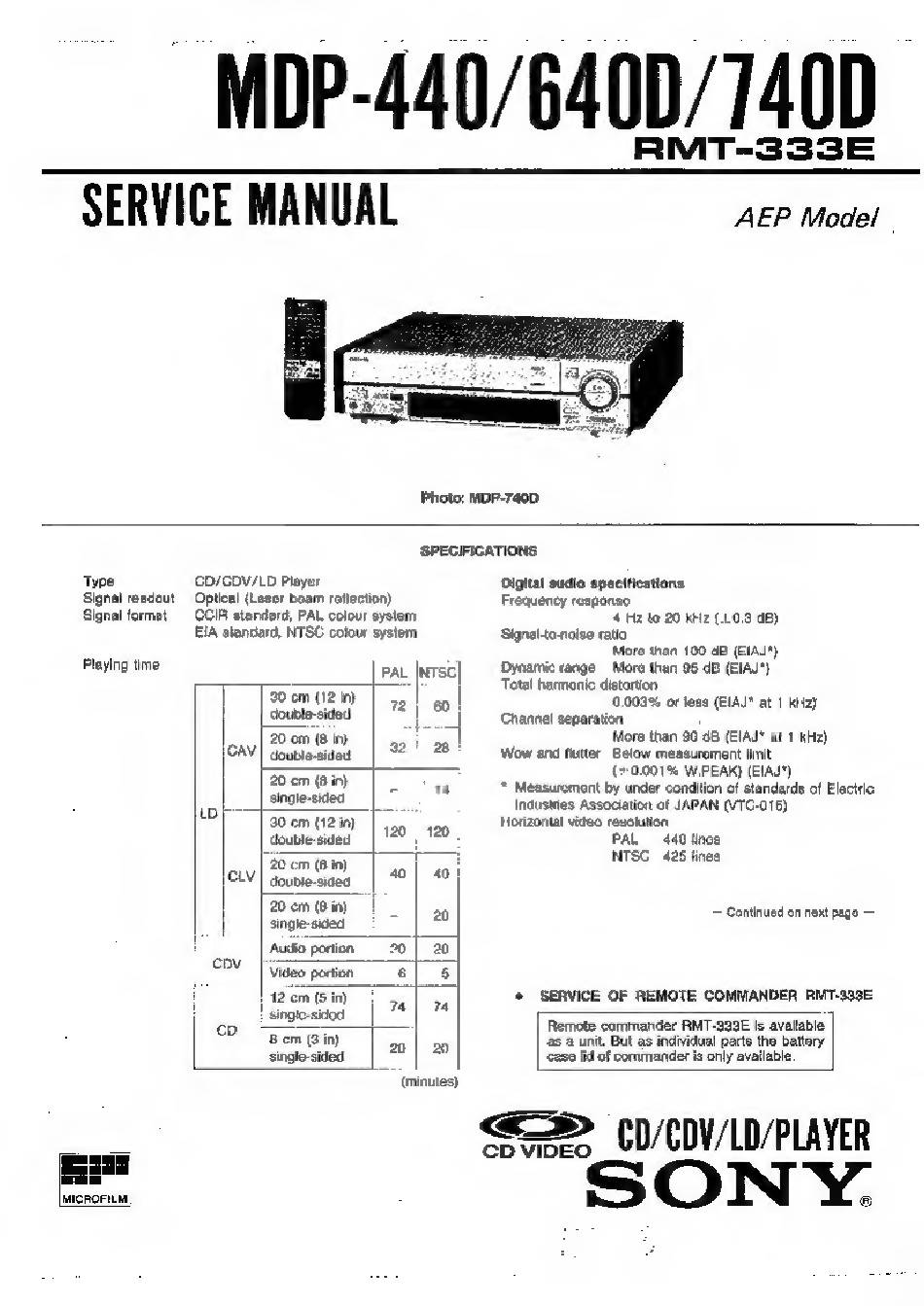

Sony MDP-440 MDP-640D Service Manual

-MDP-440/640D/740D
RMT-333E
SERVICE MANUAL
AEP Model
Photo: MDP-740D
'SPECIFICATIONS
CD/COV/LD Player
Optical (Laser boam ratlection)
CGIR standard, PAL. colour system
EIA slandard, NTSC cotour system
'Type
Signal readout
Signal format
CAV! double-sided
20 em (8 in}
ingie-sided | ~ = 4
30 om (12 in}
double-sided
20 cm @ in)
double-sided
20 cm (8 in)
| single-sided
'Audio portion
'Video portion
H | 12 em (5 in)
! single-sided
8 cm (8 in)
single-sided
cl
cov
co
20} 20
(minutes)
ROFMM
Digital audio specitications
Frequency response
4 He to 20 kHz {10.9 dB)
Signal-to-noise ratio
More than 100 dB (EIAJ*)
'Dynamic range More than 96 dB (EIAJ*)
Total harmonic distortion
0.003% or less (EIAJ* at 1 kHz)
Channel separation
More than 90 dB (EIAJ* at 1 kHz)
Below measurement limit
{70.0019 W.PEAK) (EIAJ*)
* Measurement by under condition of standards of Electric
Industies Association of JAPAN (VTC-015)
Horizontal video resolution
PAL 440 fines,
NTSC 425 fines
Wow and flutter
— Continued on next page —
* SERVICE OF REMOTE COMMANDER RMT.333E
Remote commander RMT-333E Is avallable
as @ unit. But as individual parts the battery
casa lid of commander is only available.
<< ()/CDV/LD/PLAYER
"SONY.
