Fike 326-0001 Installation And Maintenance Instructions

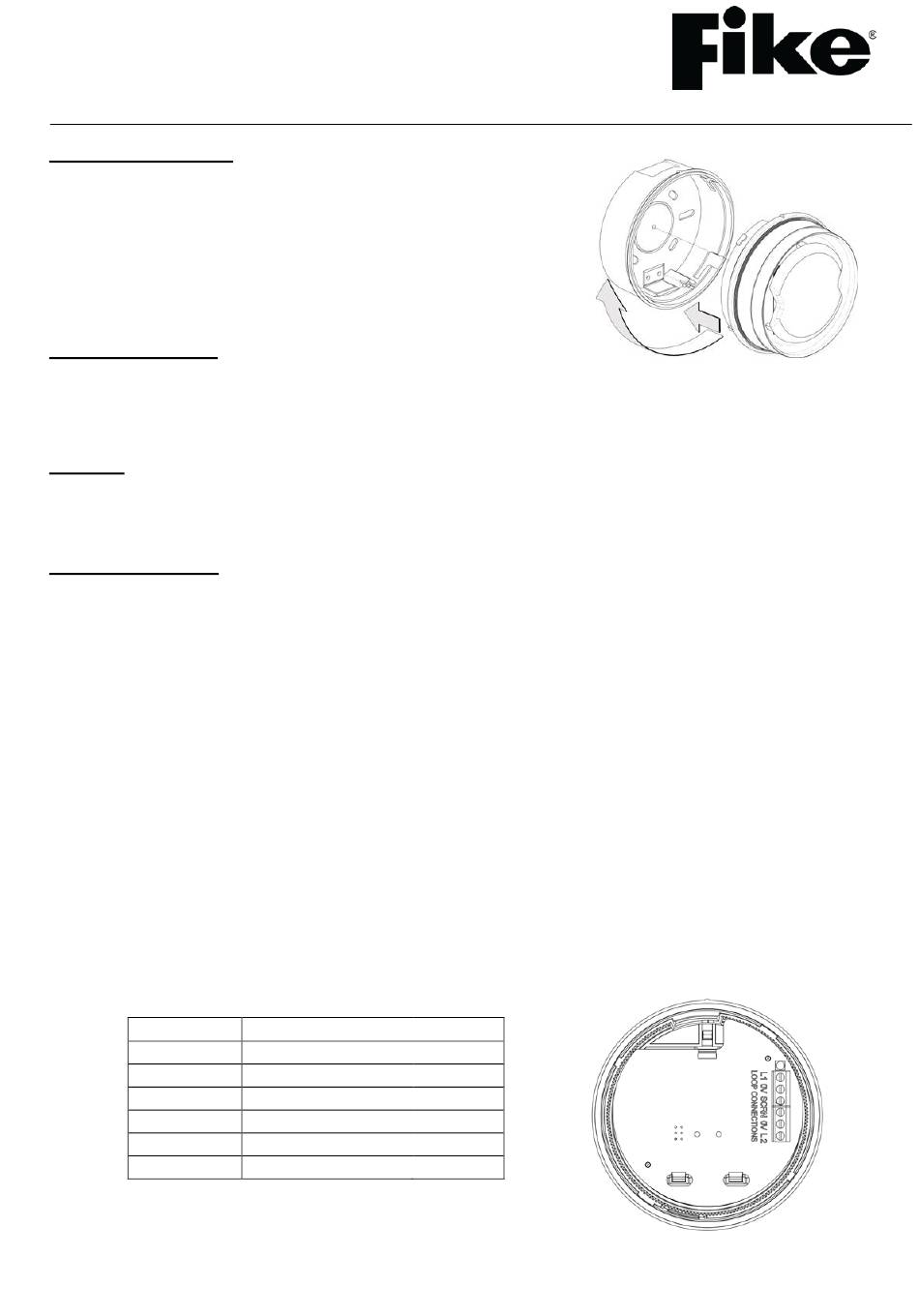

INSTALLATION AND MAINTENANCE INSTRUCTIONS
326-0001 Sita Sounder
with Low Profile Base

General Description

The Sita Sounder unit allows for audible indication when the system enters
an alarm condition. This is an addressable unit that attaches to the loop.
Digital communication technology to the control panel is implemented
allowing for accurate data transfer at high transmission speeds. This
device is only compatible with the Sita 200+, Duonet and Quadnet ranges
of control panels.

Before Installation

The Sounder must be installed in compliance with the control panel installation manual. The installation must also
meet the requirements of any local authority. For maximum performance the device should be installed in
compliance with BS 5839 Pt1 : 2002 + A2 : 2008.

Spacing

Fike recommends spacing of sounders in accordance with BS 5839. For more specific information regarding
sounder spacing, placement and special applications please refer to BS 5839 Pt1 : 2002 + A2 : 2008.

Device Installation

The base moulding should be positioned so that access to the locking feature is concealed from general view to
lessen the possibility of unauthorised removal of the device.
Drill the cable entry region(s) in the base moulding as required.
Drill out the desired mounting holes through hole / slot guides as required. Affix the base moulding to a flat surface
using a minimum of 2 screws.
All wiring must be installed in compliance with the recommendations laid out by BS 5839 as well as any special
recommendations documented in the control panel installation manual. The cabling used should be of a 2-core
2
1.5mm screened, fire resistant type, with the following characteristics:
Max Capacitance Core to Screen ................................................... 180pF / m
Max Capacitance Core to Core....................................................... 100pF / m
Max Inductance ............................................................................... 1.0mH / km
Max Resistance Two Core Screened 1.5mm² ................................ 12.1Ω / km
It is to be wired in the form of a screened 2-core loop returning to the control panel. The use of spurs on
this system is not permitted. Cables may be terminated into the connector, as shown below. Care should be
taken when terminating devices to ensure all cables are correctly sleeved and connections are secure. Improper
connections will prevent a system from responding properly in the event of a fire.
Terminal
L1
0V
SCRN
SCRN
0V
L2
Description
Loop +ve IN
Loop -ve IN
Screen IN
Screen OUT
Loop -ve OUT
Loop +ve OUT
26-1001 Issue 4
