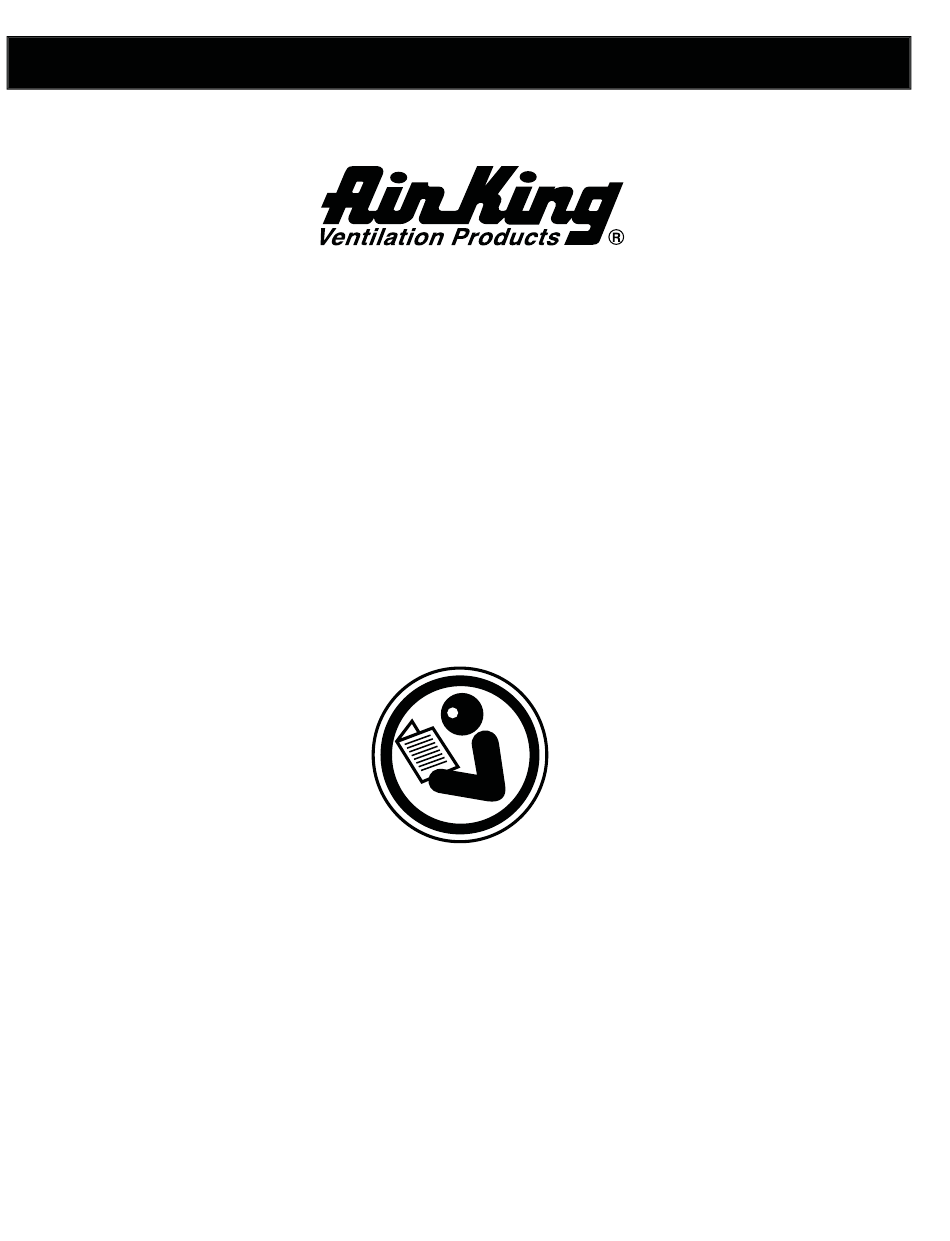

IMPORTANT INSTRUCTIONS - OPERATING MANUAL

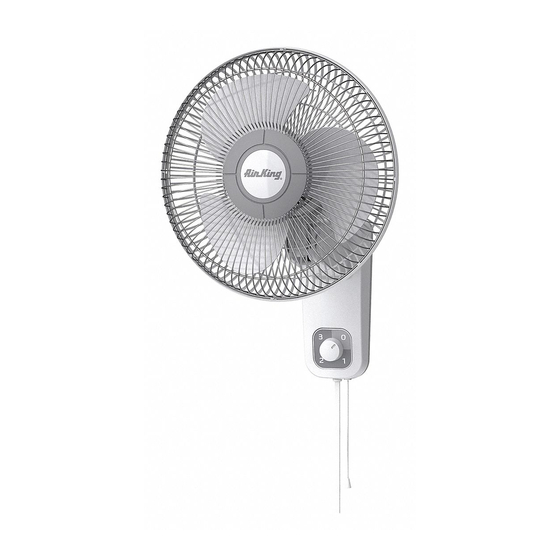

WALL MOUNTED OSCILLATING FANS
MODEL
4C630Q/9012Q
MODEL
4C631R/9016R
It is not intended to be used in commercial, industrial or agricultural settings.
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE,
INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY
INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD
RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
Rev. S 10/17
1
2084077
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AirKing 4C630Q/9012Q
Summary of Contents for AirKing 4C630Q/9012Q
- Page 1 IMPORTANT INSTRUCTIONS - OPERATING MANUAL WALL MOUNTED OSCILLATING FANS MODEL 4C630Q/9012Q MODEL 4C631R/9016R It is not intended to be used in commercial, industrial or agricultural settings. READ AND SAVE THESE INSTRUCTIONS READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.
- Page 2 BE CERTAIN that the power source for the Fan is 120V AC. DO NOT plug the Fan into 240V or other power source. The Blue Plug™ on your AirKing fan is a safety feature. It contains a non-replaceable safety device (fuse) that should not be removed or tampered with.
- Page 3 4. To secure Blade, screw Spinner onto Shaft Counter Clockwise 120V, 60 Hz (16" 40,6 cm) until tight on Blade hub. Blade diameter....12" ( 30,4 cm) Model 4C630Q/9012Q 5. Snap Front Grill into place. 16" (40,6 cm) Model 4C631R/9016R Speeds .......3 Control .......Rotary Knob/Pull Cord...
- Page 4 4C630Q/9012Q and 4C631R/9016R MODEL REPLACEMENT PARTS LIST Part No. for Model Key 4C630Q/9012Q 4C631R/9016R Description Qty. 2060316 2060316 Mounting Plate 2090003 2090003 Screw #8 x 1 1/4" Wood Screw 2 02035105LG 02035103LG Motor Head 2019588 2019631 Rear Grill 2010374P 2010374P...
