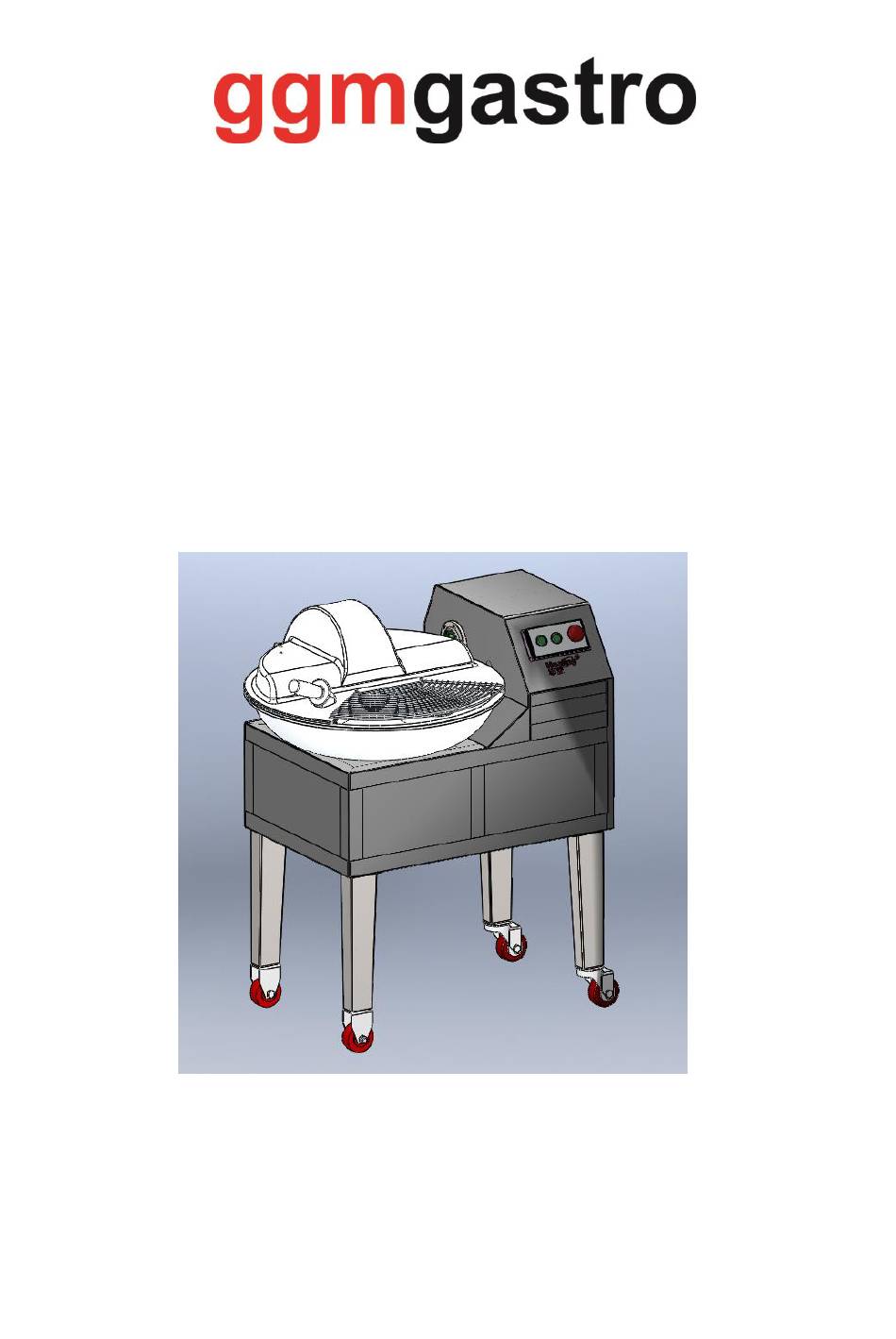

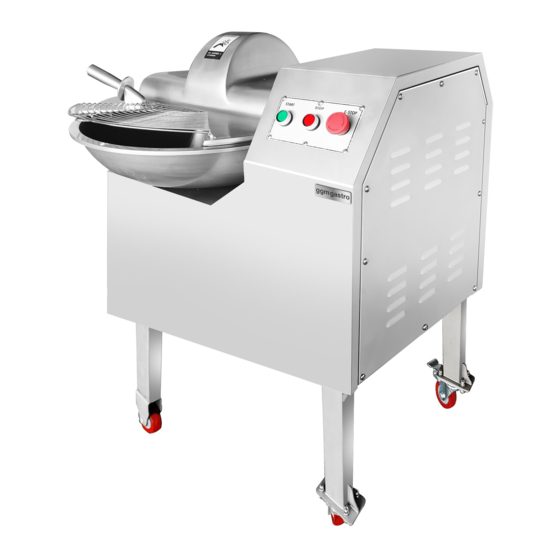

HCH2010 CUTTING MIXER MACHINE
OPERATION MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCH2010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GGMgastro HCH2010

Summary of Contents for GGMgastro HCH2010

  • Page 1 HCH2010 CUTTING MIXER MACHINE OPERATION MANUAL...
  • Page 2 Preface  In order to make sure the machine can be used efficiently, we provide concerned details and information of the machine in this manual, include specifications, operation procedures and instructions.  This manual should be submited to the qualified operators, to help them get familiar with the operation and maintenance of the machine.

  • Page 3: Chapter 1 General Introduction

    Chapter 1 General Introduction 1.1 Product Function HCH2010 Cutting mixer machine produced by our company is mainly used for food processing fields, which can process different kinds of roots, stems, leaves and vegetable into paste speedly and effectively, which can process meat and accessories into glue. It can also mix different kinds of stuffings evenly, which is the ideal equipment for processing dumpling and buns, and also the best choice for feed processing field.
  • Page 4 basin cover blades-unit dish basin belt pulley mechanism turbine driving device frame motor Picture 1: structure diagram 2.2 Material safety The machine parts which contact with food diretly are made of material strictly in accordance with the requests of food safety and health standards, which is not rust, corrosion, nontoxic and harmless to buman health even after using for a long time.

  • Page 5: Chapter 3 Main Technical Data

    Picture 2: electrical circuit diagram Table 1. Remarks for element symbols Remark: European voltage: 220-240Vac，50Hz Motor Emergency stop Magnetic switch Start button Stop button Chapter 3 Main Technical Data 3.1 Dimension and weight Picture 3: dimension 3.2 Main techinical data Table 2: Main techinical data...

  • Page 6: Chapter 4 Packing And Inspection

    Blade Basin Motor Capacity rotating rotating Voltage Frequency Waterproof Belt Net weight power （kg / h） （V） （Hz） （kg） speed speed grade model （KW） （r/min） （r/min） A550 1440 220-230 IPX1 A860 Chapter 4 Packing and Inspection 4.1 Packing inspection The machine must be packed well before shipment with the following(see picture 4) a.

  • Page 7: Chapter 5 Installation

    Chapter 5 Installation Place the machine Placed the machine in dry and ventilated level surface, to ensure the smooth and safe machine work. Choose the placement space should satisfy the size in figure 1 (based on the model), can accommodate. Connection Stretching elongation power cord, with grounding symbol of wire core, reliable grounding, three other line core (single-phase motor for two) respectively received a matching circuit breaker (the user should...

  • Page 8: Chapter 7 Regular Cleaning

    Instructions Note: when the motor stops rotating, the food can be loaded According to the following steps: Plug in the power supply. Open the cover, put in the right amount of ingredients, pay attention to not too full, with no access to the pot cover advisable.

  • Page 9: Chapter 8 Machine Maintenance And Daily Inspection

    Because of the waste residue will damage the machine, the machine to clean both inside and outside. 4. Don’t use water detergents, industrial cleaners, iron brush, hoses, and beneath the surface of the machine cleaning equipment. Chapter 8 Machine Maintenance and Daily Inspection Note: before the maintenance operation work: please unplug the power before servicing the machine, make sure the machine away from the power.
  • Page 10 blade blade seat shaft end pad lock-blade screw nut 2. Stack the 3 cutting blades together, use the 6-inch semicircle file provided by the machine to grind the bulge on the blades to the appropriate size, and ensure that the grinding size of the three blades is the same, that is, the bulge should be of the same height.

  • Page 11: Chapter 9 Recycling Method

    Chapter 9 Recycling Method 9.1 No repairing For some reason the machine cannot be repaired, to ensure the machine can't use again, cancel all electrical connections. 9.2 Discard When the machine can't repair it abandoned, please contact the waste disposal company, will be qualified materials used in the manufacture of a variety of other components.
