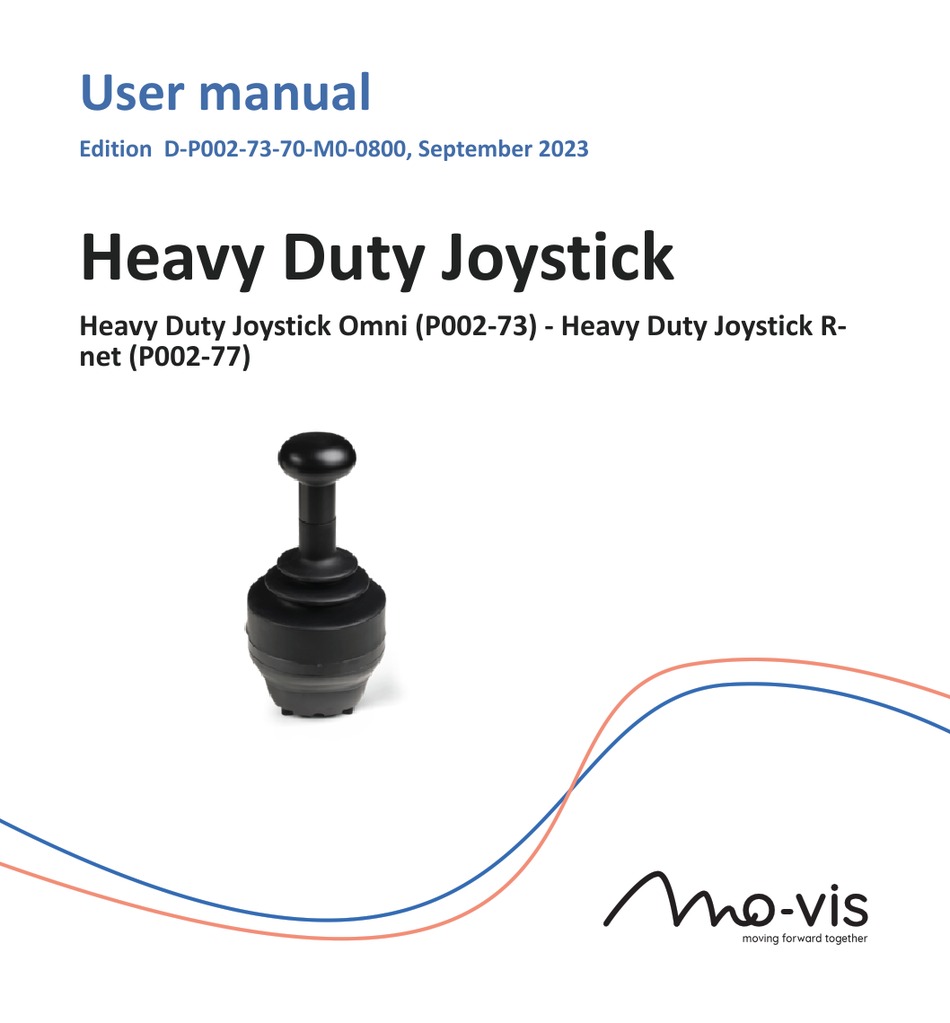

- Page 1 User manual Edition D-P002-73-70-M0-0800, September 2023 Heavy Duty Joystick Heavy Duty Joystick Omni (P002-73) - Heavy Duty Joystick R- net (P002-77) moving forward together...
-
Page 2: Table Of Contents
Contents Other languages ................. 2 About this manual ................3 User manual ................3 mo-vis bv ................... 3 User manual ..................5 Warning labels ................5 Support, scrapping & recycling ..........8 Limited liability ................9 Intended Use ................9 Features .................. -
Page 3: Other Languages
Other languages CS: Tito příručku naleznete v češtině na našich webových stránkách. DA: Du kan finde denne manual på dansk på vores websted. DE: Auf unserer Website finden Sie diese Anleitung in Deutsch. EN: You can find this manual in English on our website. ES: Este manual está... -
Page 4: About This Manual
About this manual User manual Thank you for choosing a mo-vis product! This manual contains useful and important information about your device. Please read it carefully before use and store safely for future reference. Our team (or your authorized dealer) will be happy to answer your questions. - Page 5 CH-REP: SKS Rehab AG, Im Wyden, 8762 Schwanden GL, Switzerland. UK Responsible Person: QServe Group UK, Ltd., 49 Greek Street, London, WID 4EG, UK. Heavy Duty Joystick User manual...
-
Page 6: User Manual
User manual Warning labels Please read this manual, the safety instructions and warning texts carefully, in order to reduce the risks associated to the device. Our products are safe under normal and reasonably foreseeable operating conditions. NOTE: This symbol indicates general notes and information. CAUTION: This symbol indicates caution for a hazardous situation that, if not avoided, could result in minor or moderate injury. - Page 7 identified. Batch code: indicates the manufacturer's batch code so that the batch or lot can be identified. Medical device: indicates that the item is a medical device. Date of manufacture: indicates the date when the medical device was manufactured. Serial number: indicates the manufacturer's serial number so that a specific medical device can be identified.
- Page 8 indicates that a medical device should not be used if the package has been damaged or opened and that the user should consult the instructions for use for additional information. CE label: indicates that the manufac- turer or importer affirms the good's conformity with European health, safety, and environmental protec- tion standards.
-
Page 9: Support, Scrapping & Recycling
This ensures you are provided with the correct information. Spare parts and accessories Contact mo-vis or your dealer for more information about spare parts and accessories. Scrapping & recycling The expected lifetime of this device is 5 years. -
Page 10: Limited Liability
Limited liability mo-vis accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings and instructions in this manual. CAUTION: This product should only be installed by a qualified service engineer. -
Page 11: Features
• is a large format, extremely durable, proportional joystick for all-round heavy duty use • can be used as a hand or foot operated joystick • has been developed for users with excessive force (spasticity, dystonia...) Features The Heavy Duty Joystick is: •... - Page 12 Avoid hitting obstacles during driving. WARNING: When the LED light flashes and/or after every incident with the wheelchair or the mo-vis device, contact your dealer immediately to perform a functional test. LED status The illumination of the LED on the joystick interface indicates the operational status of the joystick.
-
Page 13: Parts And Accessories
Error Errors Something went wrong Parts and accessories Package The Heavy Duty Joystick package consists of: EXAMPLE P002-73 HEAVY DUTY P002-77 HEAVY DUTY JOYSTICK OMNI JOYSTICK R-NET Heavy Duty Joystick set Heavy Duty Joystick with integrated SUB set with integrated R-... - Page 14 P002-73 HEAVY DUTY P002-77 HEAVY DUTY JOYSTICK OMNI JOYSTICK R-NET bolts for mounting bolts for mounting D-P002-73-70-MX Heavy Duty Joystick User Manual D-P002-73-70-M1 Heavy Duty Joystick Installation Manual Accessories For mounting and further personalization, the following accessories are available: EXAMPLE...
- Page 15 In case of an error, the LED light will flash. See the Installation Manual for more information. Spare parts Spare parts and accessories must be ordered by the dealer at mo-vis bv. Always mention the product code of the desired item. Heavy Duty Joystick User manual...
-
Page 16: Qualifications
Qualifications CAUTION: Only a qualified service engineer may install the device. CAUTION: An incorrect programming of the wheelchair or device electronics, may cause damage to the devices or injury to the user. First time use CAUTION: A qualified service engineer should assist during first time use of the device and make sure that all functions are clear to the user, including what to do in case of problems or doubt. -
Page 17: Warnings And Limitations
Let the handle dry before putting it back on. • If the handle is damaged, worn out or remains dirty, please contact your authorized dealer or mo-vis to replace it. Warnings and limitations NOTE: This product complies with the limit values for Electromagnetic... -
Page 18: Connection Options
Connection options You can connect 1 or 2 switches to the unit: • Red = power on/off Yellow = mode • WARNING: The on/off switch must be available to the user at all times. This allows to instantly stop the wheelchair in case of problems or an emergency. -
Page 19: Combinations
WARNING: Always power off the device when the user is no longer in the wheelchair to avoid unauthorized access or accidental movements. Combinations There are different versions of this device available for combination with different wheelchair electronics. Please refer to the Installation Manual of this device for more information. - Page 20 Heavy Duty Joystick User manual...
- Page 21 . Biebuyckstraat 15D . 9850 Deinze - Belgium www.mo-vis.com . contact@mo-vis.com . +32 9 335 28 60 Go to our website for more information on our products or share your experience with us via email.
