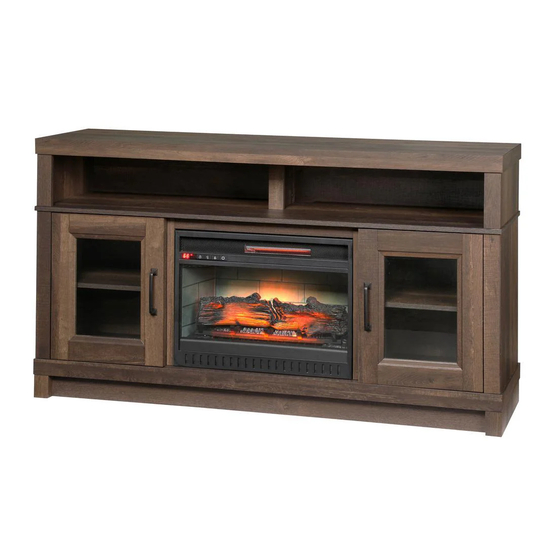

Ashmont 60 in. Media Console Infrared Electric Fireplace
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available
for your home improvement needs. Thank you for choosing Home Decorators Collection!
ASSEMBLY INSTRUCTIONS
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
HOMEDEPOT.COM/HOMEDECORATORS
1-800-986-3460
THANK YOU
Model # WSFP60ECHD-34
# WSFP60ECHD-35
# WSFP60ECHD-36
Advertisement
Related Manuals for Home Decorators Collection Ashmont WSFP60ECHD-34
Summary of Contents for Home Decorators Collection Ashmont WSFP60ECHD-34
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available...
- Page 2 Table of Contents Table of Contents ..............2 Hardware Included ............3 Safety Information ..............2 Package Contents ............4 Warranty ................2 Assembly................5 Pre-Assembly ............... 2 Care and Maintenance ............17 Planning Assembly ............2 Tools required ..............2 Safety Information Fits up to most 177.8 cm / 70 in.
- Page 3 Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Small wood dowel 39 + 1 extra Straight metal plate Cam lock 41 + 2 extra Bumper 4 + 1 extra Cam bolt 41 + 2 extra Shelf pin 8 + 1 extra...
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Top panel Lower side panel Fixed shelf Left lower partition panel Bottom panel Right lower partition panel Upper back panel Lower back panel Bottom long support Door Upper side panel Adjustable shelf Upper partition panel Middle cross bar...
- Page 5 Assembly Screwing the cam bolts Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor □ or the empty carton to avoid any scratches. Securely screw the cam bolts (CC) into the designated small holes on the top panel (A) and upper partition molding □...
- Page 6 Assembly (continued) Screwing the cam bolts Securely screw the cam bolts (CC) into the designated small holes on the fixed shelf (B) at both sides. Fully tighten □ with a Phillips screwdriver. Attaching the middle crossbar Attach the middle crossbar (Q) to the fixed shelf (B) using two small wood dowels (AA) and three cam locks (BB). □...
- Page 7 Assembly (continued) Attaching the upper side panels and the middle partition panel Glue the small wood dowels (AA) into the inner holes of the upper side panels (F) and the upper partition panel (G) □ and attach them to the top panel (A) by engaging five cam locks (BB). Installing the fixed shelf Glue five small wood dowels (AA) into the inner holes on the vertical panels (F and G).
- Page 8 Assembly (continued) Attaching the lower side panels and the lower partition panels Align and attach the lower side panels (K) and partition panels (L and M) to the fixed shelf (B) using two small wood □ dowels (AA) and two cam locks (BB) in each. Screwing the cam bolts Securely screw the cam bolts (CC) into the designated small holes on the bottom panel (C) at both sides.
- Page 9 Assembly (continued) Installing the bottom panel Glue eight small wood dowels (AA) into the inner holes on the vertical panels (K, L and M). Position the bottom panel □ (C) onto the inserted small wood dowels (AA) and fasten it in place with four cam locks (BB). Fasten the bottom panel Fasten the bottom panel (C) to the lower partition panels (L and M) using four Long wood screws (GG).
- Page 10 Assembly (continued) Combining the bottom supports Glue two small wood dowels (AA) to each bottom long support (E) at both ends. □ Combine the long supports (E) between the bottom side supports (I and J) with four cam locks. □ Attaching the assembled base Glue six small wood dowels (AA) and four large wood dowels (QQ) into the inner holes on bottom panel (C).
- Page 11 Assembly (continued) Fastening the bottom side supports Fasten the bottom side supports (I and J) to the bottom panel (C) using six long wood screws (GG). □ Attaching the corner connectors With the pilot holes as a guide, fasten the bottom supports (E, I and J) in place by attaching four corner connectors □...
- Page 12 Assembly (continued) Attaching the metal plate Flip around the previous assembly at its front edge. □ Fasten the middle crossbar (Q) to the stiles of the lower partition panels (L and M) by attaching two brackets (LL) at the □ joints, using two short wood screws (DD) in each.
- Page 13 Assembly (continued) Installing the handle Attach one handle (JJ) to the front side of each door (O) with two provided handle bolts (KK). □ Attaching the doors and bumpers Stand the assembled unit upright. □ Pick up one door (O) and attach the extended hinge arms to the mounting plates installed on one lower side panel (K). □...
- Page 14 Assembly (continued) Installing the adjustable shelves Insert four shelf pins (NN) into the desired holes inside each side compartment. Tilt and rest the adjustable shelves (P) □ onto the shelf pins (NN). Plug the cam lock covers (OO) onto the visible cam locks to conceal the cams. □...
- Page 15 Assembly (continued) Attaching the L-shaped metal braces Using the pilot holes as a guide, align and attach two L-shaped metal braces (II) to the bottom panel (C) by screwing one □ washer head screw (EE) in each. Installing the acrylic stopper Remove the paper baking form the acrylic stopper (PP), then properly align the acrylic stopper into the cut-out on the □...
- Page 16 Assembly (continued) Installing the tipping restraint hardware WARNING: Young children can be seriously injured by tipping furniture. You must install the tipping restraint hardware with the unit to prevent the unit from tipping, causing any accidents or damage. The tipping restraints are intended only as a deterrent, they are not a substitute for proper adult supervision.
- Page 17 Care and Maintenance A touch-up pen (not included for white finish) has been provided to minimize the small nicks or scratches that may occur during assembly or shipping. To clean and care for your furniture: Use a soft, clean cloth that will not scratch the surface when dusting. □...
- Page 18 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
