NOTICE
*Please make sure that you have all parts indicated and they are in good condi�on before you
begin assembly of this item. Refer to part list and hardware list below for guidance.
*This item should be assembled on a so� surface to prevent scratching the finish during
assembly.
*This item may require periodic �ghtening.
*If you are having difficulty, our friendly Customer Care team is always here to help. Please
email customersupport@safavieh.com
PREPARATION
*Before beginning assembly of product, make sure all parts are present. Compare parts with
part contents list and hardware contents list.
*If any part is missing or damaged, do not a�empt to assemble the product.
*Es�mated Assembly Time: 60 minutes.
*Tools Required for Assembly (included): Allen Key
CARE AND MAINTENANCE
Always use felt pads under all ar�cles to prevent discolora�on or so�ening of the lacquer. Plas�c
and rubber bases on items can discolor wood. Wipe up spills immediately and avoid common
hazards such as hot dishes, harsh solvents and abrasives. Cleaning should be done with a so� lint
free co�on cloth dampened with water or furniture polish. On highly used surfaces we
recommend applying a quality paste wax which should be used on a regular basis to provide
addi�onal protec�on from scratches and spills. How o�en you apply the wax depends on how
much wear the furniture receives.
Part List
N
C
K
E
G
E
A
M
H
J
I
B
F
E
N
D
L
E
G

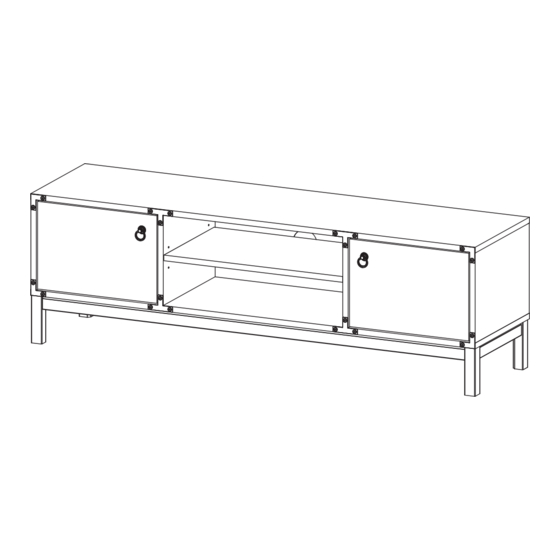

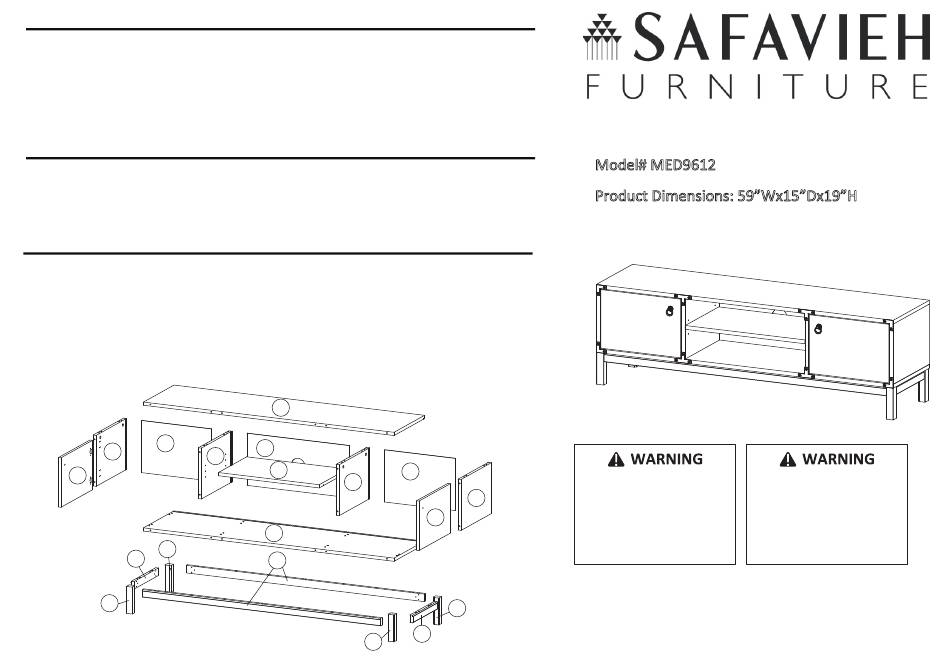

Model# MED9612
Product Dimensions: 59"Wx15"Dx19"H
This product is intended for use with a
Death or serious injury may occur
FLAT SCREEN TV ONLY
Maximum Screen Size: 65 inches
and/or video equipment furniture.
Weight Limit: 81.5 Ibs
A remote control or toys placed on
Shelf Load Limit: 30.8 Ibs
Drawer Load Limit: - Ibs
child to climb on the furnishing and
Use with heavier televisions may result
in instability causing tip over resulting in
death or Serious injury.
when children climb on audio
the furnishing may encourage a
as a result the furnishing may tip
over on the child.
