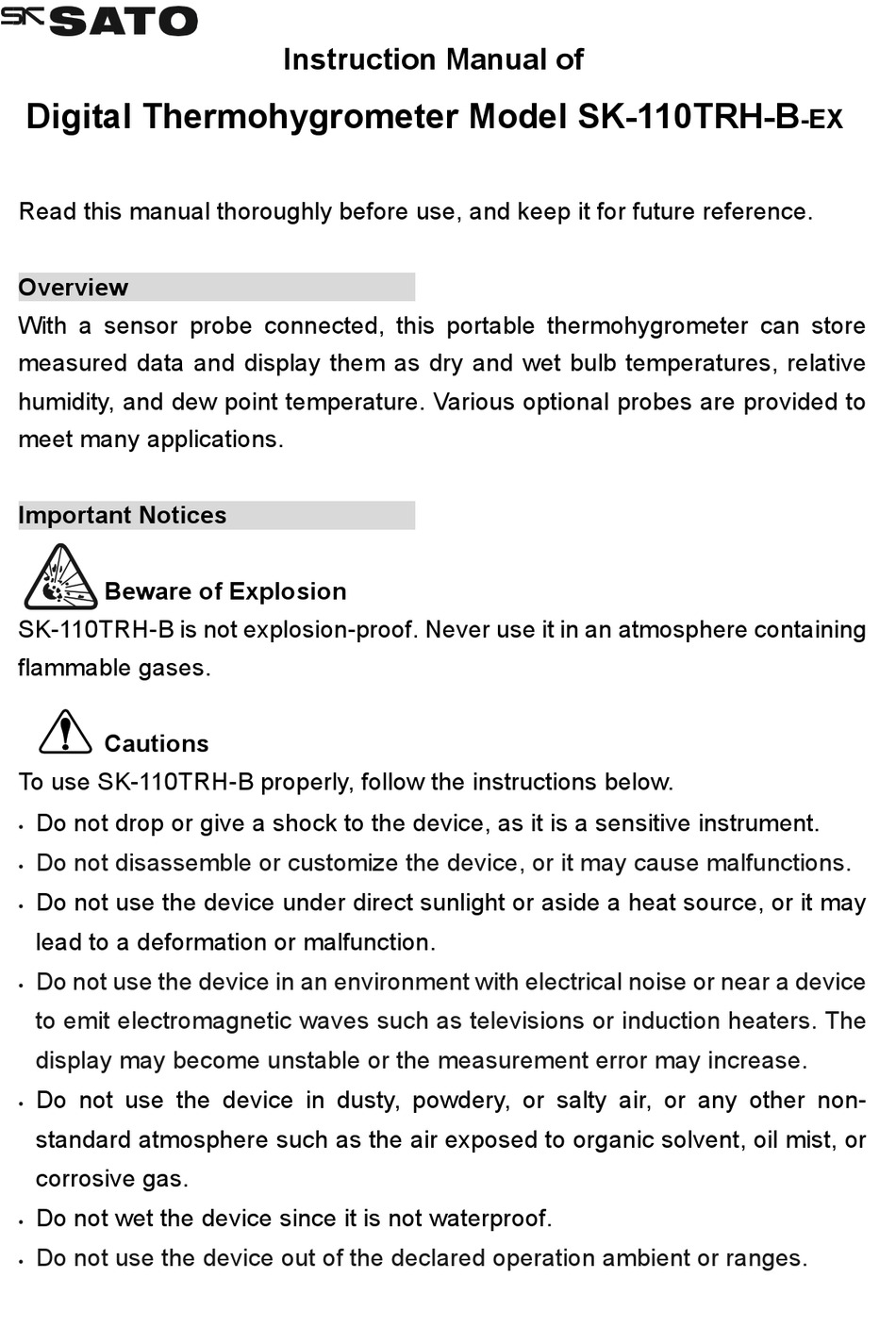

Digital Thermohygrometer Model SK-110TRH-B
Read this manual thoroughly before use, and keep it for future reference.
Overview
With a sensor probe connected, this portable thermohygrometer can store
measured data and display them as dry and wet bulb temperatures, relative
humidity, and dew point temperature. Various optional probes are provided to
meet many applications.
Important Notices
Beware of Explosion
SK-110TRH-B is not explosion-proof. Never use it in an atmosphere containing
flammable gases.
Cautions
To use SK-110TRH-B properly, follow the instructions below.
Do not drop or give a shock to the device, as it is a sensitive instrument.
Do not disassemble or customize the device, or it may cause malfunctions.
Do not use the device under direct sunlight or aside a heat source, or it may
lead to a deformation or malfunction.
Do not use the device in an environment with electrical noise or near a device
to emit electromagnetic waves such as televisions or induction heaters. The
display may become unstable or the measurement error may increase.
Do not use the device in dusty, powdery, or salty air, or any other non-
standard atmosphere such as the air exposed to organic solvent, oil mist, or
corrosive gas.
Do not wet the device since it is not waterproof.
Do not use the device out of the declared operation ambient or ranges.
Instruction Manual of
-EX
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SATO SK-110TRH-B-EX
Summary of Contents for SATO SK-110TRH-B-EX
- Page 1 Instruction Manual of Digital Thermohygrometer Model SK-110TRH-B Read this manual thoroughly before use, and keep it for future reference. Overview With a sensor probe connected, this portable thermohygrometer can store measured data and display them as dry and wet bulb temperatures, relative humidity, and dew point temperature.
- Page 2 Disclaimer We, Sato Keiryoki Mfg. Co., Ltd., have tested the device securely, however we do not guarantee its operation in all possible situations. We are not responsible for any damages caused directly or indirectly by use of the device.
- Page 3 Rear: Use this hook to mount on a wall Battery lid Strap hole Auto power off is activated when this sign is shown Display: MAX = Maximum value MIN = Minimum value Low battery DP = Dew point sign TW = Wet bulb temp. No.
- Page 4 How to Use Replacement of Batteries: To use the device for the first time, or when the low battery sign is displayed, put new batteries as per described below. 1. Turn the battery lid screw anticlockwise to loosen it and remove the lid. Be sure not to lose the packing seal on the groove.
- Page 5 Attachment of Neck Strap: Run the thin string of the neck strap through the strap hole, and then pass the other side of the strap through the ring of the string so that the strap is fixed. Remove the battery lid temporarily if it is difficult to install the strap. Connection of Probe: 1.
-
Page 6: Power Key
high temperature after doing extreme low temperature, or vice versa. It also applies when the temperature varies suddenly. 4. To record the value, press MEM key. Refer to Log Viewer to see the recorded data. The memory gets full when 200 sets of data are stored. 5. - Page 7 Menu Mode Pressing MODE key during measurement navigates to the menu mode. Within this mode, press MODE key to go to a next menu, or press INFO key to return to measurement. Keeping the device idle for 1 minute also leads to the measurement mode.
- Page 8 (3) Log Viewer: Press MODE key for three times during measurement to view recorded data with a serial number. Press OUT/ MEM/ browse data chronologically from No. 001. Long-press the same keys to fast-feed the display. (4) °C/°F Switch: Press MODE key for four times during measurement to open this menu. Press MEM/...
- Page 9 Property Information Display Press INFO key during measurement to view some property information. Each press of INFO key changes the displayed content in the following order. Keeping the device idle for 1 minute leads to the measurement mode. Serial No. Recalibrated month Current date Current time...
- Page 10 Preset Configuration: Item Value Recalibrated month (YYMM) - - - - Time (YYYY.MM.dd HH:mm:ss) 2022.01.01 00:00:00 Recorded data no. Lower Row Display Relative humidity Temperature unit Celsius Auto power off Disabled Recalibrated month is recorded once the device is recalibrated by us. Error Codes Recording is unavailable when an error code except Hi or Lo is shown.
-
Page 11: Specifications
Specifications Product name Digital Thermohygrometer Model SK-110TRH-B-EX Catalog no. 8138-00 Display range Depends on a probe connected Refer to the manual attached to each probe. Display accuracy ±0.2°C (0 to 40°C), ±0.3°C (other) ±0.2°%rh (0 to 40°C), ±0.3°C (other) Total accuracy depends on a measuring accuracy of a probe connected. - Page 12 Out-of-warranty products will be repaired for a fee. Before returning, request for our acknowledgement first. For details, contact us or a retailer from which you have purchased. SATO KEIRYOKI MFG. CO., LTD. 3-4, Kanda-kajicho, Chiyoda-ku, Tokyo 101-0045, Japan https://www.sksato.co.jp/en/ Ver. W.01...
