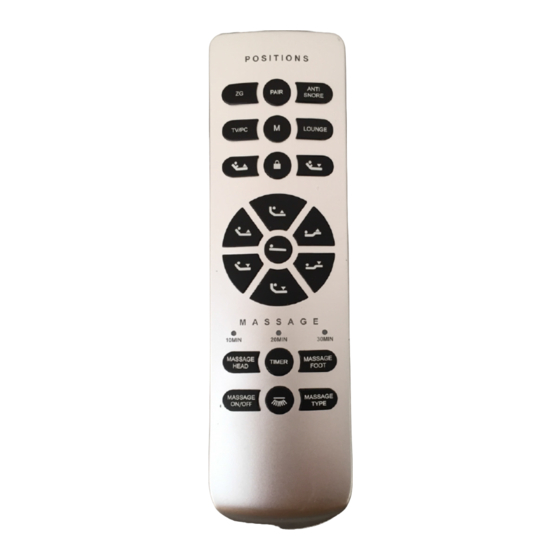

- Page 1 Issue Department：Bedding Division Date： 2017-8-15 System Instruction Author： Instruction of RF5022 Edition： Page 1 of 7 Instruction of RF5022 Figure 1 button ofremote 1 / 7 ...
- Page 2 Issue Department：Bedding Division Date： 2017-8-15 System Instruction Author： Instruction of RF5022 Edition： Page 2 of 7 Item 2.1 ZG button（button 1 in figure 2） Click the ZG button, the actuator moves to ZG position, stop when click any button during the movement;...
- Page 3 Issue Department：Bedding Division Date： 2017-8-15 System Instruction Author： Instruction of RF5022 Edition： Page 3 of 7 TV/PC Press and hold button for 5s, timer LED of remote flashes, the control box records TV/PC current position as position; When in the process of moving to memory positions, the head and foot actuators move first, then the tilt and lumbar actuators move;...
- Page 4 Date： 2017-8-15 System Instruction Author： Instruction of RF5022 Edition： Page 4 of 7 Under locked state, press and hold childlock button, red backlight of childrenlock begins to flash,after 5s, the red backlight stops flashing, remote enters into the normal working condition;...
- Page 5 Issue Department：Bedding Division Date： 2017-8-15 System Instruction Author： Instruction of RF5022 Edition： Page 5 of 7 2.16 moving in of tilt actuator（button 14 in figure 2） Press and hold TILT DOWN button,, tilt actuator moves in, stop when released; 2.17 Flat（button 16 in figure 2）...
- Page 6 Issue Department：Bedding Division Date： 2017-8-15 System Instruction Author： Instruction of RF5022 Edition： Page 6 of 7 2.22 Under bed light（button 21 in figure 2） Click the under bed light button, the under bed light switch its on/off state; After the under bed light opens, if do not manually close, it will automatically turn off after 5 minutes;...
- Page 7 JLDP.14.027.000 JLDP.05.032.000 R5.216.01.015C JLDP.10.023.000 R5.504.01.250 R5.217.01.016 R5.113.00.011 R5.413.01.005 CB.13.42.01 RF5022 FCC ID: 2AVJ8-RF5022 IC:25804-RF5022 FCC ID: PCU-CB1342 IC:21319-CB1342 R5.410.01.009 JLDQ.9.001.130C JLDQ.16.228.31 JLDQ.16.263.84 B.11964 B.15055 number Product code product name B.15055 Head Motor Foot Motor B.11964 JLDQ.16.263.84 Lumbar Motor JLDQ.16.228.31 Tilt Motor Massage Motor JLDQ.9.001.130C...
