Summary of Contents for ClearSpan PB01900R4

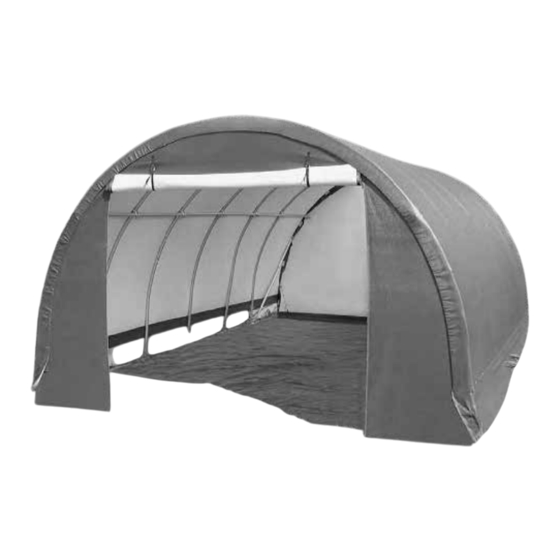

- Page 1 GARAGES & STORAGE SHEDS ™ ClearSpan ™ Round Style Mini Garage Photo may show a different but similar model. ©2008 ClearSpan™ All Rights Reserved. Reproduction is prohibited without permission. STK# DIMENSIONS PB01900R4 8' W x 8' H x 12' L...
-
Page 2: Safety Precautions
• Never erect the structure under power lines. • Identify whether underground cables and pipes are Thank you for purchasing this ClearSpan™ shelter. When present before preparing the site or anchoring the properly assembled and maintained, this product will structure. -
Page 3: Assembly Procedure
These words and phrases are common to most ends of a pipe can be inserted into couplers and the ClearSpan™ shelters and identify the different parts of straight ends of other pipes. the shelter. (Some are used in this document. Others may not apply to this particular shelter.) These terms describe... -
Page 4: Required Tools
CLEARSPAN GARAGES & STORAGE SHEDS ™ REQUIRED TOOLS Space below is reserved for customer notes. The following list identifies the main tools needed to assemble the shelter. Additional tools and supports may be needed depending on the structure, location, and application. - Page 5 CLEARSPAN GARAGES & STORAGE SHEDS ™ The following graphics and photos will help you identify the different parts and show you how they are used. (Not all parts are shown.) QH1400 10015106 CC6212 FA4482B Band Clamp T-Fitting Fabric Clip Tek Screw...
- Page 6 CLEARSPAN GARAGES & STORAGE SHEDS ™ Round Style Mini Garage OVERVIEW This section is an overview of the process for assembling your Round Style Mini Garage. For details, please see section, Assembling the Round Style Mini Garage Components. See illustration below to identify main parts of shelter.
-
Page 7: Rafter Assembly
CLEARSPAN GARAGES & STORAGE SHEDS ™ LAY OUT THE BUILDING SITE ASSEMBLING THE ROUND STYLE MINI GARAGE COMPONENTS After the site is prepared, identify the location of the NOTE: Assistance is required to assemble the mini garage. shelter corners helps to square the frame after it is assembled. -
Page 8: Frame Assembly
CLEARSPAN GARAGES & STORAGE SHEDS ™ NOTE: All clamps must be positioned as shown. Use RAFTER ASSEMBLY (CONTINUED) a piece of duct tape to keep the clamps from sliding 3. With the main rafter pipes seated at each joint and the when the rafter is set in place. - Page 9 CLEARSPAN GARAGES & STORAGE SHEDS ™ FRAME ASSEMBLY (CONTINUED) FRAME ASSEMBLY (CONTINUED) 3. Position an inside rafter from the end rafter using an 8. Move to the lower end of the rafters and position the on-center, rafter-to-rafter spacing of 4'. (Another person purlin 4-6'' up from the finished grade.
- Page 10 CLEARSPAN GARAGES & STORAGE SHEDS ™ FRAME ASSEMBLY (CONTINUED) Strut Assembly Procedure: 1. After the rafter assembly is complete, verify that the 11. Finish each purlin with a 73.5'' pipe and use the final band clamps are in the proper locations. See diagram end rafter to complete the assembly.
- Page 11 CLEARSPAN GARAGES & STORAGE SHEDS ™ SQUARE THE ASSEMBLED FRAME END CONDUITS ASSEMBLY Gather the Parts Gather the Parts: • Measuring tape • Pipe 1.315'' x 25.5'' Plain (2). Cut to 23”. • Tek Screws • Pipe 1.315'' x 75'' Swaged (2) •...
- Page 12 CLEARSPAN GARAGES & STORAGE SHEDS ™ PREPARE END PANELS ATTACH END CONDUIT ASSEMBLIES CAUTION: To prevent damage, do not install end 1. Verify the end conduits of end panels are inserted into panels on a windy day. the T-fittings correctly.
- Page 13 CLEARSPAN GARAGES & STORAGE SHEDS ™ ATTACH END PANEL ASSEMBLIES PREPARE MAIN COVER Gather the Parts: Gather the Parts: • End Panel Assemblies • Ratchets • Fabric Clips (Divide quantity in half.) • Pipe 1.315'' x 75'' Swaged (2) •...
- Page 14 CLEARSPAN GARAGES & STORAGE SHEDS ™ PREPARE MAIN COVER (CONTINUED) 2. With all ropes attached to the cover conduit, lift the conduit and carry the cover toward the base of the 3. After assembling the cover conduits, locate the main frame.
- Page 15 CLEARSPAN GARAGES & STORAGE SHEDS ™ ATTACH MAIN COVER (CONTINUED) 11. Thread the plain strap ends into the ratchet and slightly tighten. 7. Thread the D-ring strap through the slit in the cover pocket, wrap it around the cover conduit, and attach NOTE: It may be necessary to remove excess strap if it the strap assembly to the rafter.
- Page 16 If the shelter is moved, inspect all parts and connections before reassembling. • For replacement or missing parts, call 1-800-245-9881 for assistance. NOTE: With the exception of Truss Arch buildings, ClearSpan™ shelters and greenhouses do not have any tested loading criteria. Revision date: 06.11.08...
- Page 17 CLEARSPAN GARAGES & STORAGE SHEDS ™ QUICK START GUIDE 8' Wide Round Style Mini Garage Frame shown may differ in length from actual frame. Revision date: 06.11.08...
- Page 18 CLEARSPAN GARAGES & STORAGE SHEDS ™ Revision date: 06.11.08...
- Page 19 CLEARSPAN GARAGES & STORAGE SHEDS ™ Revision date: 06.11.08...
- Page 20 CLEARSPAN GARAGES & STORAGE SHEDS ™ Revision date: 06.11.08...
- Page 21 CLEARSPAN GARAGES & STORAGE SHEDS ™ Revision date: 06.11.08...
