Kwikset 44594/01 Installation Instructions

Do not use harsh chemicals or
solvents to clean your lock.
Mechanical lock
Use a damp cloth to wipe away
any excess dirt or debris.
LEVER - PRIVACY & PASSAGE
WITH 6-WAY LATCH
44594 / 01
CP

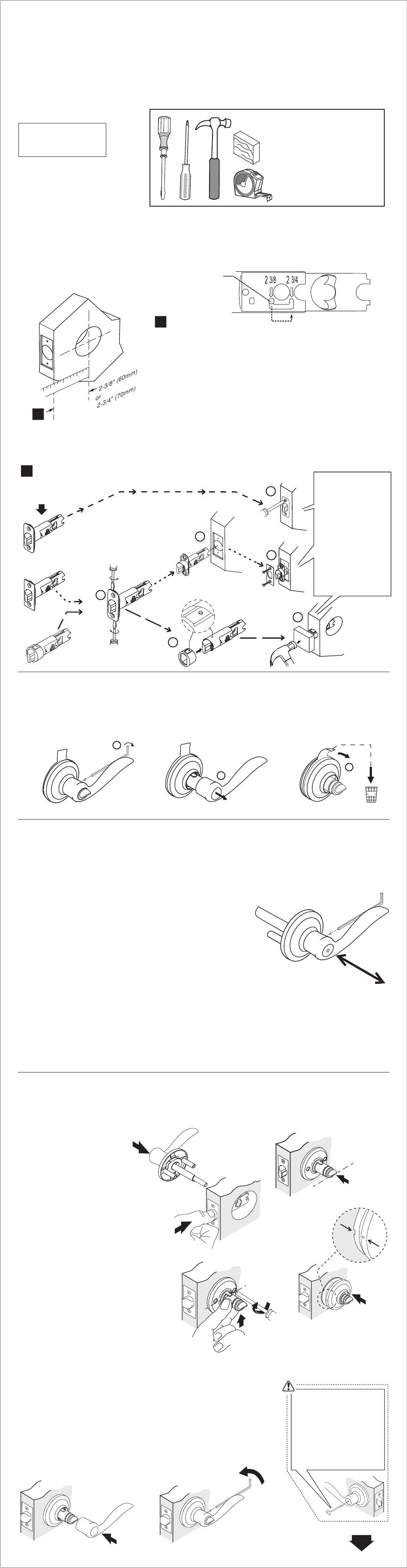

PREPARE LATCH AND INSTALL

1
R E
A S U
M E
A
OPTIONS
C
2

REMOVE LEVER AND COVER FROM LEVER ASSEMBLY

3
FOR LEFT HAND DOORS - ONLY
Switch lever on exterior assembly as follows.
1. Insert wrench into set screw hole and loosen set screw.
2. Remove lever, replace with other lever and retighten set screw.
4
INSTALL EXTERIOR & INTERIOR ASSEMBLIES
Push latch to insert lever.
Connect assemblies by installing the mounting screws.
Push up on assembly until screws are level, before
fully tightening.
Install lever.

IMPORTANT INSTALLATION INSTRUCTIONS

Electronic lock
Use a damp cloth on the lock's
exterior to wipe away any excess
dirt or debris. Use a dry cloth to
clean interior components.
B
If backset of door measured 2-3/4" (70mm), adjust latch as follows: Grasp the spring pin and
move it to the 2-3/4" slot.
1
2
1
2
1
Tighten set screw to secure lever.
6
Pin
1
2
3
2
4
7

Required tools

Make sure that slant of latch bolt
faces in the direction that the door
closes.
3
3
TRASH
3
5
Snap on cover.
Keep handy for emergency unlocking.
Continued
