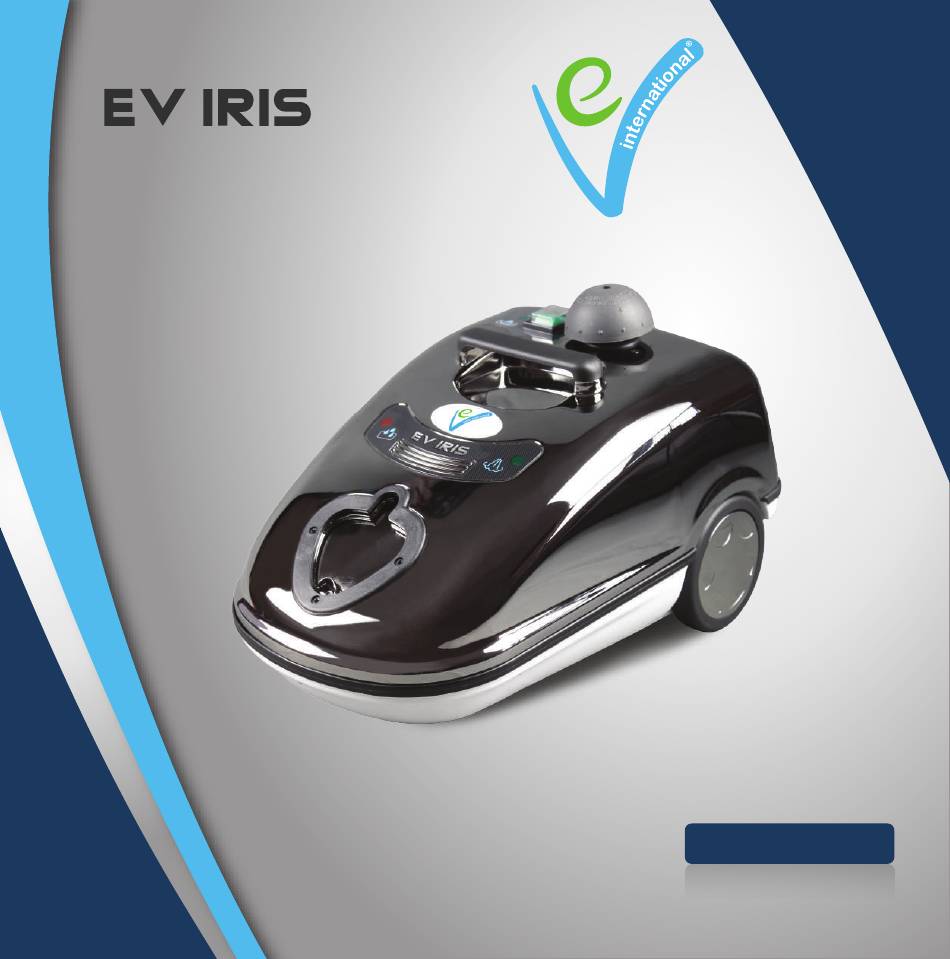

Page 1 User Guide EN...
Page 2 We deeply appreciate your business. Serving you is our highest priority. We are available for your questions at any time. Please Contact: We wish you many happy moments with your EV IRIS! From the whole team of E V International Ltd.
Page 3: Table Of Contents
Content Theme Page Introduction Scope of supply Safety regulation Technical data Before putting into operation Filling with water Connecting attachments Cleaning brushes Directions Cleaning and maintenance Legal aspects Maintenance...
Page 4: Introduction
Introduction Your EV IRIS is a result of longtime experience and exten- EV IRIS is designed for cleaning with dry steam. The steam sive technological research. and high temperature easily remove stains, hard water We have created EV IRIS for you as a perfect device spots, stubborn dirt, grease etc.
Page 5: Scope Of Supply
Scope of supply Steam hose 2 Extension pipes Triangular brush Triangular pad Universal brush Rectangular pad Point nozzle with metal brass tip Funnel for ﬁlling Round copper brush Ø 30 mm Round nylon brush Ø 30 mm Round stainless steel brush Ø 30 mm...
Page 6: Safety Regulation
Safety regulations Strict compliance with the instructions and maintenance You can see the power consumption of the appliance recommendations is at the basis of the intended on the manufacturing label on the bottom of the appli- conditions of use. In improper use or non-compliance ance.
Page 7 Safety regulations ▹ ▹ In case of danger of explosion using the appliance This appliance is available with several safety systems is forbidden. that can be changed only by an authorized service. ▹ ▹ Do not use the appliance within walking distance of Never direct the steam jet at people or animals.
Page 8: Technical Data
Technical data - EV IRIS ▹ Power supply 110 - 120 V or 220 - 240 V - 50 / 60 Hz ▹ Max. total working power 1700 W ▹ Boiler volume 2.7 I (0.7 gal) ▹ Maximum pressure* 5.5 bar (79.7 Psi) ▹...
Page 9: Before Putting Into Operation
Before putting into operation Fig. 2 Fig. 3 А EV IRIS (Fig. 2) Handle (Fig. 3) Steam level adjustment A: Main Switch B: Steam ready indicator C: Power grid connection indicator D: No water in the boiler indicator Off Position...
Page 10: Filling With Water
How to connect Fig. 5 ▹ Completely unwind the power cord. ▹ Plug into a power socket. (Fig. 6) EV IRIS cannot be used for more than 3 hours continuously. Fig. 6...
Page 11 Reﬁlling with water How to reﬁll: After Cleaning When indicator D (Fig. 2) lights up EV IRIS must be reﬁlled ▹ Always switch off the Main switch. with water. If this happens the boiler heating stops auto- ▹ Release the pressure from the boiler. The safety cap matically.
Page 12: Connecting Attachments
Fitting the accessories (Fig. 8-9-10-11) Fig. 8 Lift the socket cover on the EV IRIS. Insert the steam hose plug (H) into the socket of the unit. (Fig. 8). Check that the plug (H) is correctly inserted (pull) (Fig. 8).
Page 13: Cleaning Brushes
Cleaning Brushes Triangular and universal brushes Fig. 10 The triangular brush is usually used to clean small, deli- cate and irregular surfaces. The steam is distributed di- rectly on the bristles. (Fig. 10) It can also be used with the triangular pad and a thermoﬁber cloth.
Page 14: Directions
Directions Accessories Amount of steam Absorbers Medium, large amount of steam Depositions of grease are * Accessories, which are difﬁcult to remove. not included in the kit. To obtain optional accessories, Use the point nozzle to clean the grease from the ﬁlters. Clean please, contact your autho- the absorber from the outside depending on the access rized sales representative of...
Page 15 Directions Accessories Amount of steam Small, medium Animal cages amount of steam Baskets for dogs and cats, For removal of old and cages for birds, cages for stubborn stains you must hamsters and more. repeat the procedure. Clean the cages with the point nozzle and attached round With the steam you nylon brush.
Page 16 Directions Accessories Amount of steam Varnished surfaces Small amount of steam Varnished surfaces can be Clean the surface quickly. cleaned very well. Do not hold the steam jet at one point. Use only Treat the surfaces with a small amount of steam at 10-15 cm./ small amount of steam.
Page 17 Directions Accessories Amount of steam Metal Small, medium amount of steam Stainless steel, anodized aluminum, perforated Use small amount of steam sheet, brass and others. for less humidity on the metal. Depending on the size of the surface choose the point nozzle or the triangular brush (then polish with the thermoﬁber) or the triangular brush with thermoﬁber strained on it.
Page 18 Answer: When used properly - Yes, it does not cause any damage to the flooring! EV IRIS is characterized with extremely dry steam. Only the wet steam could carry the temperature too fast and so it would damage the surface.
Page 19 Directions Accessories Amount of steam Radiators Small, medium, large amount of steam There are smooth and ribbed radiators. Put behind and under the radiator an old cloth. Dust Clean smooth radiators with the triangular brush with is collected even better thermoﬁber strained on it.
Page 20 Directions Accessories Amount of steam Rattan Small, medium, large amount of steam Cleaning the dust from rattan furniture and knitted Keep a cloth behind armchairs is difﬁcult. the braid to absorb the deposited dust. Treat knitted furniture with the point nozzle and little steam and then wipe with thermoﬁber.
Page 21 Directions Accessories Amount of steam Car windows Medium amount of steam During rain deposition of silicone and dirt causes the Clean windows are safe Use the point nozzle and then rub with thermoﬁber. Keep a formation of lines. The result windows.
Page 22 Directions Accessories Amount of steam Car upholstery Small amount of steam Different materials are Move the triangular brush used for car upholstery. So several times briefly over please do a test cleaning the surfaces. Regular on a hidden place maintenance leads to (for example on the long-term result.
Page 23 Clean your tiles with the universal brush with strained well with your EV IRIS. thermoﬁber. Select a small amount of steam, so tiles can dry faster. For stubborn stains you can process with a large amount of steam and a nylon brush.
Page 24: Cleaning And Maintenance
Cleaning and maintenance ▹ Always pull out the power cord from the grid before Do not use any chemicals for cleaning of limescale, cleaning and maintaining the appliance. during normal operation; ▹ Carrying out routine checks of inclusion items and The following operations must be carried out by compe- electronics of the device by the employees of our tent and trained professionals!
Page 25: Legal Aspects
Legal aspects This user guide contains the information necessary According to Art.13 of the Law enforcement No 151 of for correct use, proper handling and skilled technical July 25, 2005 Implementation of Directives 2017/2102/ support of the machine. UE, 2012/19/UE for reduction of the use of hazardous substances in electrical and electronic equipment and Knowledge of and compliance with this guide is a removal of waste.
Page 26 Issued:2010/03/01 (R2014) Ed:7 EN 55014-1:2017 ▹ EN 55014-2:2015 ▹ EN 61000-3-2:2014 ▹ EN 61000-3-3:2013 and meets the next harmonized standards: 2014/35/UE ▹ EN 60335-2-54:2008+A11:2012+A1:2015 ▹ EN 60335-1:2012+AC:2014+A11:2014+A13:2017+A1:2019 ▹ +A2:2019 + A14:2019 + A15:2021 EV IRIS + SANIX + EV H Silver Bio...
Page 27: Maintenance
Maintenance...
