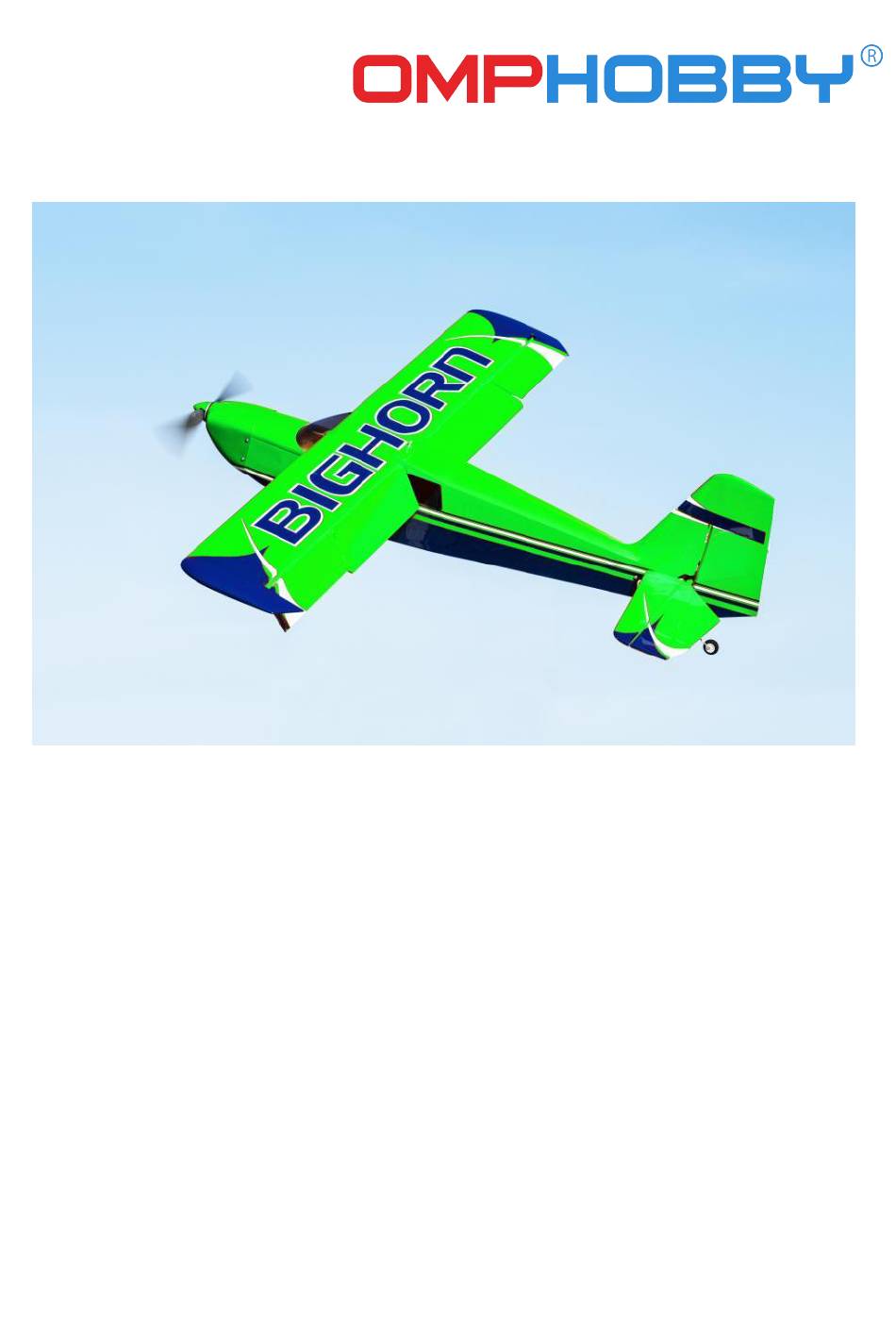

Page 1

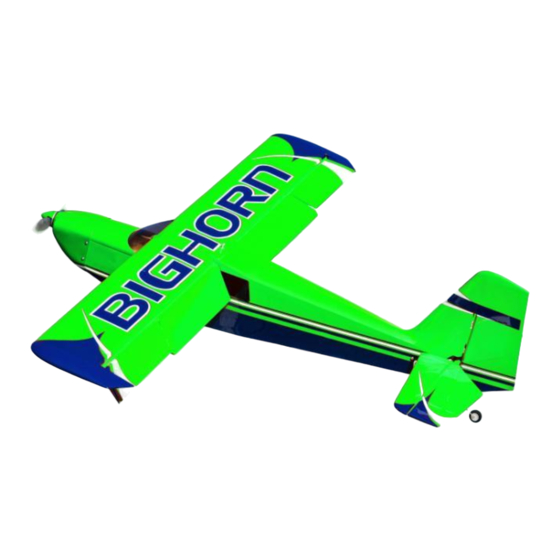

Global Professional RC Model Brand Installation Manual 49” Bighorn ARF version Zhuhai Edge Smart Drive Technology Co., Ltd. www.omphobby.com...
Page 2
▢ WingSpan: 1250mm(49in) Full Length: 1040mm(41in) Flight Weight: 1.55kg The Center of Gravity Approx. 58-66mm (CG): Wing Area: 34.67d㎡ Wing Load: 44.7g/d㎡ Wing Angle of Incidence: 1.5° Motor Thrust Angles: Down 2° & Right 4° Pack Dimension 101*29*23 (L*H*W)cm Gross Weight: 6.65KG Servo: OMPHOBBY SG5 17g *6 : (Aileron*2,Flap*2,Elevator*1, Rudder*1) Electric Power (Recommended): Motor: Sunnysky 2820 , ESC: 40A, Propeller: Eolo 13x7E/12x6.5E, Lipo battery:3S/4S 2200-2600mah Recommended Settings of Dual Rates and Exponentials of Control Surfaces Low rate Low rate exp High rate High rate exp Aileron Elevator Rudder Flap ...
Page 3
Ø Package contents (ARF version) Servos Assembly 1. Carefully locate the slots which have been made on aileron,flap, horizontal tail and vertical tail, lightly cut through the covering but not into the balsa sheeting; Insert 2mm inner hexagon screwdriver into the slots to make sure the glue inflow into the slots to secure the control arms. 2. Use sand paper to roughen the root of control arms. Try to insert it into the mounting slot to adjust the position at first, then take it out, apply glue to the slot and the root of the control arm insert it into the slot to secure it. ...
Page 4
3. Pull out the white polyester thread from the servo holes with tweezers,tie up with the servo connector. 4. Find the other head of white polyester thread from wing side, pull it until servo is placed in servo hole. 5. Use screwdriver to tighten the screws to secure the servos. 6. Secure servo arms and control arms with ball head pull rod (After the glue is dried), put the cup head hexagonal screw, gasket, ball head on servo arm, secure it with iron pliers, adjust the ball head pull rods to proper length. 7. Secure screw, washer, ball head to control arm, check the degrees between servo arms and control arms. 8. Install elevator servos in the similar way.
Page 5
Elevator and Vertical tail Assembly 1. Align the flat tail slot with the fuselage slot and clip it into the fuselage 2. Insert the carbon tube to ensure that the flat tail is parallel to the carbon tube, use 502 dispensing and fixing 3. Insert vertical tail hinge into fuselage hinge seam 4. Ensure that there is 1 ~ 2mm clearance between the fuselage and the vertical tail,use 502 dispensing and fixing...
Page 6
Main Landing gear and tail wheel set Assembly Align the landing gear according to the hole position and tighten the three screws, install the wheels as shown As shown in the picture, the screw should be on the central axis to install the tail wheel set Cowl and Engine Assembly Ø Motor Installation 1. Put the screws into motor mount and put aluminum columns to the other side of screws. 2. Apply glue to the screws and install motor to motor holder.
Page 7
Ø ESC Installation 1. Attach the connected ESC to ESC holder with double‐sided tape and Secure with cable ties. 2. Tie the wires of ESC and motor with fastening strap. 3. Connect the ESC and motor wires. Ø Cowl and Propeller Installation Tighten the propeller onto the motor shaft as shown in the figure. Make sure the spinner's back plate is flush with the propeller base. Tips: Installaon sequence: aluminum alloy base → propeller → gasket → nut → propeller cover → two cross screws...
Page 8
Guarantee The KAVAN Europe s.r.o. products are covered by a guarantee which fulfils the currently valid legal requirements in your country. If you wish to make a claim under guarantee, please contact the retailer from whom you first purchased the equipment. The guarantee does not cover faults which were caused in the following ways: crashes, improper use, incorrect connection, reversed polarity, maintenance work car- ried out late, incorrectly or not at all, or by unauthorised personnel, use of other than genuine KAVAN Europe s.r.o.
