ORANE510
MOTOR DRIVE
EN
WITH PIVOTING ARMS
V3
For 2-panel swing gates
Ref. 114201
Thank you for purchasing an AVIDSEN automatic gate opener.
This document is a quick start guide detailing the main installation steps as well as the equipment required. To perform the installation, please
download the installation manual at the following address: www.avidsen.com
Warning: The safety instructions and installation instructions can be found in the installation manual. Follow all these instructions, as an
incorrect installation can cause serious injuries.

1. DESCRIPTION

1 2
x 1 x 1
9 10 11 12 13
x 4 x 2 x 4 x 4
1

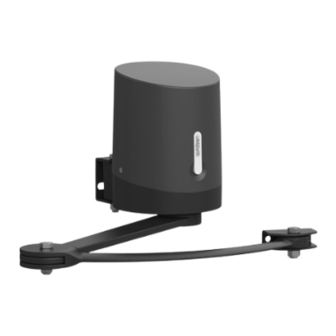

Main motor with electronic card
2
Secondary motor
3
Remote control
4
Flashing light and screws
5
Rear arm
6
Front arm

2. EQUIPMENT REQUIRED (NOT SUPPLIED)

The tools and screws required for the installation must be in good condition and compliant with applicable safety standards.
1 drill
3 4
x 2 x 1
14 15 16 17
x 4 x 6 x 4 x 4 x 4
7
Post mounting bracket
8
Gate mounting bracket
9
M12 – L40 screw
10
M8 – L25 screw
11
M10 – L90 screw
12
M8 CHC – L30 screw
1 flat head
screwdriver
1 Phillips screwdriver
Flashing light Motor
3m cable 8m cable
2 x 0.5mm 2 x 1.5mm
2 2
4 4 5
x 2 x 2 x 2
18 20 21 21
x 4 x 6 x 1
19
x 2
13
M8 washer
14
M8 spring washer
15
M12 locknut
16
M10 nut
17
M10 spring washer
18
M10 washer
1 pencil 1 x 13mm spanner
1 spirit level
1 measuring tape
attachment of the
Photocells attachment of the
brackets on the gate:
Choose a screw/nut
system appropriate
for the thickness of
10m cable the gate. There are 4
attachment points
4 x 6/10
6 7
x 2 x 2
21 21 22
x 6 x 6 x 4 x 1
19
M8 washer oversized
20
M10 - L120 fastening pin
21
Photocells and screws
22
Allen key
23
M12 washer
1 x 19mm box spanner
and 1 x 13mm box spanner
motors
onto the pillars
8
x 2
23
x 4
