DRAIN PAN HEATER [KEH094A41E]
INSTALLATION MANUAL
Safety Considerations
Safety Considerations
Give this installation manual to the user when installation
is completed.
• Read these Safety Considerations carefully to ensure
correct installation.
• After completing the installation, make sure that the unit
operates properly during the startup operation.
• All phases of the field-installation, including, but not limited
to, electrical, piping, and safety, must be done in
accordance with manufacturer's instructions and must
comply with national, state, provincial, and local codes.
• This product is a heater designed to melt snow that is
blown into the product from the outside to prevent the drain
pan of the outdoor unit from freezing.
• Install the product with a snow-break hood on a high stand
if this product is used in heavy snow areas.
• Meaning of DANGER, WARNING and CAUTION symbols:
DANGER
: Indicates an imminently hazardous
situation which, if not avoided, will result
in death or serious injury.
WARNING
: Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION
: Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury.
It may also be used to alert against
unsafe practices.
DANGER
• Do not touch the heater unit without wearing gloves.
The temperature of the heater unit will become high when
the heater is turned on.
Touching the heater unit with bare hands will result in burns
or injury.
Accessories
Accessories

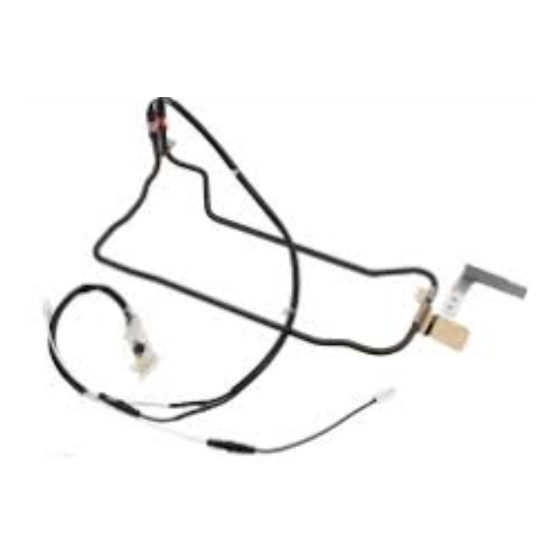

A Drain pan heater
Cable tie
C
WARNING
• Only qualified personnel must carry out the installation work.
Installation must be done in accordance with this
installation manual.
Improper installation may result in electric shock, fire, or
equipment damage.
• Use only specified accessories and parts for installation work.
Failure to use specified parts may result in electric shock,
fire, the product falling, or equipment damage.
• Before touching electrical parts, turn off the unit.
• Use specified wires. Connect and fix the wires so that the
wires will not put improper force on the terminal junctions.
Wires connected or fixed improperly could result in terminal
overheating, an electric shock, or fire.
• When wiring and connecting the indoor and outdoor units,
carefully arrange the wiring so that they will not put
improper force on the structures.
Install covers over the wires. Incomplete cover installation
could result in terminal overheating, an electric shock, or fire.
CAUTION
• Wear protective gloves at the time of installation.
Touching the suction mouth or aluminum fin of the outdoor
unit may result in injury.
• Do not install the product in places where there is danger of
exposure to inflammable gas leakage.
If the gas leaks and builds up around the unit, it may catch fire.
• Do not grab the top plate of the outdoor unit carelessly
when removing the top plate.
The sharp edge of the top plate may cause injury.
• Do not install the outdoor unit in places where small
animals may nest in the outdoor unit.
If small animals intrude and touch the internal parts of the
outdoor unit, the outdoor unit may malfunction, generate
smoke, or ignite.
Advise the user to keep the place clean.
• Do not touch the heater unit with bare hands.
The temperature of the heater unit will become high when
the heater is turned on.
Touching the heater unit with bare hands may result in
burns or injury.
B Screw M4 × 1/2" (M4 × 12mm)
1
D Installation Manual
1
3P647274-1 M20B237
